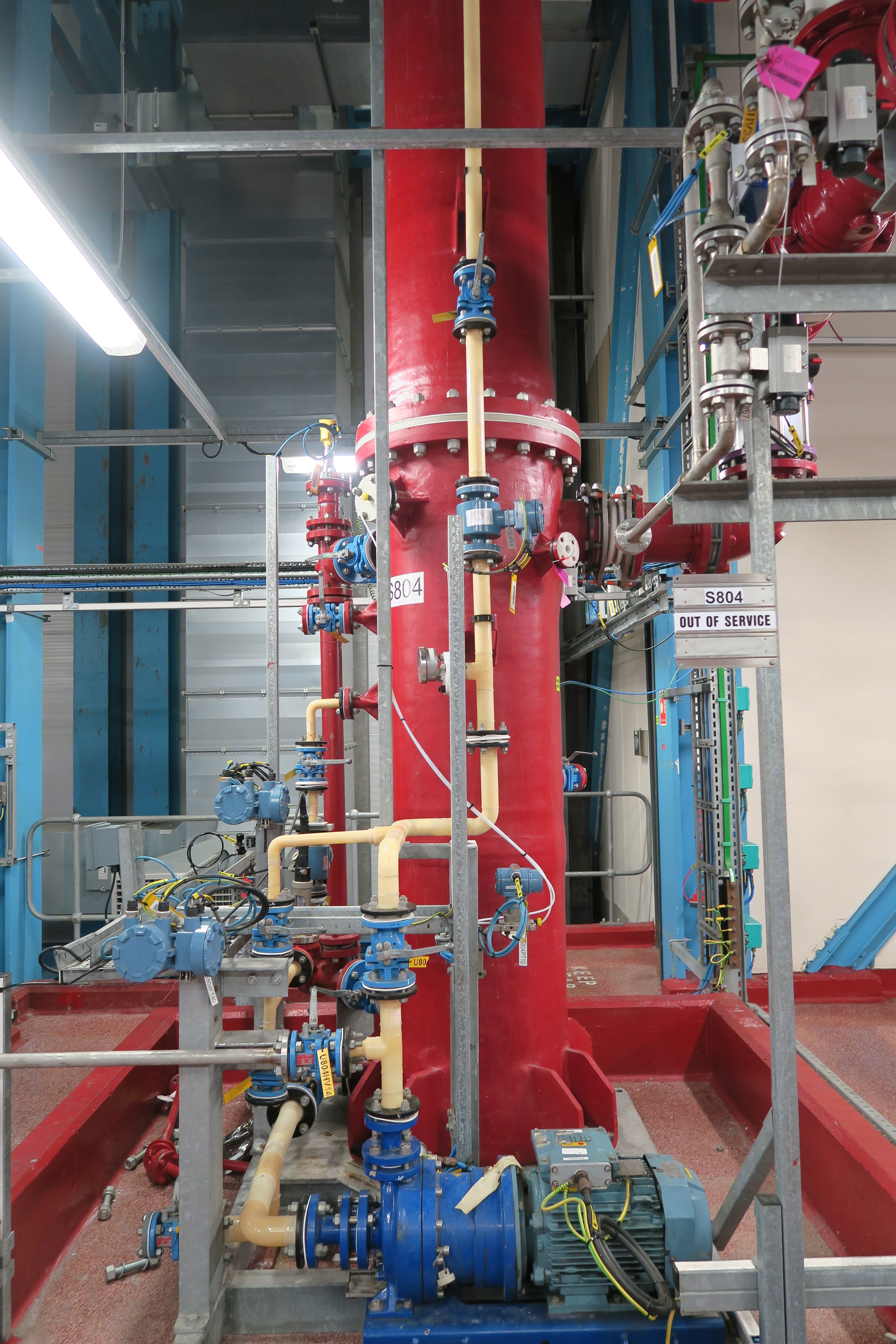

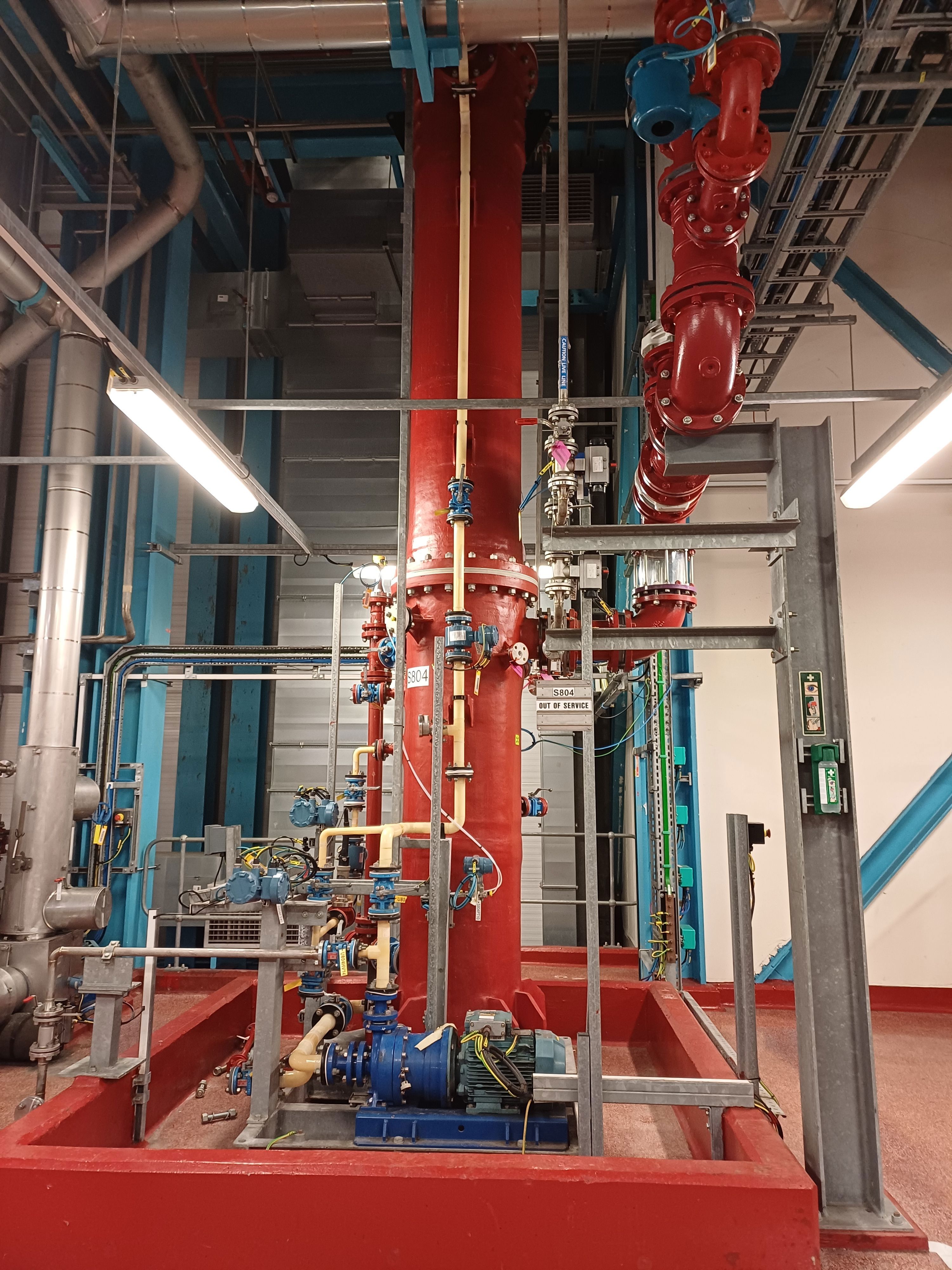

Name: Lined Plasticon Scrubber
Brand: Plasticon
SKU: 243169

Overview

Type:

Scrubber

Manufacturer:

Plasticon

Condition:

Used

Material:

Halar Lined

Capacity

Air Flow Rate:

1,250 m3/h (736 CFM)

Dimensions

Height:

5,800 mm (228.3 in)

Width:

0.6 m (1.97 ft)

Other Specifications

Pressure:

3.5 bar (50.8 psi)

Temperature:

65 °C (149 °F)

Packing:

Yes

Packing Type:

Lanpack

Packing Amount:

710 L (25.1 ft3)

Recirculation Pump Details:

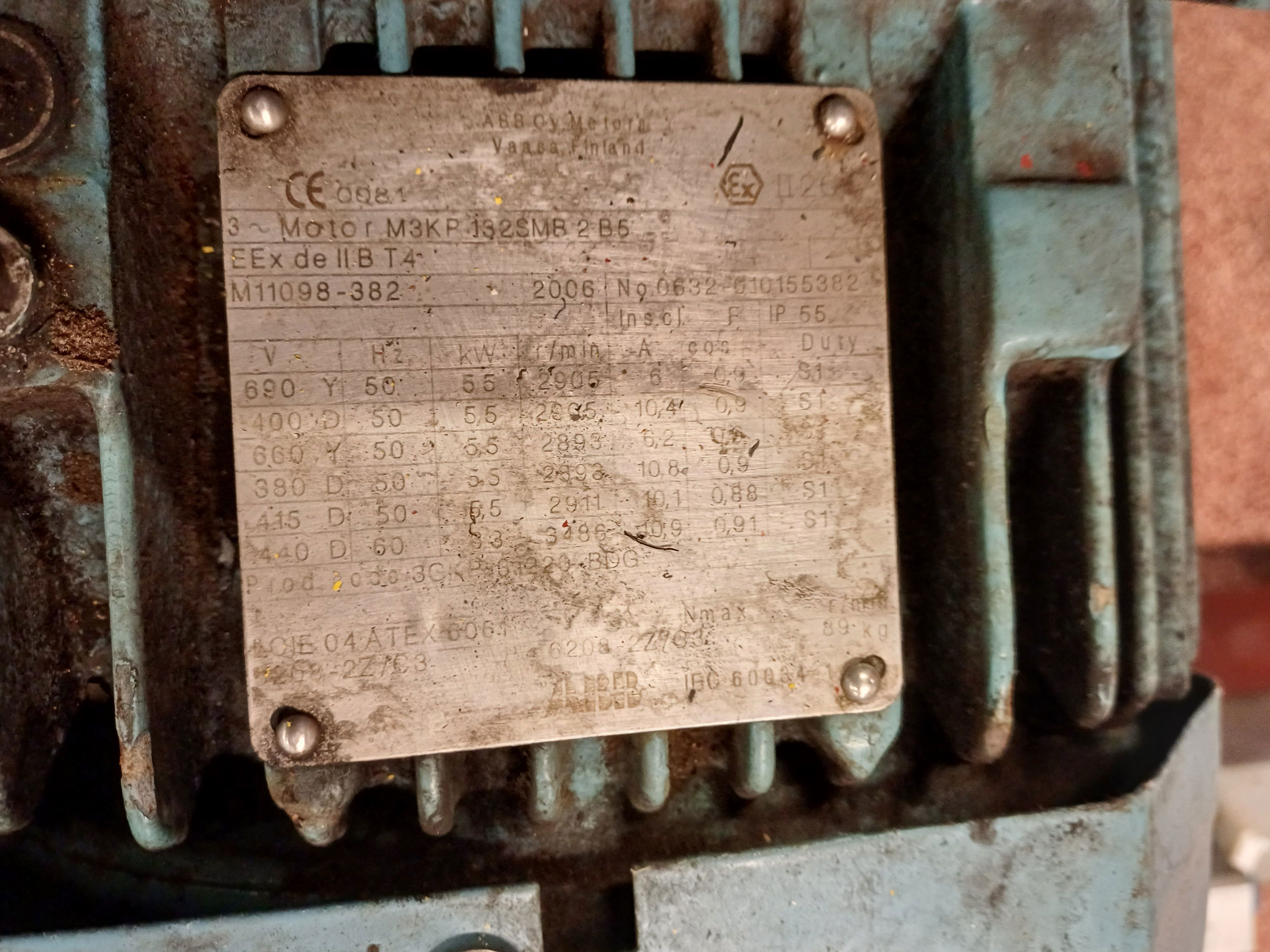

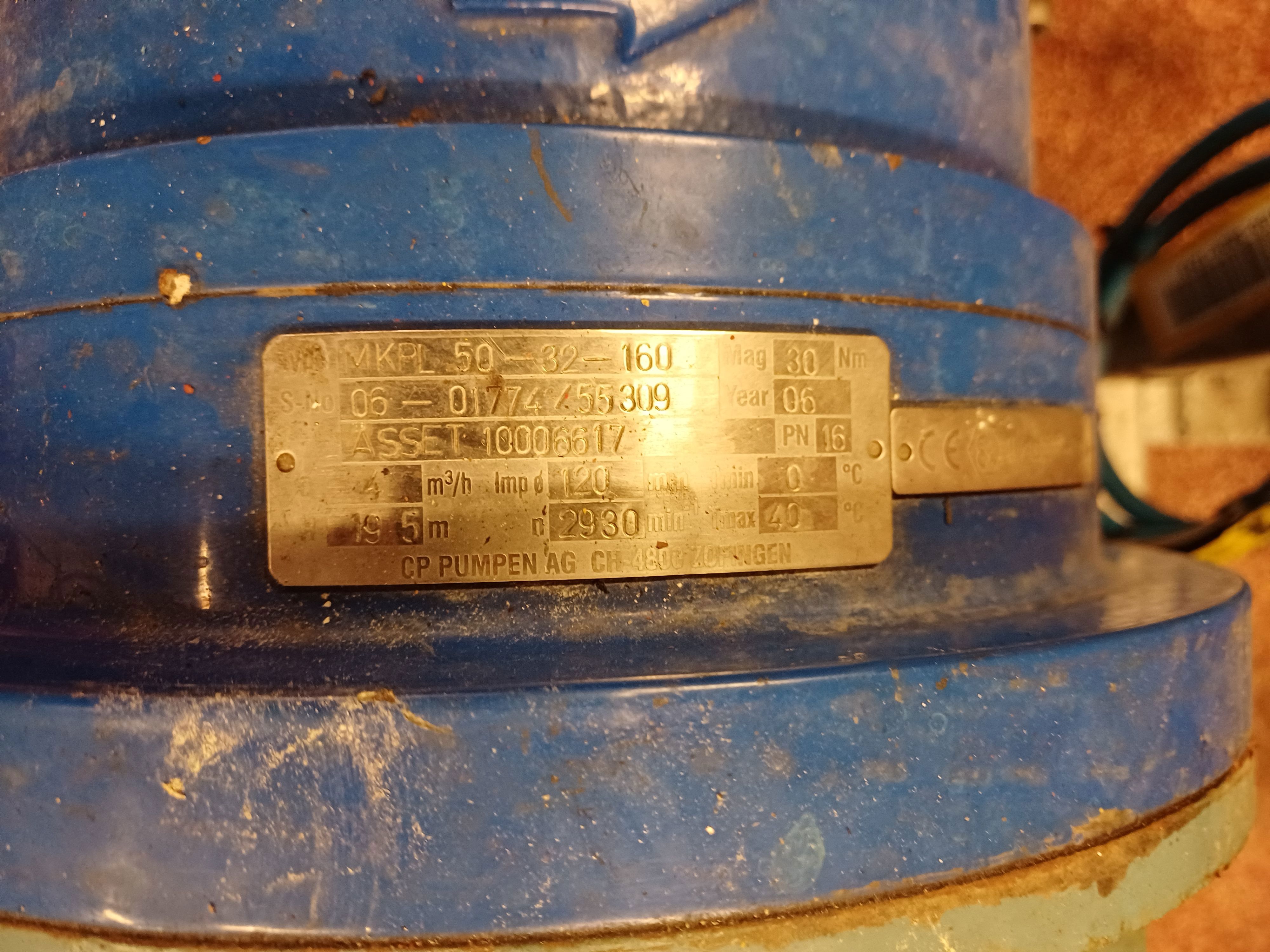

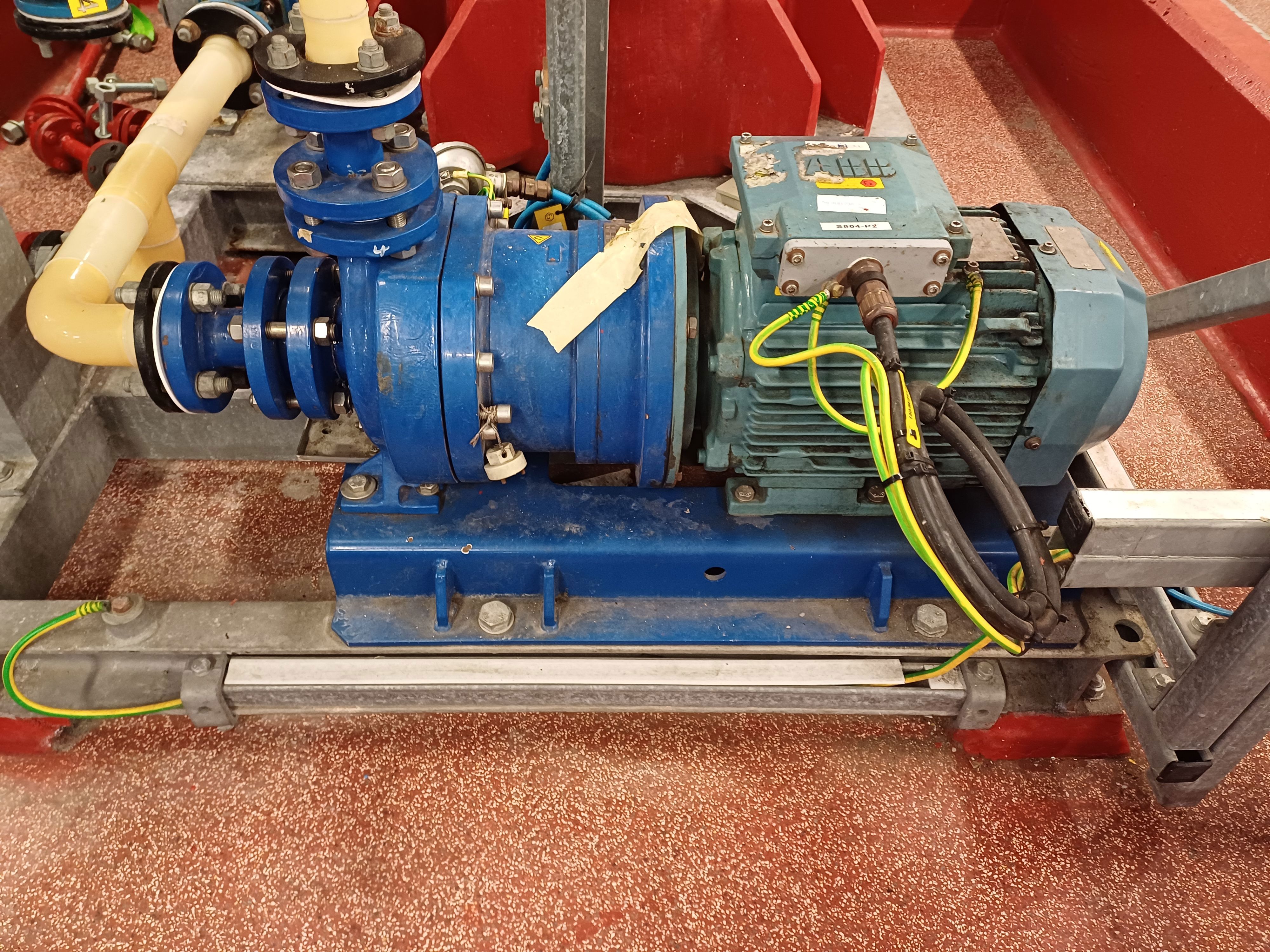

4m3/hr @ 19.5m head PFA lined centrifugal pump, manufactured by CP Pumpen Ag, type MKPL-50-32-160, serial #06-01774/55309, 120mm diameter impellor, 2930 rpm pump speed, 0/40 degrees C, 16 bar pressure, driven by 5.5/6.3kW, 3/50-60/690-400/660-380/415-440 volt, 2905/2893/2911/3486 rpm, EExde IIB T4 ATEX motor, mounted on a baseplate

Additional Information

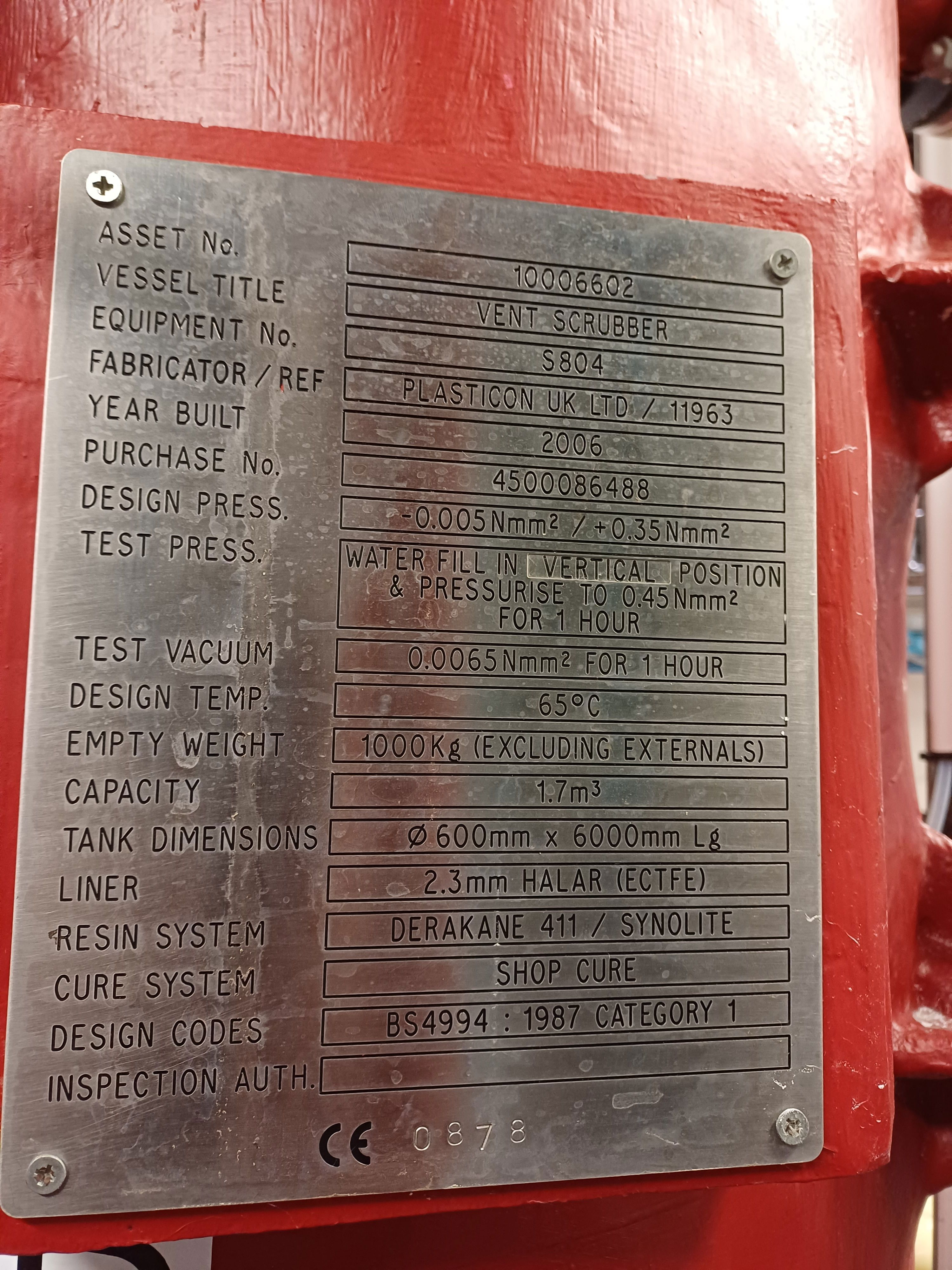

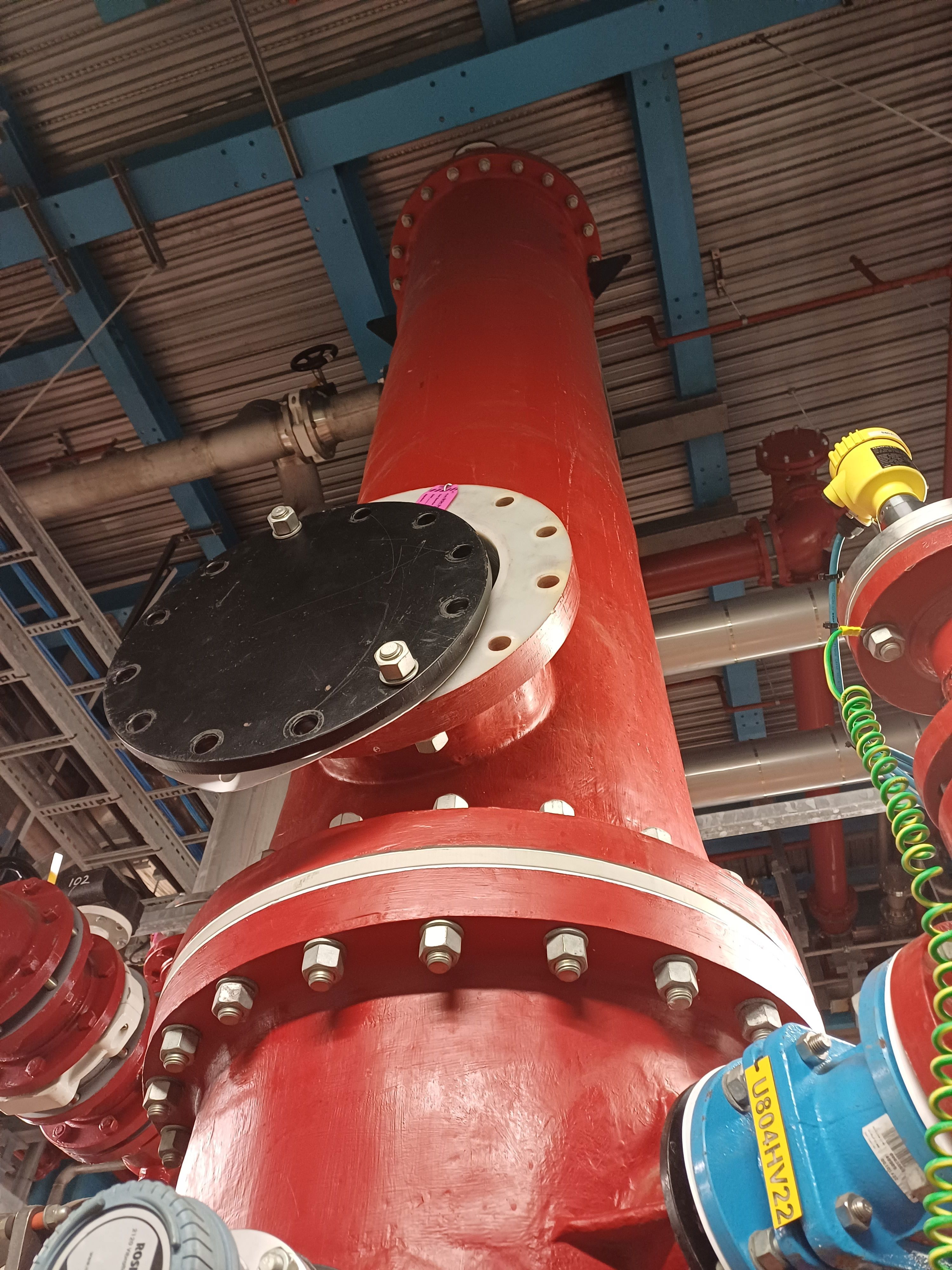

Halar coated GRP scrubber system,
design pressure -0.005Nmm2/+0.35Nmm @ 65 degrees C
1700 liter,
2.3mm Halar (ECTFE) lining,
1800mm liquor depth

The unit is designed to reduce the HCl from a maximum of 1,000 mg/m3 to below 5 mg/m3

at gas flow rates up to 1,250 NM3/hr and with the pH of the scrubbing liquid ranging from

the normal alkaline solution down to a pH of 7.
