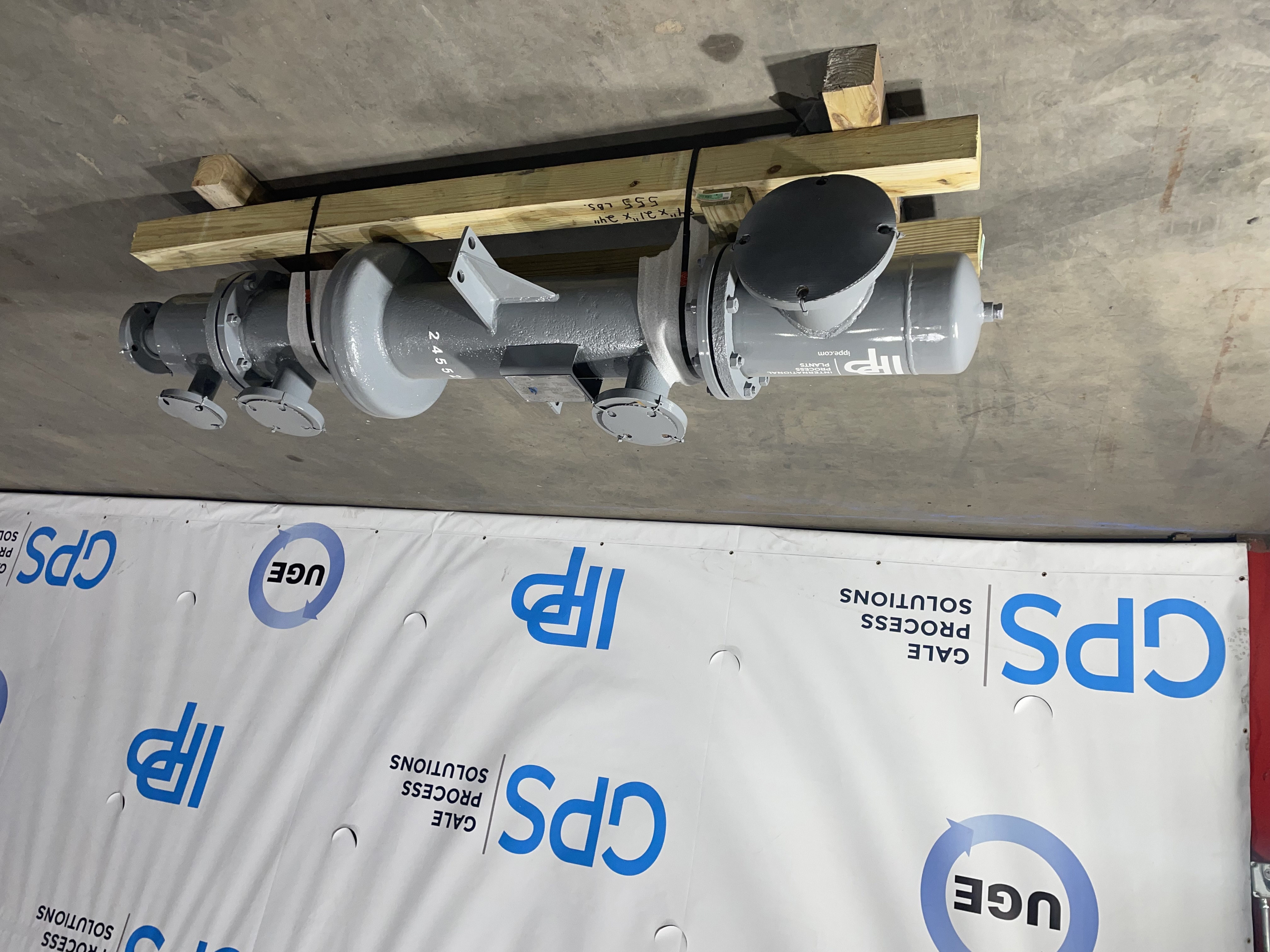

Shell and Tube Heat Exchanger 4 m² (43 ft²) Hastelloy - C276 For Sale - IPP# 245526

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 323.9 mm (12.8 in). Head Material: Carbon Steel. Length: 2,408 mm (94.8 in). Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 50. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,362 mm (93 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Nozzle schedule is as follows: two 3.5", two 2.375" nozzles, and two 0.75" nozzles..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 10.4 m² (112 ft²)

Orientation: Horizontal

kettle type reboiler With SS U-tube bundle

Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 165.6 °C (330 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Carbon Steel. Tube Type: U-Tube.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 186.5 m² (2,007 ft²)

Orientation: Horizontal

With top vapor dome-Dowtherm Condenser

Shell Pressure: 12.1 bar (175 psi). Shell Temperature: 230 °C (446 °F). Shell Material: Carbon Steel. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 1,372 mm (54 in). Head Material: Carbon Steel. Length: 4,242 mm (167 in). Tube Type: Straight Tube. Tube Number: 548. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,242 mm (167 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 6", four 4", one 2" four 1.5".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 1.86 m² (20 ft²)

Orientation: Horizontal

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 203.2 mm (8 in). Head Material: Stainless Steel 316. Length: 1,524 mm (60 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 20. Tube Diameter: 304.8 mm (12 in). Tube Length: 1,524 mm (60 in). Tube Thickness: 19.1 mm (0.75 in). Nozzle Schedule: (2) 3" , (2) 3/4" Drain/Vent, (2) 2" In/Out..
