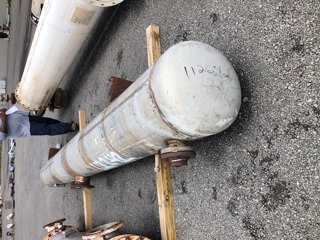

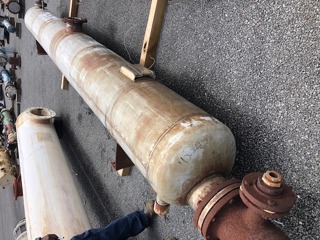

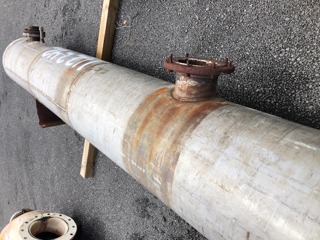

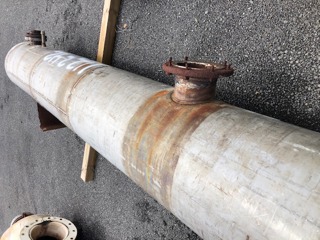

Stainless Steel 304 Shell and Tube Heat Exchanger - IPP# 240134

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 10.4 m² (112 ft²)

Orientation: Horizontal

kettle type reboiler With SS U-tube bundle

Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 165.6 °C (330 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Carbon Steel. Tube Type: U-Tube.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Model: Evaporator Condenser

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 78.8 m² (848 ft²)

Orientation: Horizontal

Shell Pressure: 1.72 bar (25 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 558.8 mm (22 in). Head Material: Stainless Steel 304. Length: 3,654 mm (143.9 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 360. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 304.8 mm (12 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: One 16" two 6" two 3", two 2", one 0.75".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 6 m² (65 ft²)

Orientation: Horizontal

DWG # B 7156

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 218.4 mm (8.6 in). Head Material: Stainless Steel 316. Length: 1,829 mm (72 in). Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 66. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: Nozzles are as follows: One 3", two 2", and one 1" nozzle..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle and Roth

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 4 m² (43 ft²)

Shell Pressure: 10.3 bar (150 psi)

Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Length: 1,194 mm (47 in). Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 1.91 mm (0.08 in). Tube Length: 1,194 mm (47 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: (1) 6" inlet/outlet, ( 1) 3" (1) 2" (2) 3" (2) 3/4" drain, (1) 3/4" drain .
