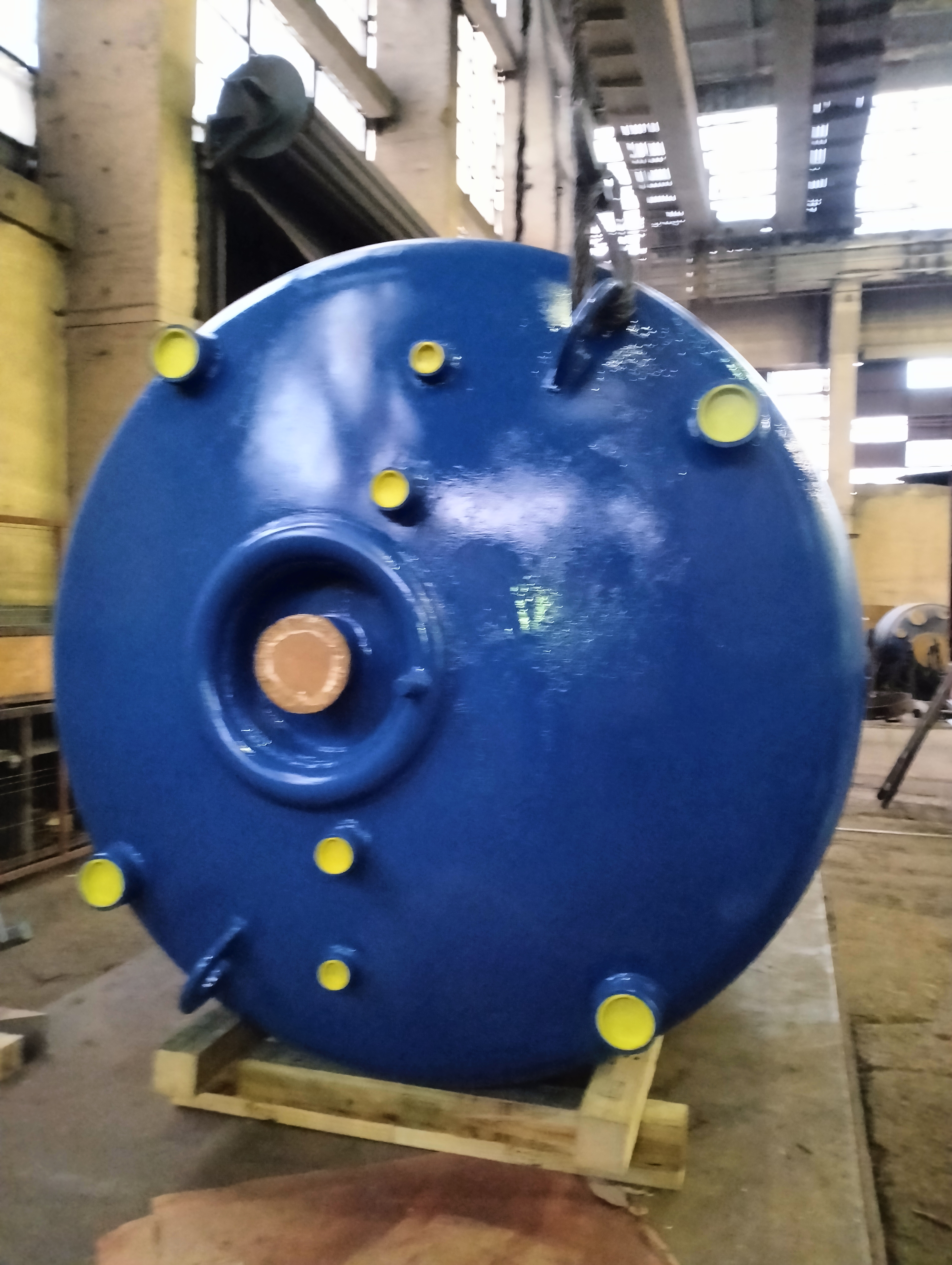

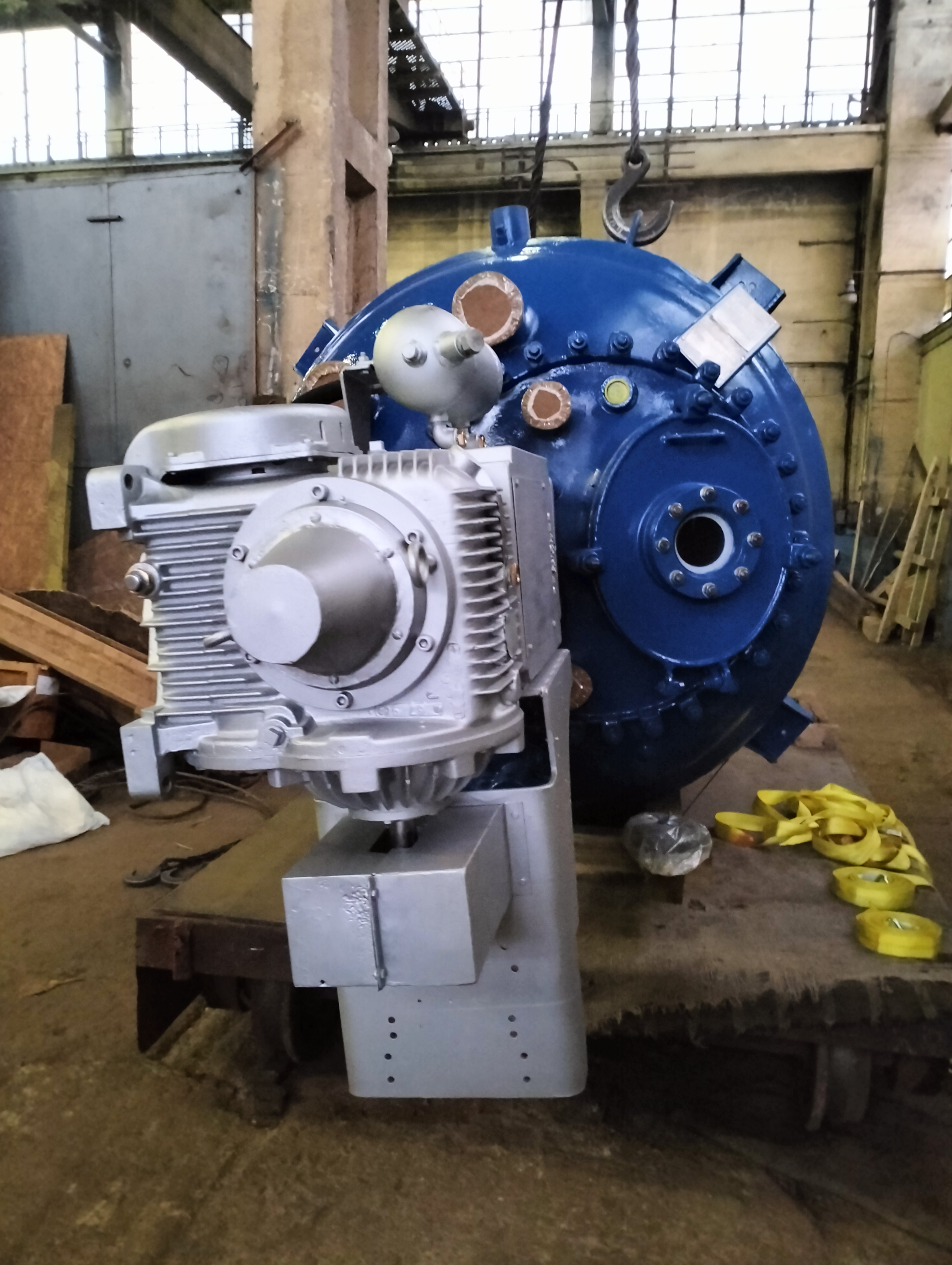

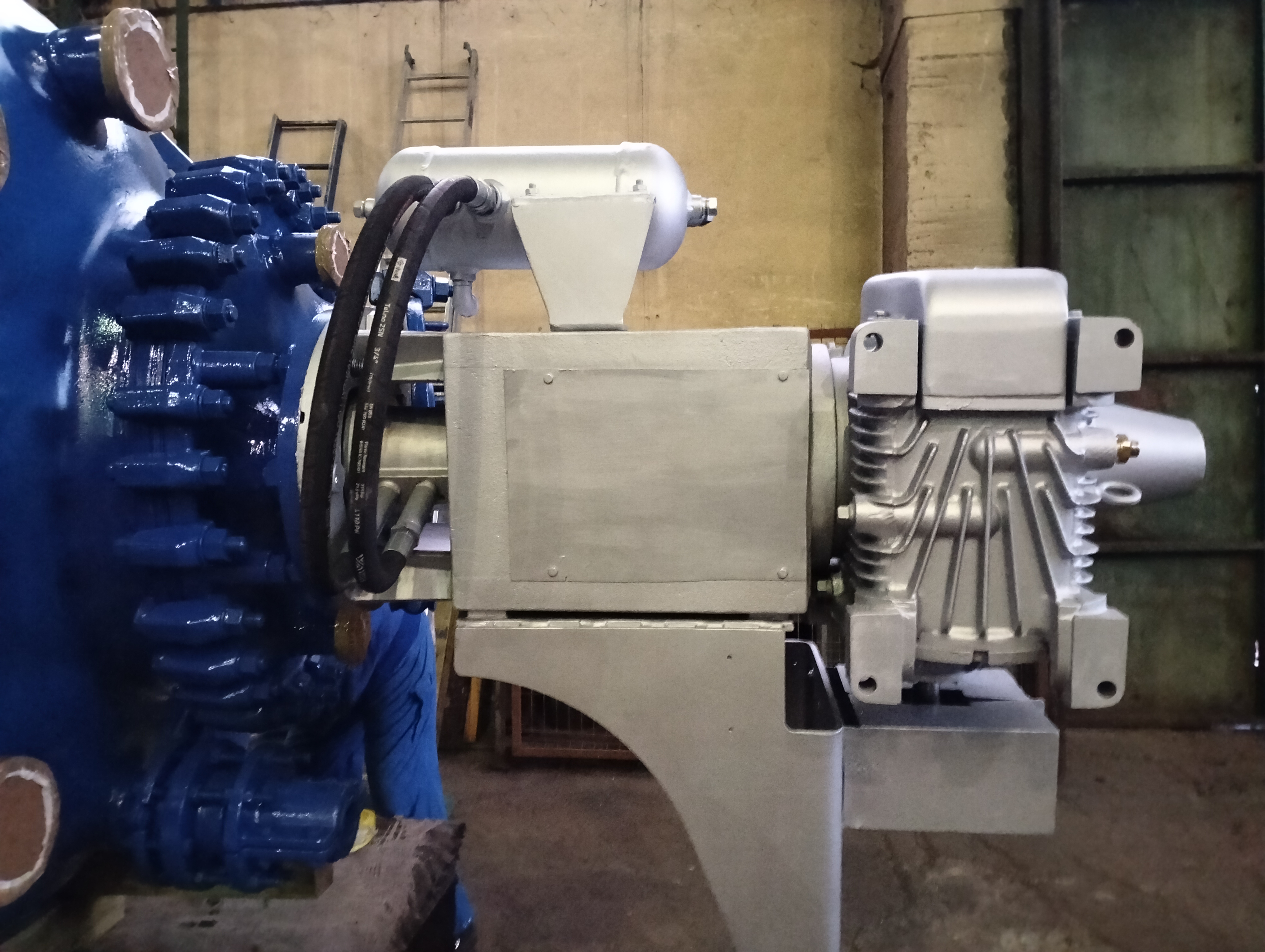

Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536

  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536 Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536 Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536 Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536 Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536 Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
  • Reglassed, Pfaudler RA 1000 Batch-Type Agitated Reactor - IPP# 245536
Overview
Reactor
Batch-Type Agitated
Pfaudler
RA 1000
Re-glassed
Glasslined
3,800 L (1,000 gallons)
Glass Lined
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
232.2 °C (450 °F)
Standard
Carbon Steel
Dimensions
Vertical
1,500 mm (60 in)
1,700 mm (66 in)
Agitation System
Yes
Retreat Curve
Mechanical
3 blade RCI
11.2 kW (15 HP)
11.2 kW (15 HP)
H-Baffle
Baffle with Integral Tip
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Lugs
Inlets & Outlets
14" x 18" with 4" sight glass, 30" Main cover with 4-3/8" drive nozzle, & two 2" nozzles. One 8" nozzle and four 4" nozzles.
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
