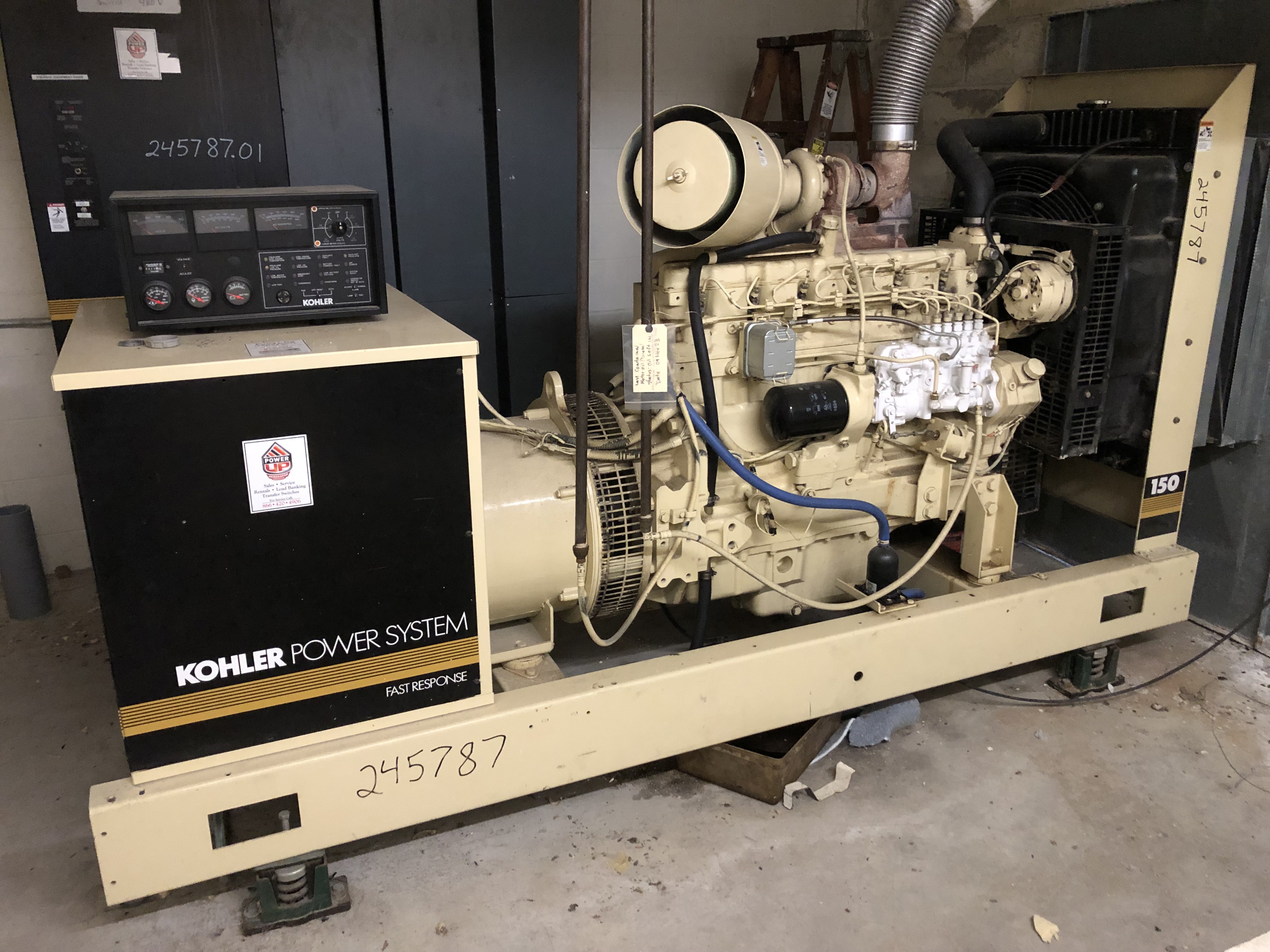

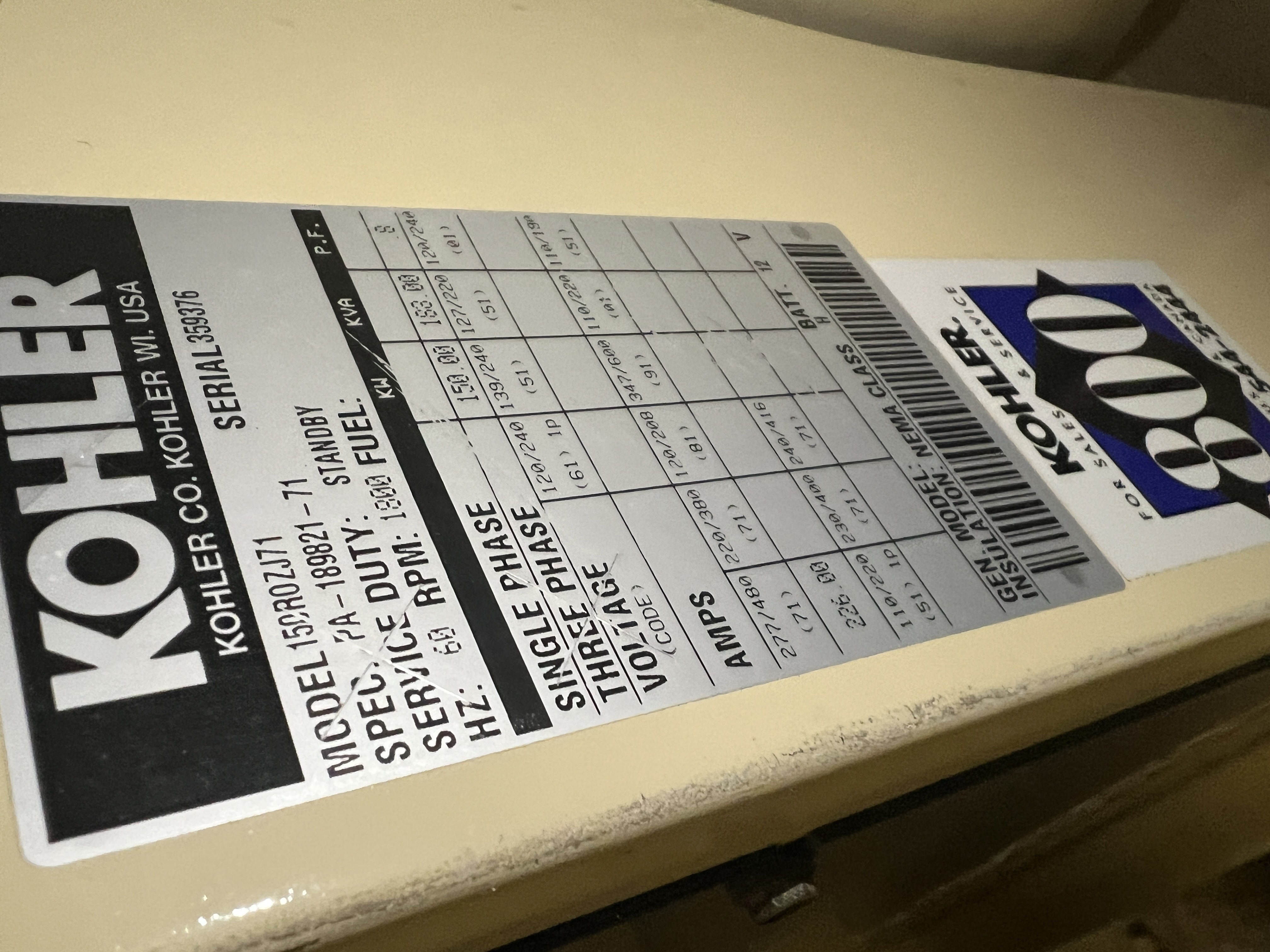

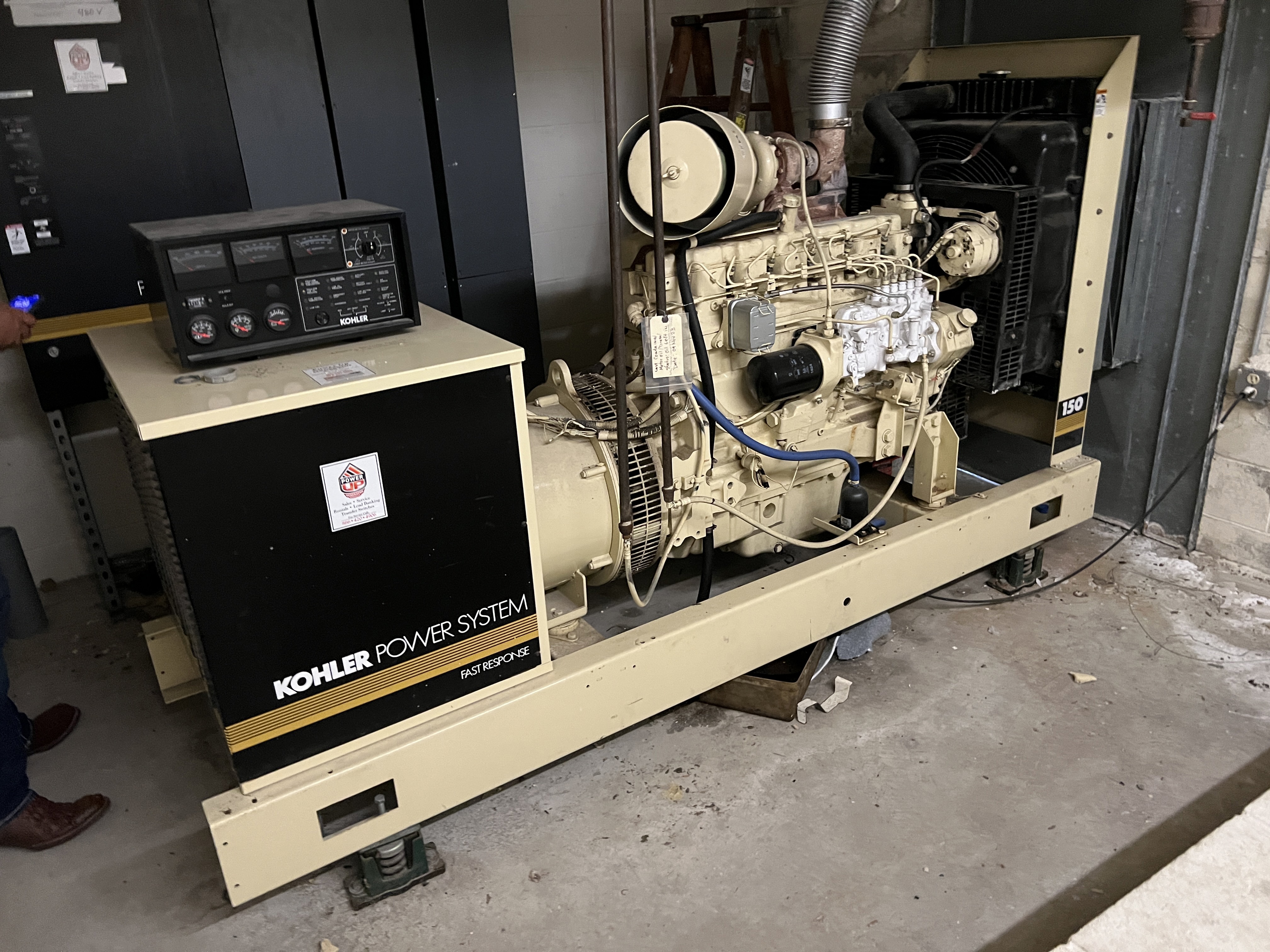

Power Generator 0.15 MW Carbon Steel For Sale - IPP# 245787

Type: Power Generator

Manufacturer: Kohler

Model: 40REOZJB

Condition: Used

Material: Carbon Steel

Capacity: 0.04 MW

Amperage: 154 amp

70-79hp @ 2500RPM 600V max @ 48A, 50kVA, 60Hz, Line to Line Voltage

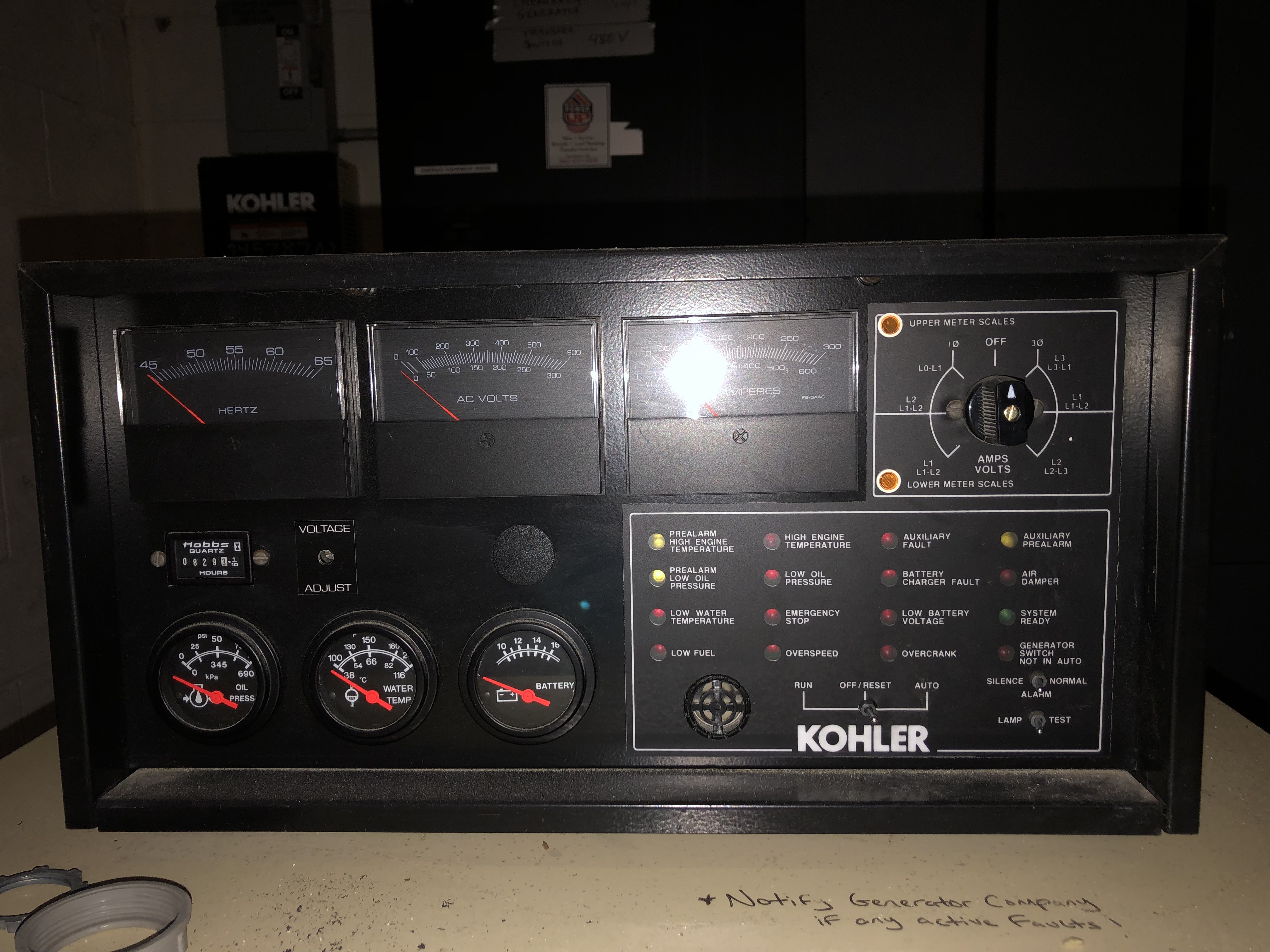

Voltage: 240. Cycle: 3. Phase: 3. Emergency: Yes. Operational Hours: 285.4. Drive Power: 35.8 kW (48 HP). Fuel Type: Diesel. Power Transmission: Direct Coupled. Powered By: Engine. Engine Manufacturer: John Deere. Engine Model Number: 3029TF150. Drive engine number of cylinders: 3. Engine Horsepower: 48. Batteries: Yes. Battery Charger: Yes. Controls: Yes.

Type: Power Generator

Manufacturer: Kato

Model: A261820000

Condition: Used

Material: Carbon Steel

Capacity: 0.28 MW

Amperage: 428.5 amp

Skid mounted turbine generator package This set is designed to recover the work available in high pressure steam that would normally be lost when the steam passes through a pressure reducing valve The system consists of a backpressure steam turbine driving a synchronous generator mounted on a skid The control system automatically controls the flow of the steam through the turbine, thereby controlling the pressure in the low pressure header. The major components are as follows: Turbine by Coppus Engineering, Model # RLHA-19, Serial # 94H9489. This is a single-stage, impulse type turbine. Capable of delivering 404 HP at 3600 rpm, designed for 23,075 lbs. /hr, of dry saturated steam at 210 psi.
Generator is manufactured by Kato, and is high efficiency design, synchronous, and brushless, and revolving field style ; Type: 26182 Operating at 3600 rpm, delivering 480 volt, 3 ph, 60 Hz, 283 kW of output. Alternator kW continuous, 285, 60 Hz, 277/480v, 428.5 amps. Exciter Arm "C" # 3007-10, Exciter Field "C" # 18058-10. The control panel and circuit breaker handle synchronization, metering, protection and other functions.

Voltage: 480. Cycle: 60. Phase: 3. Drive Power: . Powered By: Steam. Controls: Yes.

Type: Power Generator

Manufacturer: Elliott

Model: BYRH-UG

Condition: Used

Material: Carbon Steel

Capacity: 1.01 MW

Amperage: 163 amp

Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units. We believe this unit has zero run hours since the overhaul. Engine, gearbox and generator are mounted in a common skid. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G2, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2625. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-101, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump.

Voltage: 4,160. Cycle: 60. Phase: 3. Drive Power: 1,007 kW (1,350 HP). Power Transmission: Gear. Powered By: Steam. Controls: Yes.

Type: Power Generator

Manufacturer: Caterpillar Inc

Model: G3516

Condition: Used

Material: Carbon Steel

Capacity: 0.8 MW

Amperage: 1,200 amp

Natural Gas Generator Set Number 20502 Cat Engine Model G3516 SITA SN 3RC00095,1085HP The drivers are V-16, Spark ignition, Turbo charged and after cooled. These machines have been serviced by the OEM since start up and until shut down Operating speed 1200RPMs4 wire, Exciter 27V/80A, max temperature rise 115°C by resistance. Paired with a vertical heat exchanger 5’3”diax12’H

Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 657,774. Drive Power: 809.1 kW (1,085 HP). Fuel Type: Natural Gas. Power Transmission: Direct Coupled. Powered By: Engine. Engine Manufacturer: Caterpillar. Engine Model Number: G3516. Drive engine number of cylinders: 16. Engine Horsepower: 1,085. Batteries: Yes. Battery Charger: Yes.
