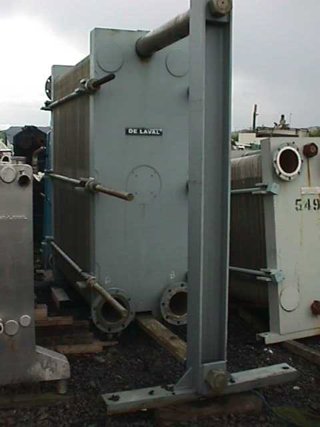

Plate and Frame Heat Exchanger 108.8 m² (1,150 ft²) Stainless Steel 316 For Sale - IPP# 245826

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: M10-MFG

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 21.1 m² (227.1 ft²)

Cold-side Pressure: 2.4 bar (34.8 psi)

carbon steel pressure plates and frame,

Cold-side Temperature: 90 °C (194 °F). Hot-side Pressure: 5 bar (72.5 psi). Hot-side Temperature: 90 °C (194 °F). Number of Plates: 96.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: M15-FFM8

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 193.8 m² (2,100 ft²)

Cold-side Pressure: 10 bar (145 psi)

carbon steel pressure plates and frame,

Cold-side Temperature: 90 °C (194 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 90 °C (194 °F). Number of Plates: 323.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: P-17HBM

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 339 m² (3,650 ft²)

Nozzle Schedule: (4) 7 1/2" diameter nozzles.

Housing Material: Carbon Steel. Number of Plates: 270.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 9.5 m² (102 ft²)

Length: 610 mm (24 in)

• Brazed plate & frame

Nozzle Schedule: 2" ANSIB 16.5 class 150 304 SS. Cold-side Pressure: 16 bar (232 psi). Cold-side Temperature: 148.9 °C (300 °F). Hot-side Pressure: 16 bar (232 psi). Hot-side Temperature: 148.9 °C (300 °F). Housing Material: Stainless Steel 316L.
