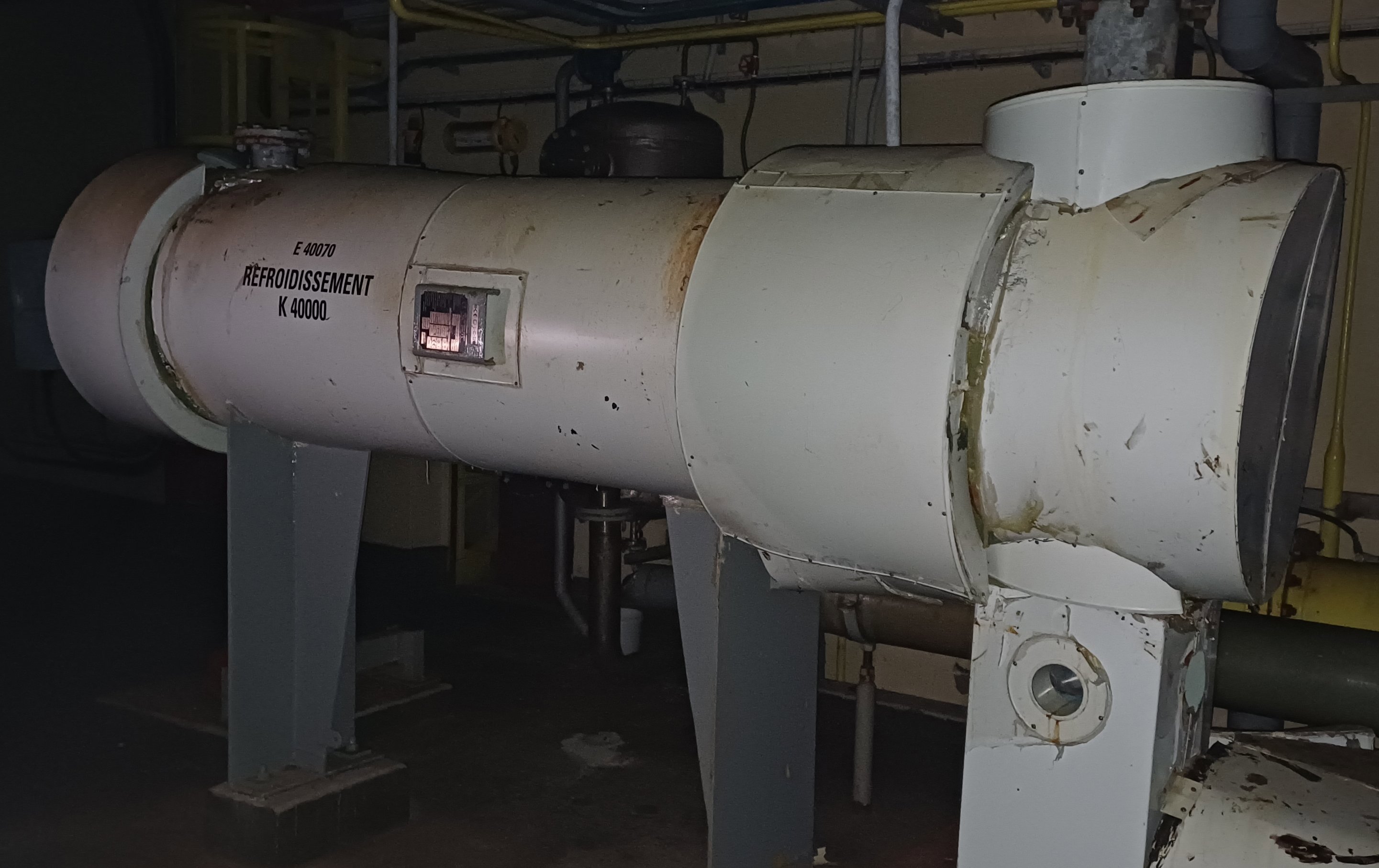

Name: Graphite cylindrical block Heat Exchanger
Brand: SGL Carbon Group-SGL Tecnic S.A
SKU: 246430

Overview

Type:

Heat Exchanger

Subtype:

Block

Manufacturer:

SGL Carbon Group-SGL Tecnic S.A

Model:

CKS 4x8-6 block

Condition:

Used

Material:

Graphite

Capacity

Heat Transfer Surface Area:

20.6 m² (221.7 ft²)

Service Side Capacity:

170 L (44.9 gallons)

Process Side Capacity:

70 L (18.5 gallons)

Dimensions

Orientation:

Horizontal

Length:

3,050 mm (120.6 in)

Shell

Shell Pressure:

8 bar (116 psi)

Shell Temperature:

70 °C (158 °F)

Shell Material:

Carbon Steel

Shell Diameter:

500 mm (19.7 in)

Other Specifications

Vacuum:

Yes

Head Material:

Graphite

Process Pressure:

6 bar (87 psi)

Pack Material:

Graphite

Process Temperature:

180 °C (356 °F)

Service Side Passes:

Process Side Passes:

Additional Info:

design pressure process side -1/6 bar @ -25/180 degrees C, service side 8 bar @ -30/70 degrees C,

Graphite Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

Estimated surface area to be 76 ft 2
cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).

Graphite Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.96 m² (21.1 ft²)

cubic block

7.6 m² (81.8 ft²) Graphite Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri

Model: SD 63-3125

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.6 m² (81.8 ft²)

Orientation: Vertical

Cylindrical block Heat Exchanger

Shell Pressure: 2 bar (29 psi). Shell Temperature: 100 °C (212 °F). Nozzle Schedule: openings: heat: 2-50mm, shell: 1-50mm, 1-30mm, 1-125mm. Process Pressure: 2 bar (29 psi). Process Temperature: 100 °C (212 °F).
