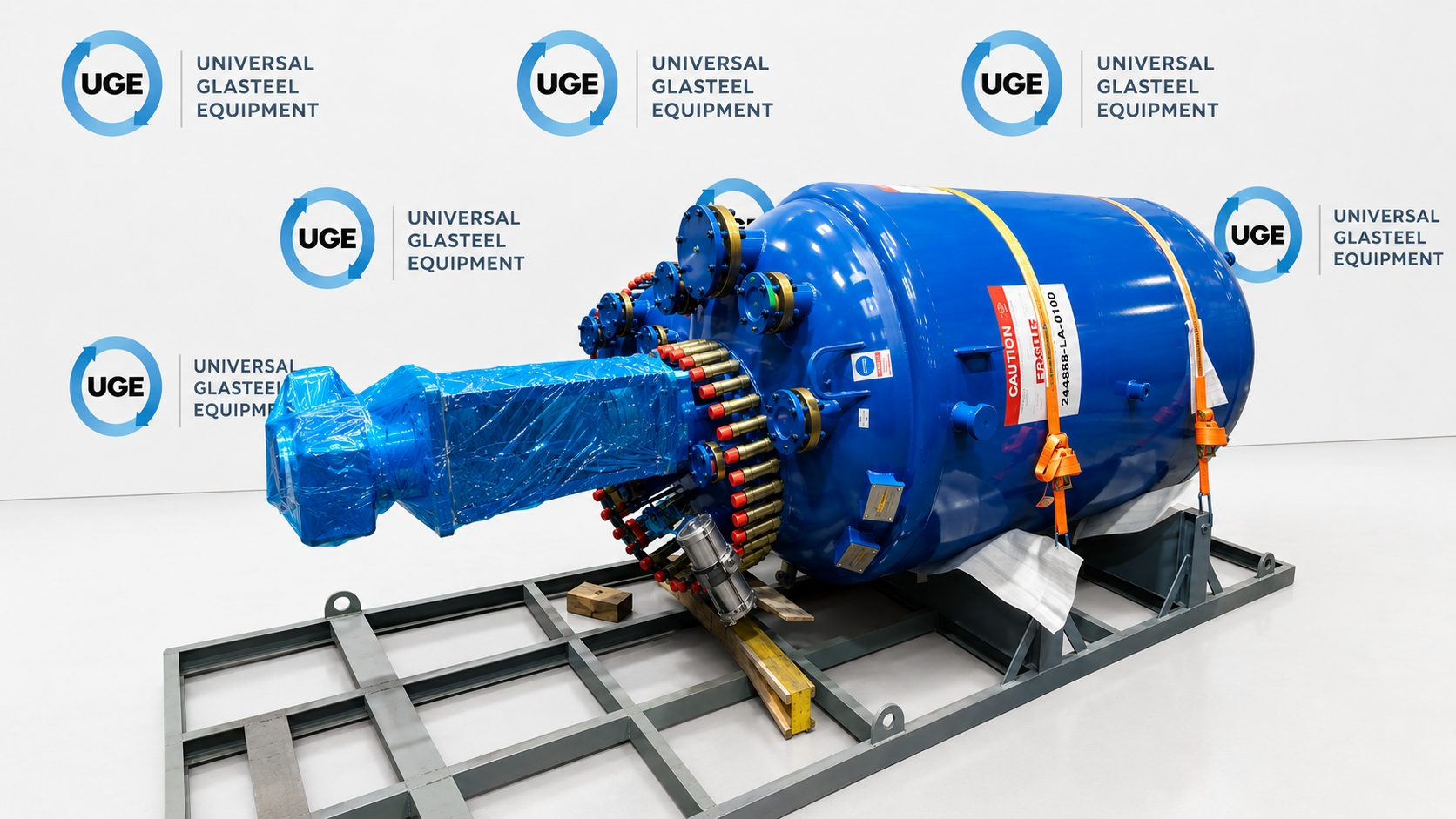

New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488

  • New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488 New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488
  • New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488 New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488
  • New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488
  • New Glasslined UGE UA-1000 Batch-Type Agitated Reactor - IPP# 246488
Overview
Reactor
Batch-Type Agitated
UGE
UA-1000
New
Glasslined
3,800 L (1,000 gallons)
Glass Lined
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
232.2 °C (450 °F)
Standard
Carbon Steel
Dimensions
Vertical
1,500 mm (60 in)
2,200 mm (87 in)

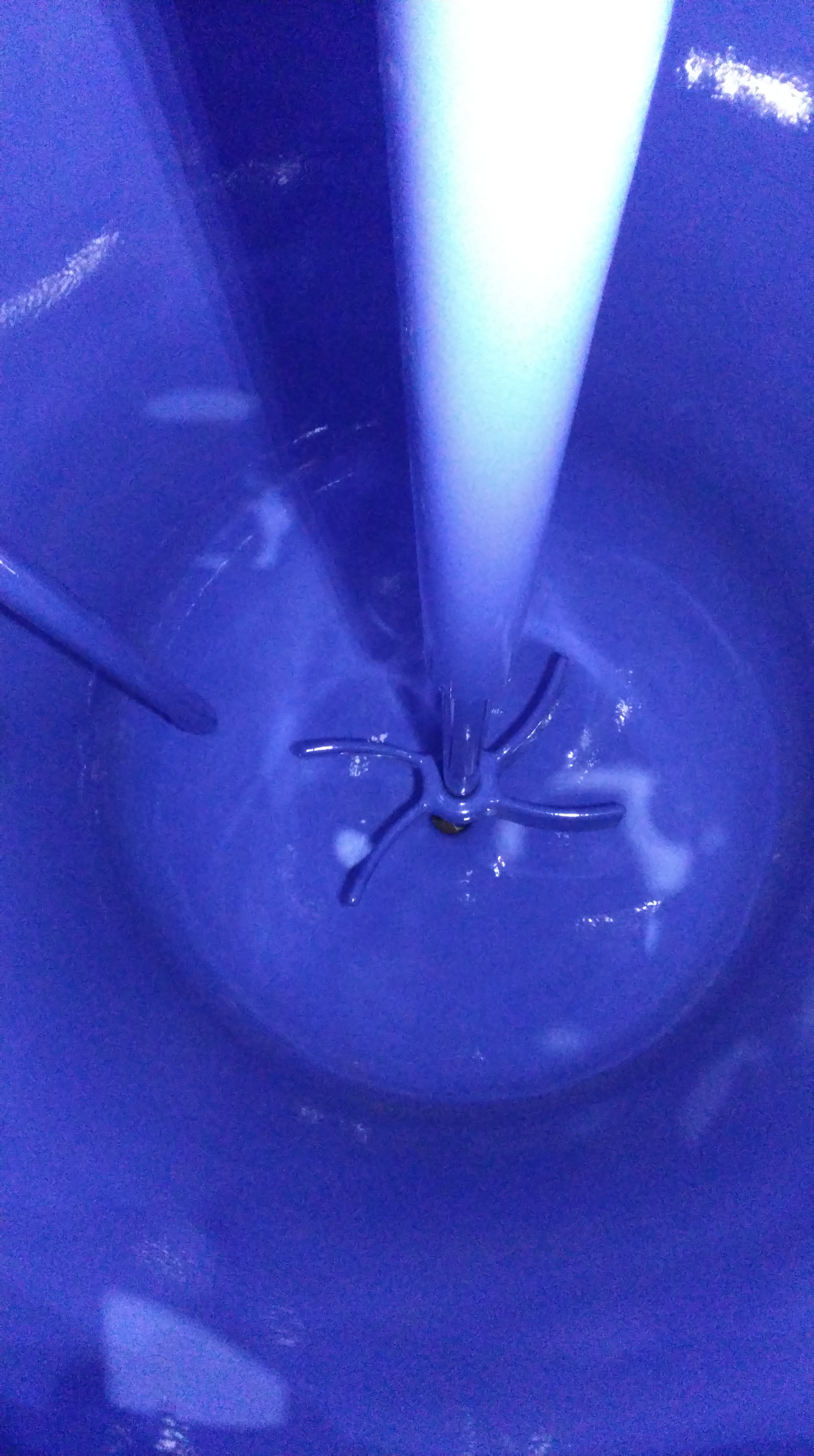

Agitation System
Yes
CBT
Double Mechanical Seal
Cryo-fix
7.5 kW (10 HP)
7.5 kW (10 HP)

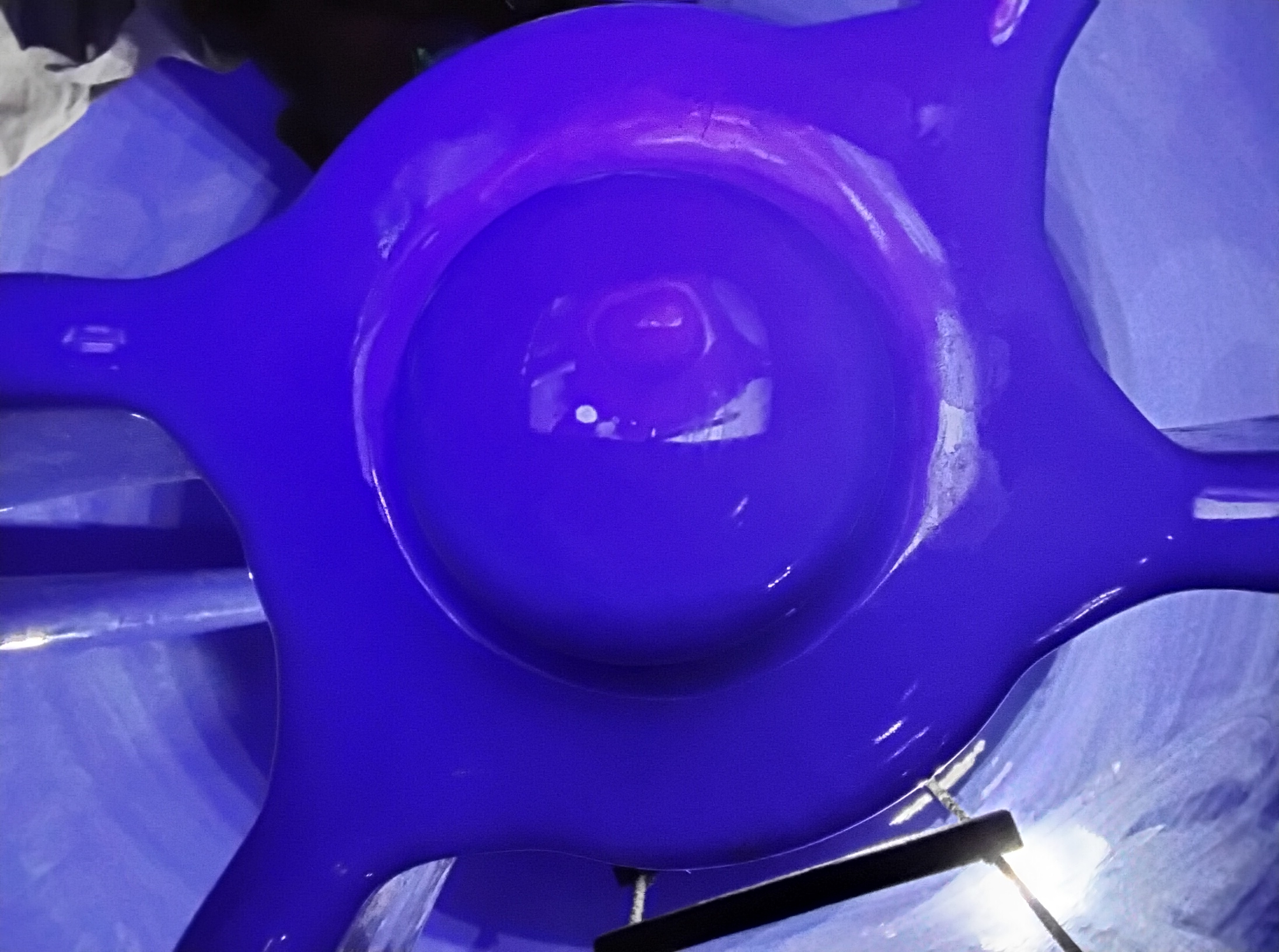

Beavertail
Integral Tip
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets

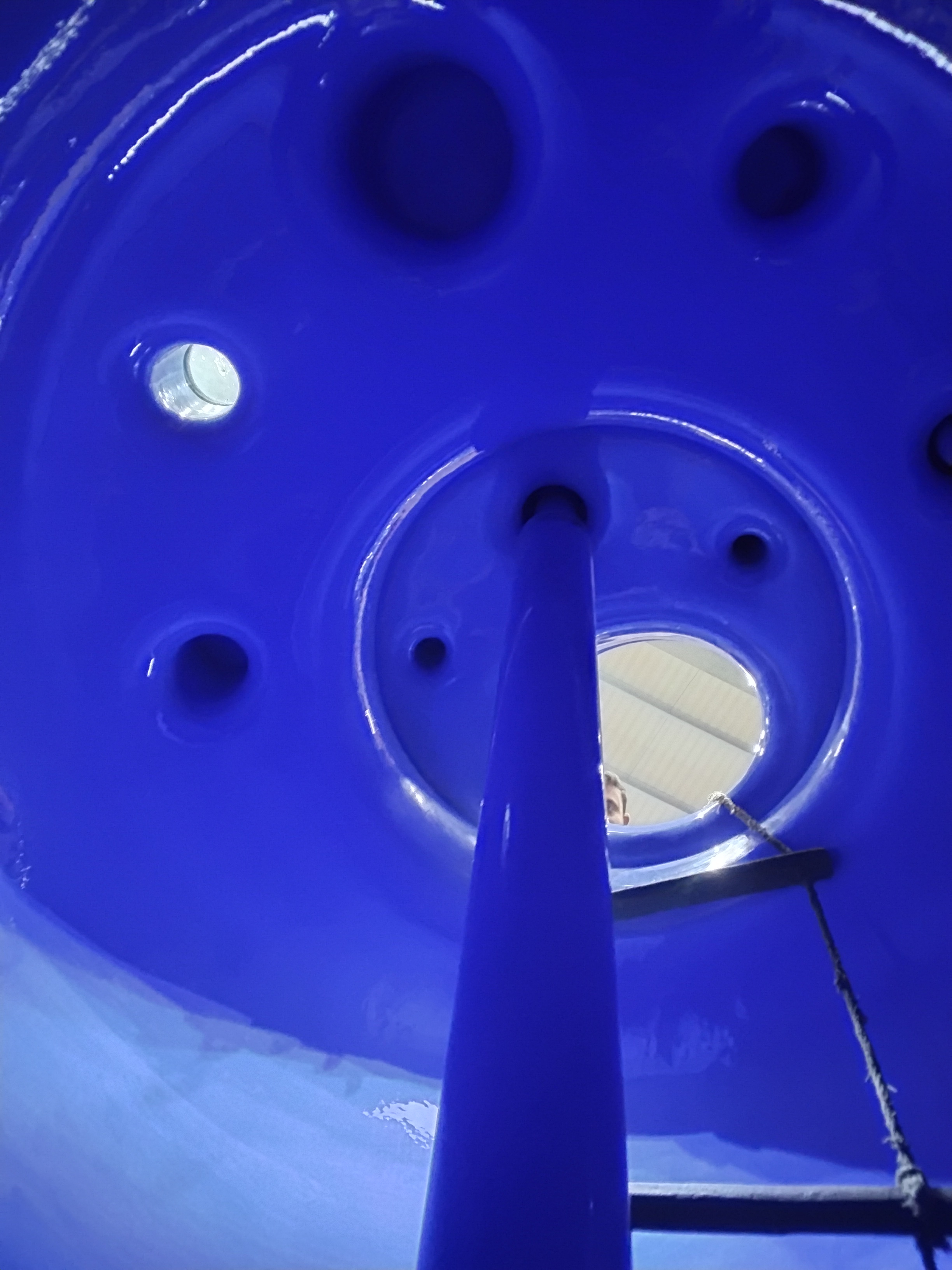

30" main cover with 4 3/8" drive nozzle and two 2" nozzles 14" x 18" manway with 4" sight glass, pro ring and hinge assist, One 8", and four 4" nozzles.

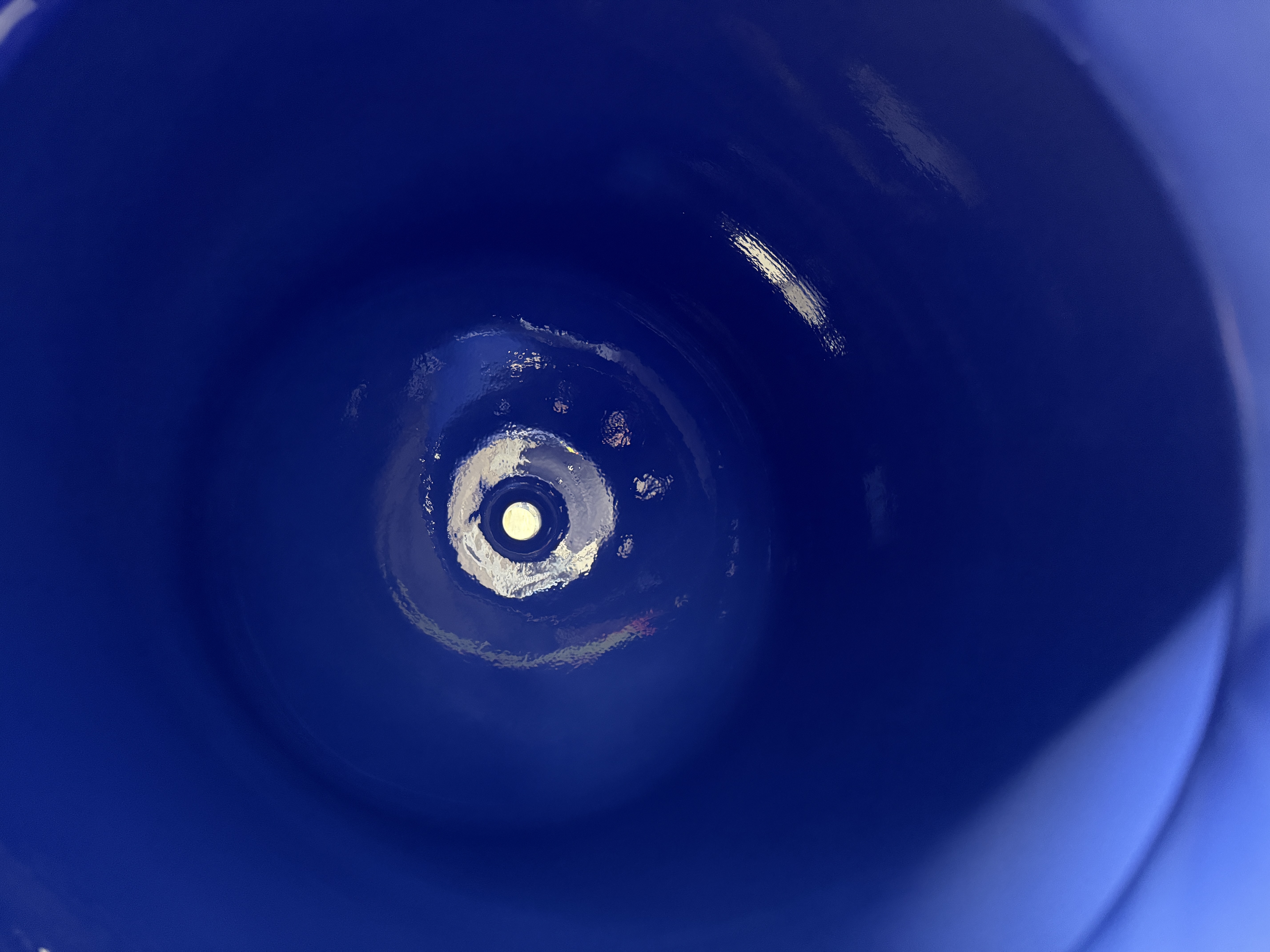

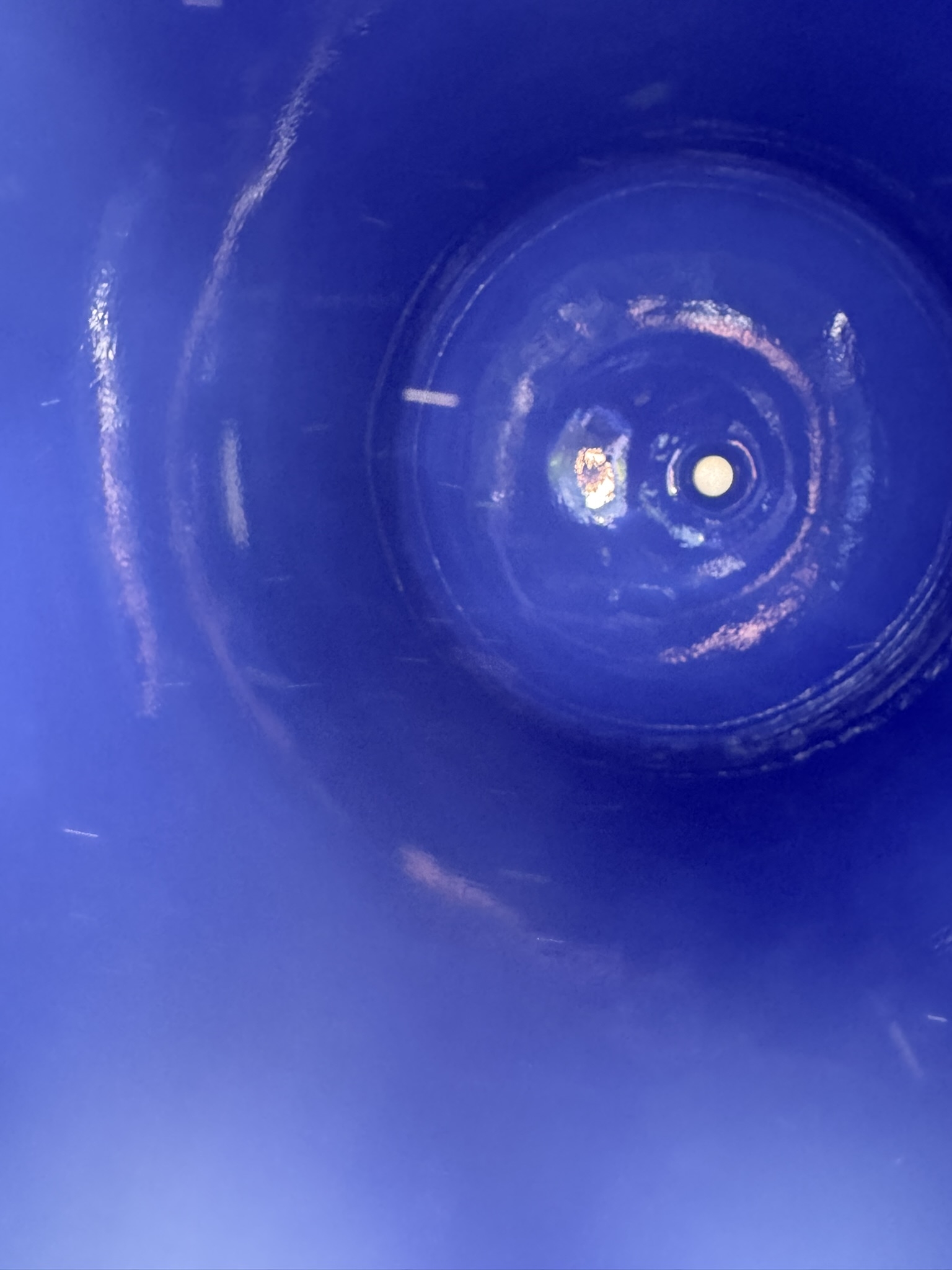

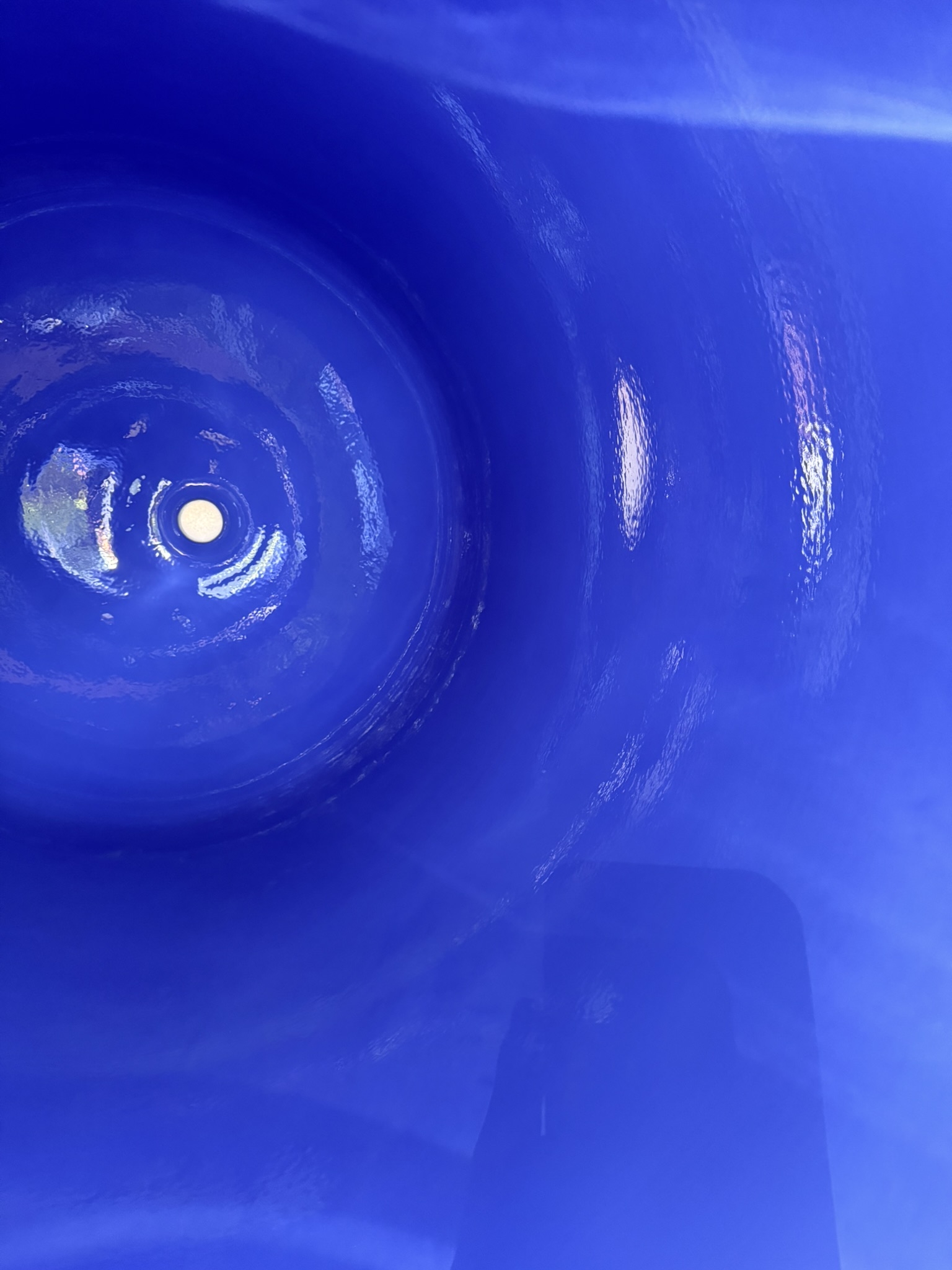

Glass Details
New
New

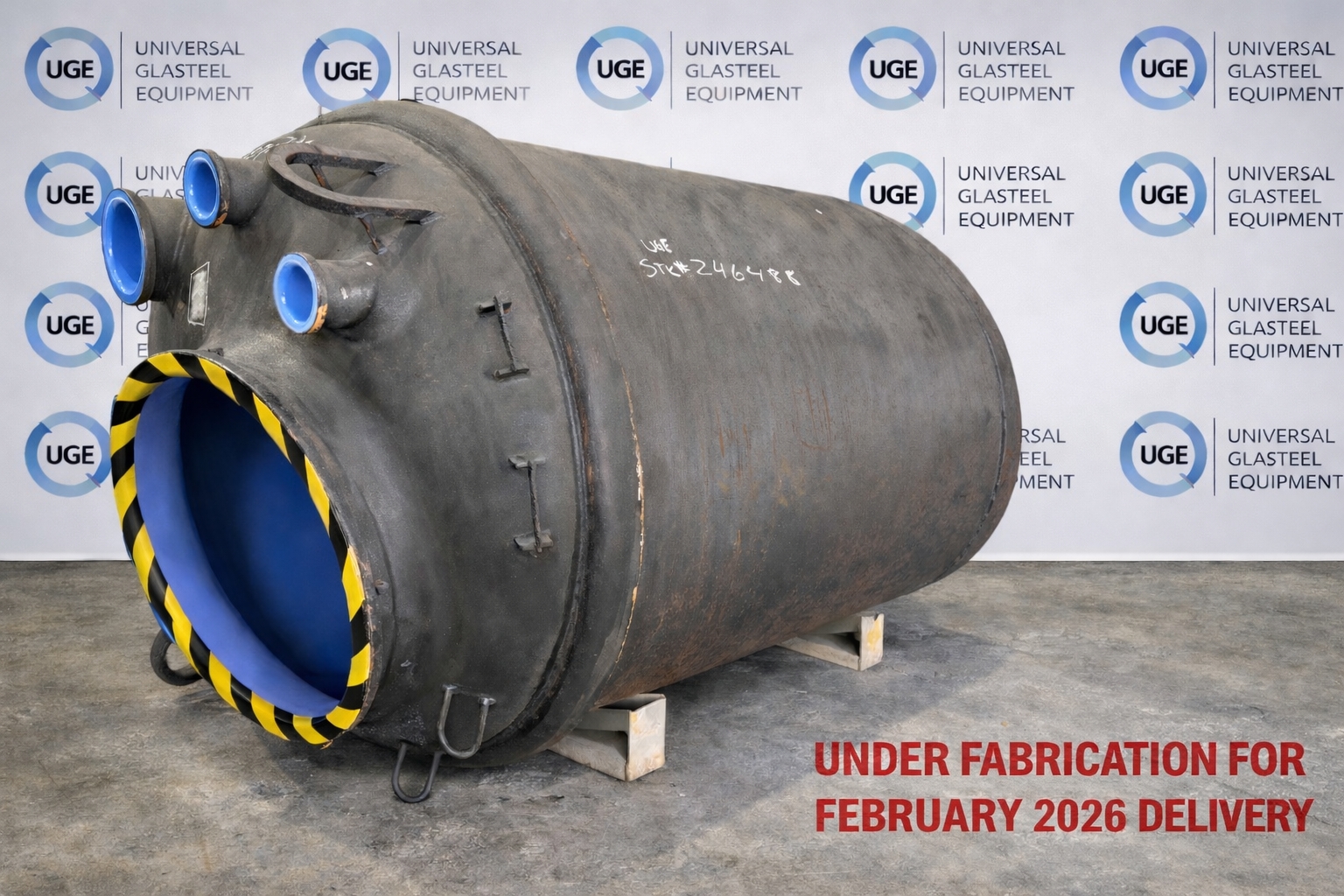

  • New Reactor Assembly in construction.
  • Motor is VFD rated
