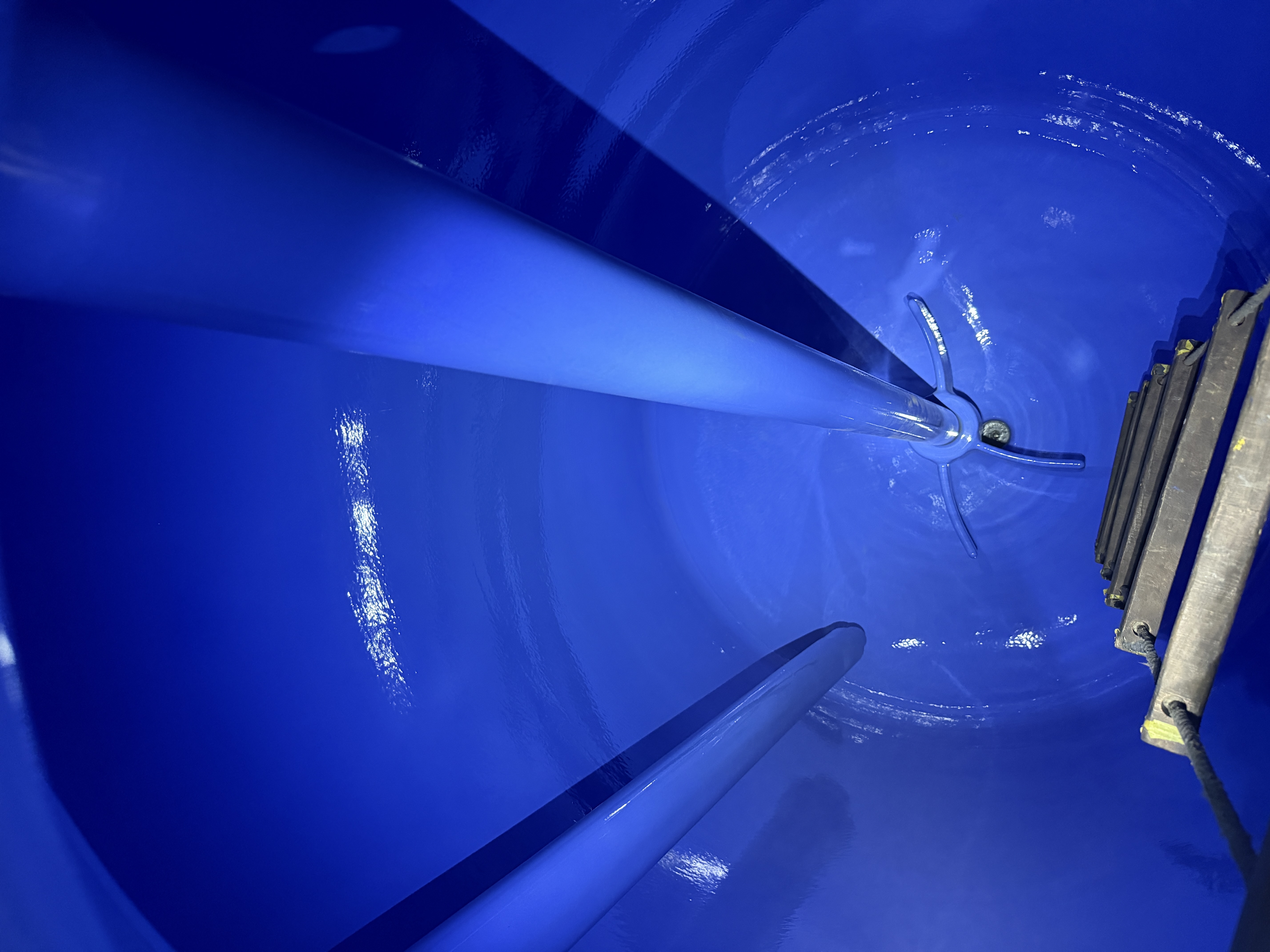

New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490

  • New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490 New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490
  • New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490 New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490
  • New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490
  • New Glasslined UGE UA-2000 Batch-Type Agitated Reactor - IPP# 246490
Overview
Reactor
Batch-Type Agitated
UGE
UA-2000
New
Glasslined
7,550 L (2,000 gallons)
Glass Lined
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
232.2 °C (450 °F)
Standard
Carbon Steel
Dimensions
Vertical
2,000 mm (78 in)
2,700 mm (106 in)
Agitation System
Yes
Retreat Curve
Double Mechanical Seal
Cryofix agitator blades
14.9 kW (20 HP)
14.9 kW (20 HP)
Beavertail
Integral Tip
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets
30" main Cover with a 4 & 3/8" drive nozzle, two 2" nozzles and a 14" x 18" man way with 4" sight glass, protection ring and assist hinge. Two 8" nozzles, two 6" nozzles, three 4" nozzles.
Glass Details
New
New
  • New Reactor Assembly in construction.
  • Motor VFD rated
