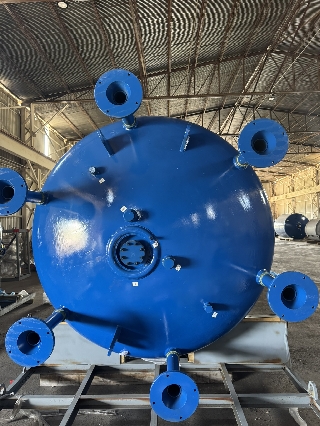

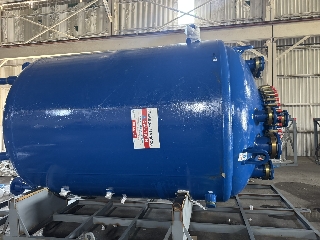

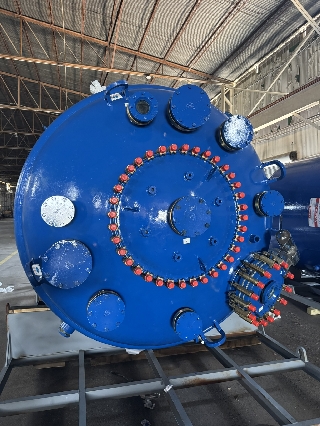

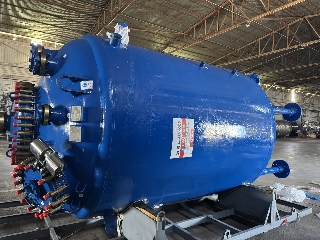

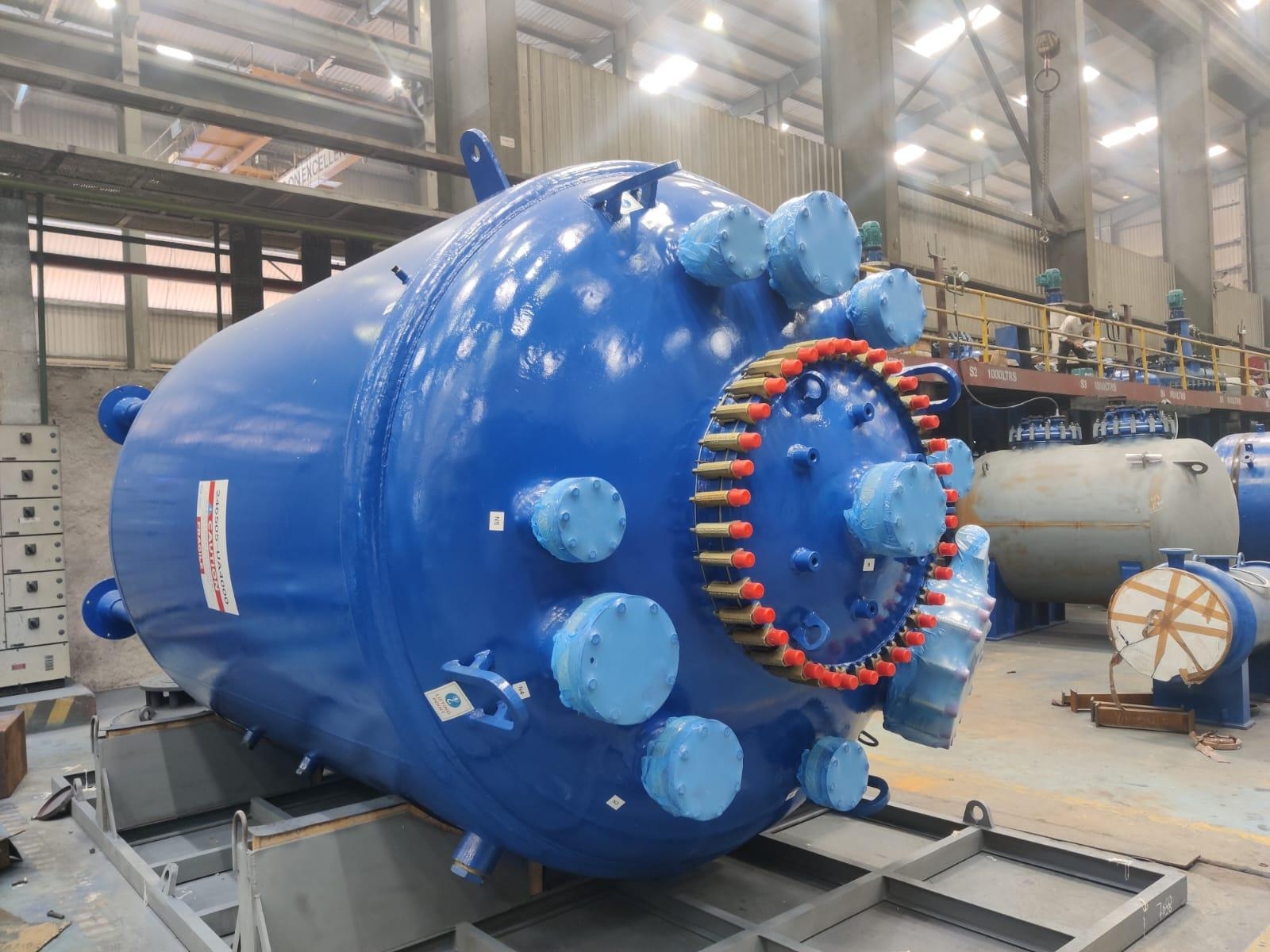

New Glasslined UGE UA-4000 Batch Type Body Only Reactor - IPP# 246505

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: UA-4000

Condition: New

Material: Glasslined

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Dark Blue Glass.
• New Base Reactor body in construction. Bare reactor price in sales comments.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,450 mm (96 in). Straight Side Length: 3,500 mm (137 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: UA-300

Condition: New

Material: Glasslined

Capacity (Design): 1,150 L (300 gallons)

Internal Pressure: 6.9 bar (100 psi)

• New Base Reactor Body (with covers) Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,200 mm (48 in). Straight Side Length: 1,200 mm (48 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: UA-500

Condition: New

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,200 mm (48 in). Straight Side Length: 1,500 mm (59 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: UGE

Model: UA-500

Condition: New

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,200 mm (48 in). Straight Side Length: 1,500 mm (59 in). Support Type: Legs.
