Overview

Type:

Evaporator

Subtype:

Crystalizer/Evaporator

Manufacturer:

IPS

Condition:

Used

Material:

Stainless Steel 316

Capacity

Evaporation Rate:

1,771 kg/h (3,905 lb/h)

Total Heat Transfer Surface Area:

72.6 m² (781 ft²)

Capacity in Gallons:

21,955 L (5,800 gallons)

Dimensions

Orientation:

Vertical

Diameter:

2,743 mm (108 in)

Height:

3,658 mm (144 in)

Other Specifications

Pressure:

0.97 bar (14 psi)

Temperature:

121.1 °C (250 °F)

Support Details:

Mounted on lugs

Support Type:

Lugs

Mechanical Seal on Shaft:

Yes

Internal Coil:

Yes

Internal Coil Surface Area:

781

Internal Coil or Jacket Pressure:

3.4 bar (50 psi)

Top Head

Top Head type:

Dish

Top Head Fastening:

Welded

Bottom Head

Bottom Head Type:

Dish

Bottom Head Fastening:

Welded

Drive

Drive Type:

Lightnin Model 16Q7.5

Drive Motor HP:

2.2 kW (3 HP)

Drive Motor RPM:

880

Drive Motor Voltage:

460

Electric Motor Phase:

Drive Motor Hertz:

Drive Make:

Lightnin

Drive Model:

16Q7.5

Agitation

Agitation:

Yes

Agitator Seal Type:

Mechanical

Additional Info:

Mixer is driving a two tier 316SS 3 blade agitator 54" span upper impeller, 42" span lower impeller. Mixer drive is Inverter duty.

Stainless Steel 316 Crystalizer/Evaporator Evaporator

Type: Evaporator

Subtype: Crystalizer/Evaporator

Manufacturer: Alfa Laval

Condition: Used

Material: Stainless Steel 316

Pressure: 4 bar (58 psi)

Temperature: 50 °C (122 °F)

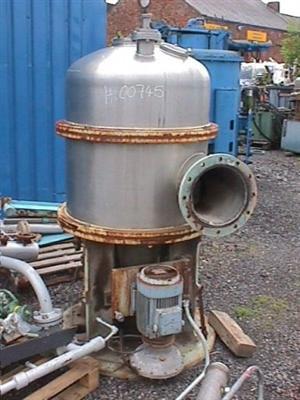

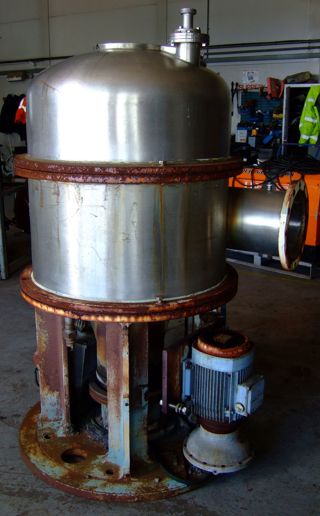

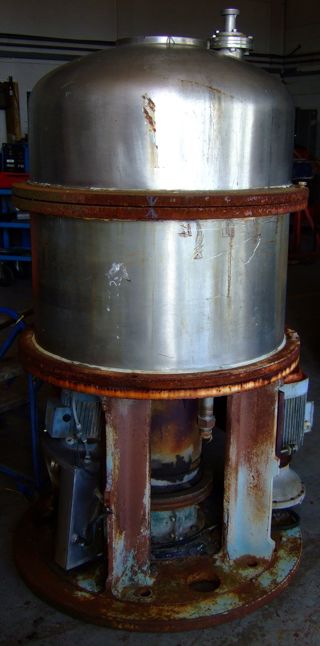

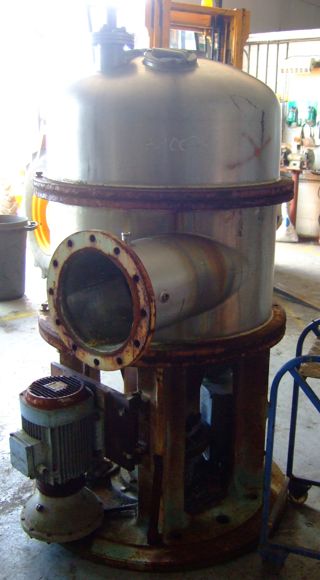

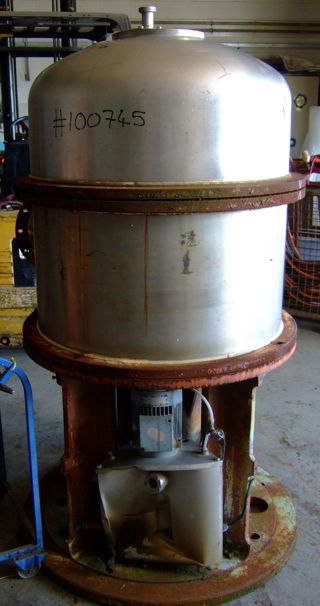

CT-6 Centritherm evaporator Operating temperature ranges from 35 to 70 degrees C Concentration depends upon product ranges from 8:1 to 25:1. Capable of up to 92% solids

Vacuum: Yes.

Stainless Steel 316 Crystalizer/Evaporator Evaporator

Type: Evaporator

Subtype: Crystalizer/Evaporator

Condition: Used

Material: Stainless Steel 316

Orientation: Vertical

Pressure: 1.01 bar (14.7 psi)

Single-effect evaporator. With (2x) 316SS heat exchangers Manufactured by Arnold.

Vacuum: Yes.

Stainless Steel 316 IPS Crystalizer/Evaporator Evaporator - IPP# 246738
