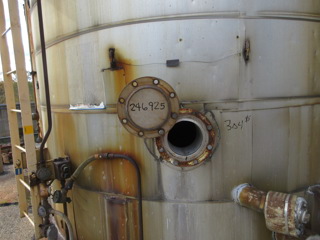

Stainless Steel 304L Alloy Fab Tank - IPP# 246924

Type: Tank

Manufacturer: Alloy Fab

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 44,300 L (11,700 gallons)

Orientation: Vertical

• With OSHA cage ladder and top hand rails.

Diameter: 3,050 mm (120 in). Straight-side Length: 6,100 mm (240 in). Internal Pressure: 0.97 bar (14 psi). Internal Temperature: 93.3 °C (200 °F). Support: Pads.

Type: Tank

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,400 L (7,500 gallons)

Orientation: Horizontal

• (5) reinforcing rings around outside of tank

Diameter: 2,450 mm (96 in). Straight-side Length: 6,100 mm (240 in). Cone Length: 304.8 mm (12 in). Support: Saddle.

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,000 L (7,400 gallons)

Orientation: Horizontal

• internal working pressure atmospheric @ 80 deg C, design temperature 150 deg C,
• Coil pressure rating: 3.5 bar
• Coil material: 316L s/steel
• Coil design: 1-turn, hairpin
• Coil location: Running along full length of vessel bottom
• Cradle type: Fixed c/steel tank has a 50mm fall from back to front, fully insulated with 50mm foam glass and clad with aluminum

Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,000 mm (236.2 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 150 °C (302 °F). Does it have an Internal Coil?: Yes. Support: Saddle.

Type: Tank

Manufacturer: M. LABBE

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 21,200 L (5,600 gallons)

Orientation: Vertical

Pressure rating: without pressure Lifting weight: 3,030kg Vessel wall thickness of head and bottom dish 8mm Cylindrical section 6mm

Diameter: 2,400 mm (94.5 in). Straight-side Length: 3,900 mm (153.5 in). Internal Temperature: 135 °C (275 °F). Cone Length: 793 mm (31.2 in). Support: Lugs.
