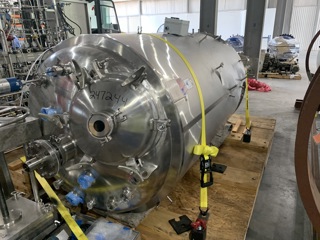

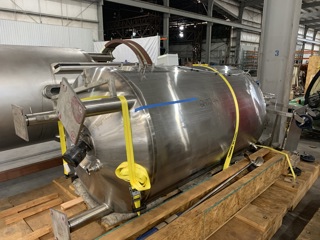

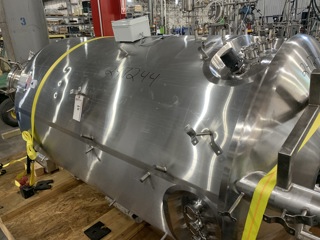

Type: Reactor
Subtype: Batch-Type Agitated

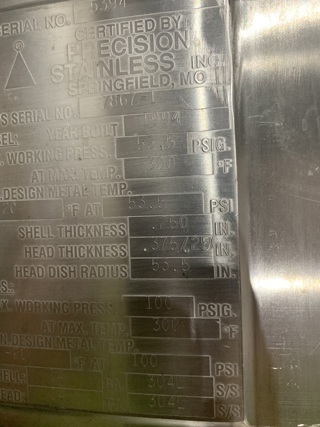

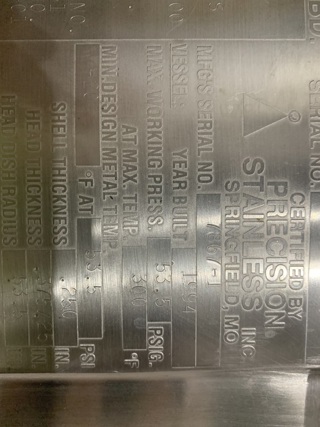

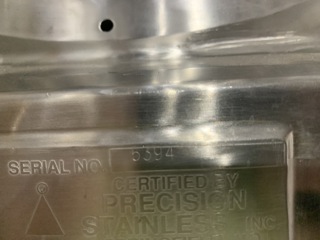

Manufacturer: Precision Stainless
Model: T-1200
Condition: Used
Material: Stainless Steel 316L
Capacity (Design): 2,498 L (660 gallons)
Internal Pressure: 3.7 bar (53.5 psi)
Internal Full Vacuum: Yes. Internal Temperature: 148.9 °C (300 °F). Sanitary Construction: Yes. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 1,219 mm (48 in). Straight Side Length: 2,007 mm (79 in). CIP: Yes. Support Type: Legs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Buss AG
Condition: Used
Material: Stainless Steel 316L
Capacity (Design): 4,174 L (1,103 gallons)
Internal Pressure: 80 bar (1,160 psi)
internal pressure 80 bar @ 230 deg C (4174ltr), jacket 20 bar @ 230 deg C (147ltr), 40mm thick straight side, 28mm thick top and bottom
(1) 167ltr 316L s/steel (1.4571) reactor, manufactured by Weigand & Wisser, fabrik #65, internal pressure 6 bar @ 120 deg C, jacket 8 bar @ 120 deg C, bolt dished top, weld dished bottom, 500mm diameter x 570mm straight side, 304 s/steel (1.4301) half pipe coil jacket, Ekato type PM-242 agitator drive, driven by 0.55 kw, 1390 rpm motor, openings top: 1-100mm, 1-80mm, 3-25mm, straight side: 1-25mm, 1-25mm (jacket), bottom: 1-25mm, 1-25mm (jacket), mounted on (2) lugs.
(1) 8.7 sqm c/steel tube, and shell vertical heat exchanger, manufactured by Weigand & Wisser, fabrik #67, pressure tube side 20 bar @ 300 deg C (62ltr), shell 20 bar @ 300 deg C (125ltr), (31) 30mm diameter x 2.5mm x 4m long c/steel tubes, shell 273mm diameter x 4245mm overall length, expansion bellows, (no heads), openings shell side 1-80mm, 1-50mm, mounted on (2) lugs.
(1) 60 sqm 316L s/steel tube, shell and head vertical heat exchanger, manufactured by Huls, fabrik #1201, pressure tube side: 83 bar @ 230 deg C (365ltr), shell 20 bar @ 230 deg C (538ltr), (139) 25mm diameter x 2.5mm x 6642mm long 316L s/steel tubes, 316L s/steel shell 457mm diameter x 7430mm overall length, expansion bellows, (2) 316L s/steel coned heads, (15) internal 316L s/steel baffle plates, openings tubeside: top head with 1-250mm, bottom head with 1-200mm, shell: 2-200mm, mounted on (2) lugs.
(1) 117 sqm c/steel tube shell and head vertical heat exchanger, manufactured by Weigand & Wisser, fabrik #68, pressure tube side 4 bar @ 100 deg C (570ltr), shell 20 bar @ 300 deg C (750ltr), (196) 25mm diameter x 2.5mm x 7.5m long tubes, shell 500mm diameter x 8235mm overall length, expansion bellows, (1) bonnet head, (1) dished head, openings tubeside bonnet head with 2-200mm, dished head with no openings, shell 1-200mm, 1-150m, mounted on lugs.
(1) 495ltr 316L s/steel (1.4571) vertical pressurel tank, manufactured by Metatec Gmbh, fabrik #8828/2, pressure -1/8 bar @ 100/20 deg C, weld dished top and bottom, 700mm diameter x 1124mm straight side, mounted on legs.
(1) 351 m3/hr @ 30 m hd 316L s/steel centrifugal pump, manufactured by Bieri Pumpenbau AG, fabrik #73/1146/9, type BM340/200/1, mechanical seal, driven by 55 kw, 3/50/500 volt, 1475 rpm Exd3nG4 motor, mounted on baseplate.
(1) 199.8 m3/hr @ 28 m hd c/steel centrifugal pump, manufactured by Bieri Pumpenbau AG, fabrik #73/121000002, type BM340/150/1, mechanical seal, driven by 37 kw, 3/50/500 volt, 1465 rpm Exd 3nG4 motor, mounted on baseplate.
(1) centrifugal pump, (1) Lewa diaphragm pump,(1) 1500ltr c/steel horizontal pressure tank, manufactured by Weigand & Wisser, fabrik #69, pressure 20 bar @ 300 deg C, 1m diameter x 1480mm straight side, weld dished ends, openings top: 1-500mm manway, 1-50mm, 2-25mm, 1-end with 2-25mm, 1-end with no openings, bottom: 1-250mm, 1-200mm, mounted on (4) lugs with legs.All parts TUV certified
Internal Temperature: 230 °C (446 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 4,770 mm (187.8 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Gale Process Solutions
Condition: New
Material: Stainless Steel 316L
Capacity (Design): 15,142 L (4,000 gallons)
Internal Pressure: 10 bar (145 psi)
NEW/UNUSED Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish "U" stamped 10 mm thick welded dish heads (2:1) 12 mm thick Coil: 114 mm OD x 4 mm thick Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm) Coil heating surface area With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug motor UL listed All nozzles have 304 SS flanges
Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Pfaudler
Condition: Used
Material: Stainless Steel 316L
Capacity (Design): 189.3 L (50 gallons)
Internal Pressure: 17.2 bar (250 psi)
Internal Full Vacuum: Yes. Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 9.3 bar (135 psi). Jacket Temperature: 315.6 °C (600 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Diameter: 609.6 mm (24 in). Straight Side Length: 571.5 mm (22.5 in). Support Type: Legs.
