Glasslined Pfaudler CTJ Tank - IPP# 247316

Type: Tank

Manufacturer: Pfaudler

Model: CTJ

Condition: Used

Material: Glasslined

Capacity (Design): 189.3 L (50 gallons)

Orientation: Vertical

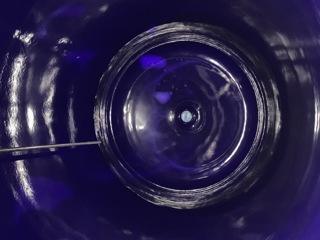

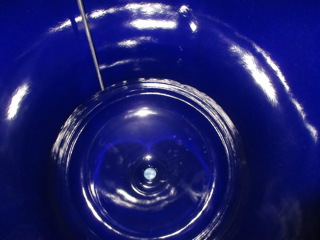

• Good fire polish, no visible plugs. Glass type 4015 Two "R" tags
• Full sanitary, top head polished to a mirror finish.
• Jacket has pressure relief valve

Diameter: 813 mm (32 in). Straight-side Length: 317.5 mm (12.5 in). Internal Pressure: 0.97 bar (14 psi). Internal Temperature: 232.2 °C (450 °F). Jacket Type: Standard. Jacket Material: Stainless Steel 304. Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Sanitary Contruction: Yes. Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 9,450 L (2,500 gallons)

Orientation: Horizontal

Diameter: 2,150 mm (85 in). Straight-side Length: 2,150 mm (84 in). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Orientation: Vertical

Diameter: 1,400 mm (56 in). Straight-side Length: 1,150 mm (46 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 176.7 °C (350 °F). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 378.5 L (100 gallons)

Orientation: Horizontal

Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 343.3 °C (650 °F). Support: Legs.
