double stage design, 0.098 barg (45mm vacuum), 16kW absorbed power, John Crane double mechanical seal

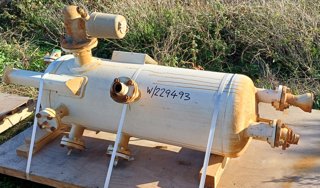

With (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (seal water cooler), manufactured by , design pressure tube side 5 bar @ 80 degrees C, shell 6.5 bar @ 80 degrees C, (26) 16mm diameter x 1.5mm x 3m long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 150mm diameter carbon steel shell, 3464mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
(1) 3.8m3/hr @ 20m head carbon steel centrifugal seal water pump, manufactured by Worthington Simpson, type 1 HNN 111, mechanical seal, mounted on a baseplate
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (pre-condenser), manufactured by , design pressure tube side 6 bar @ 70 degrees C, shell 5 bar @ 120 degrees C, (69) 19.05mm diameter x 1.5mm x 2300mm long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 250mm diameter carbon steel shell, mounted on fixed saddles

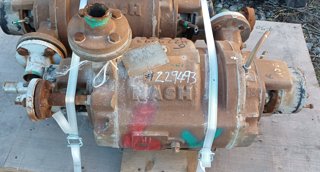

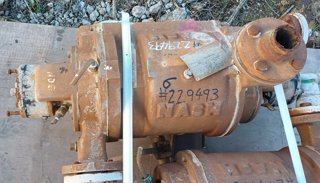

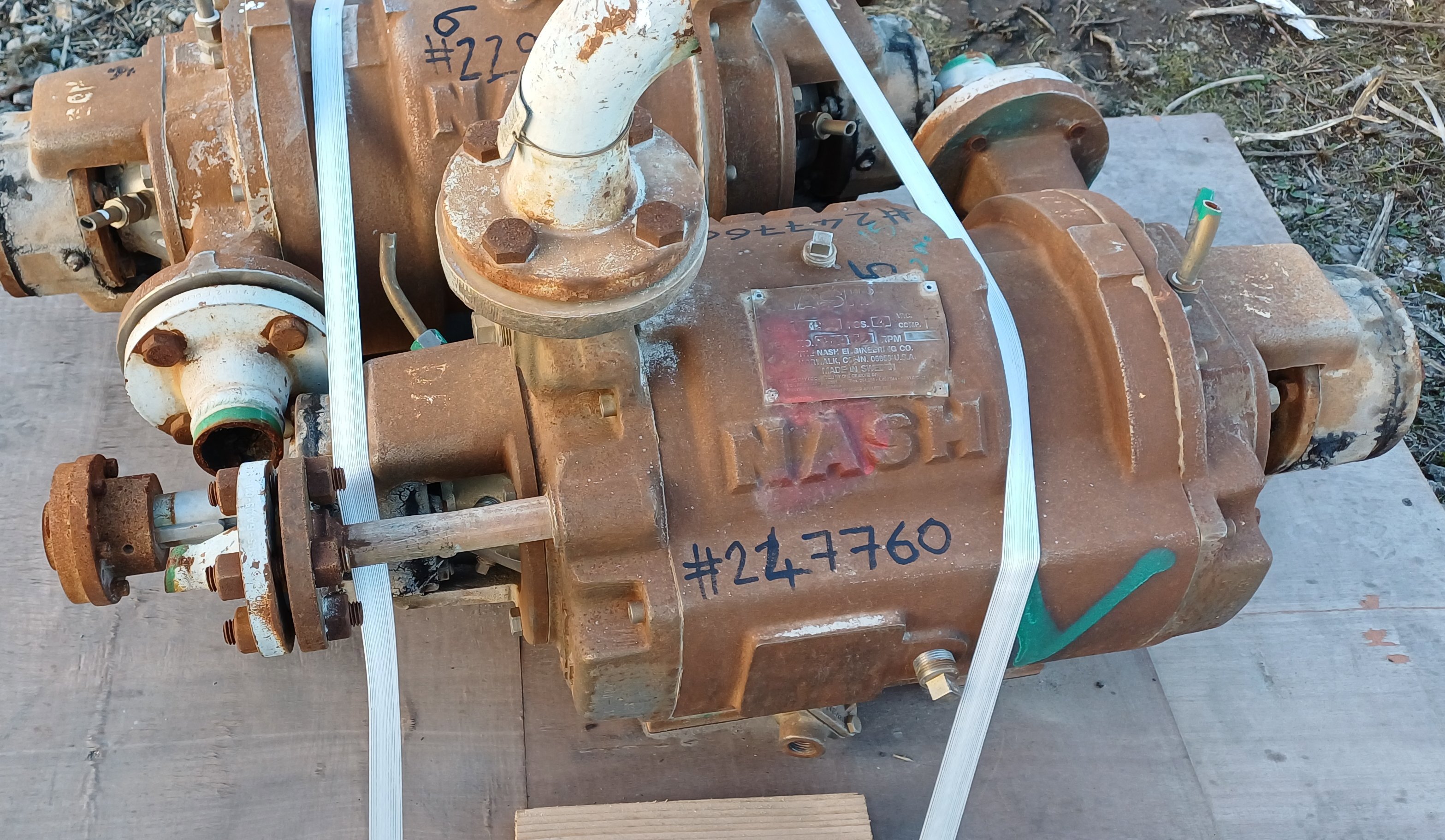

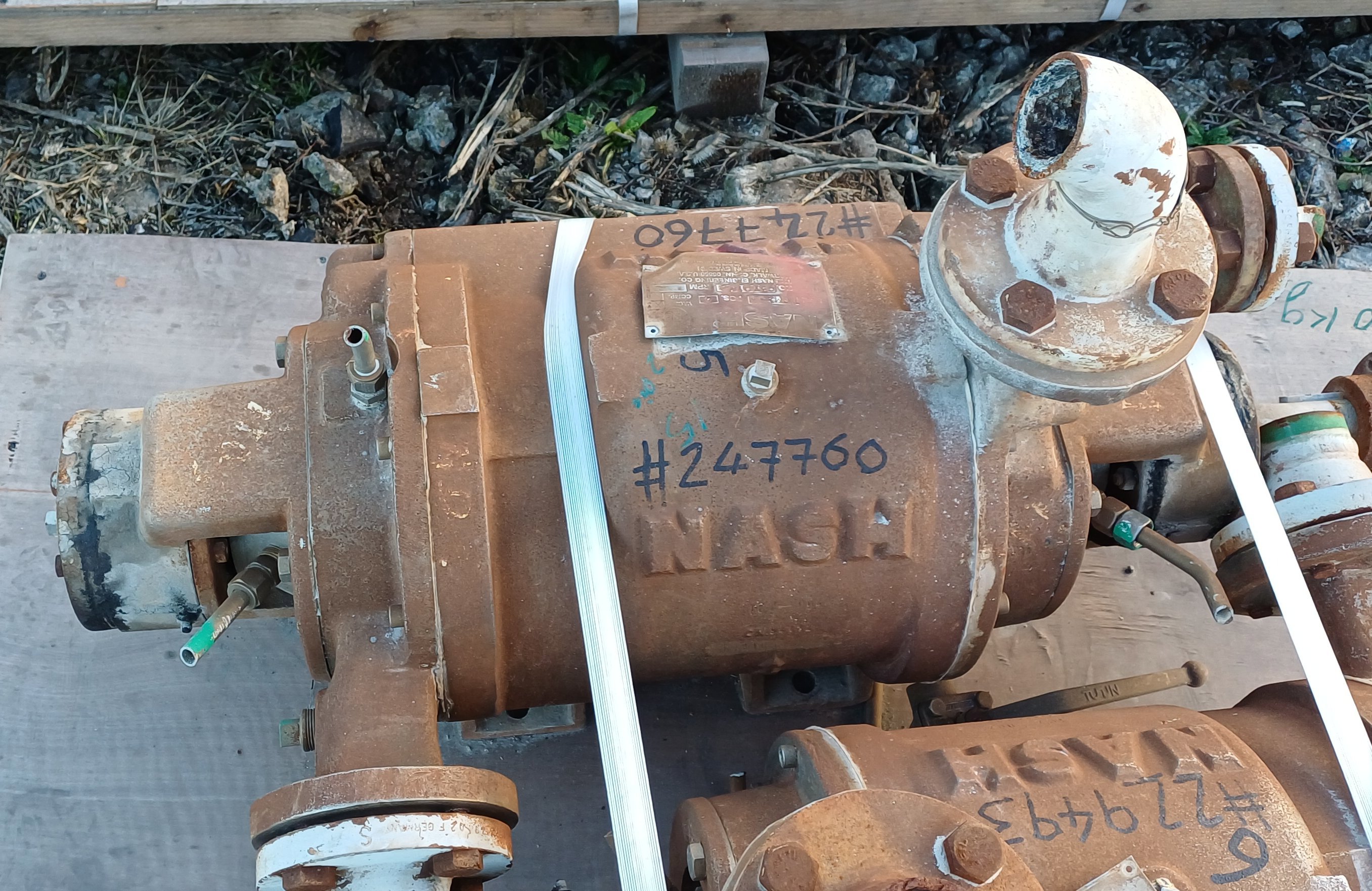

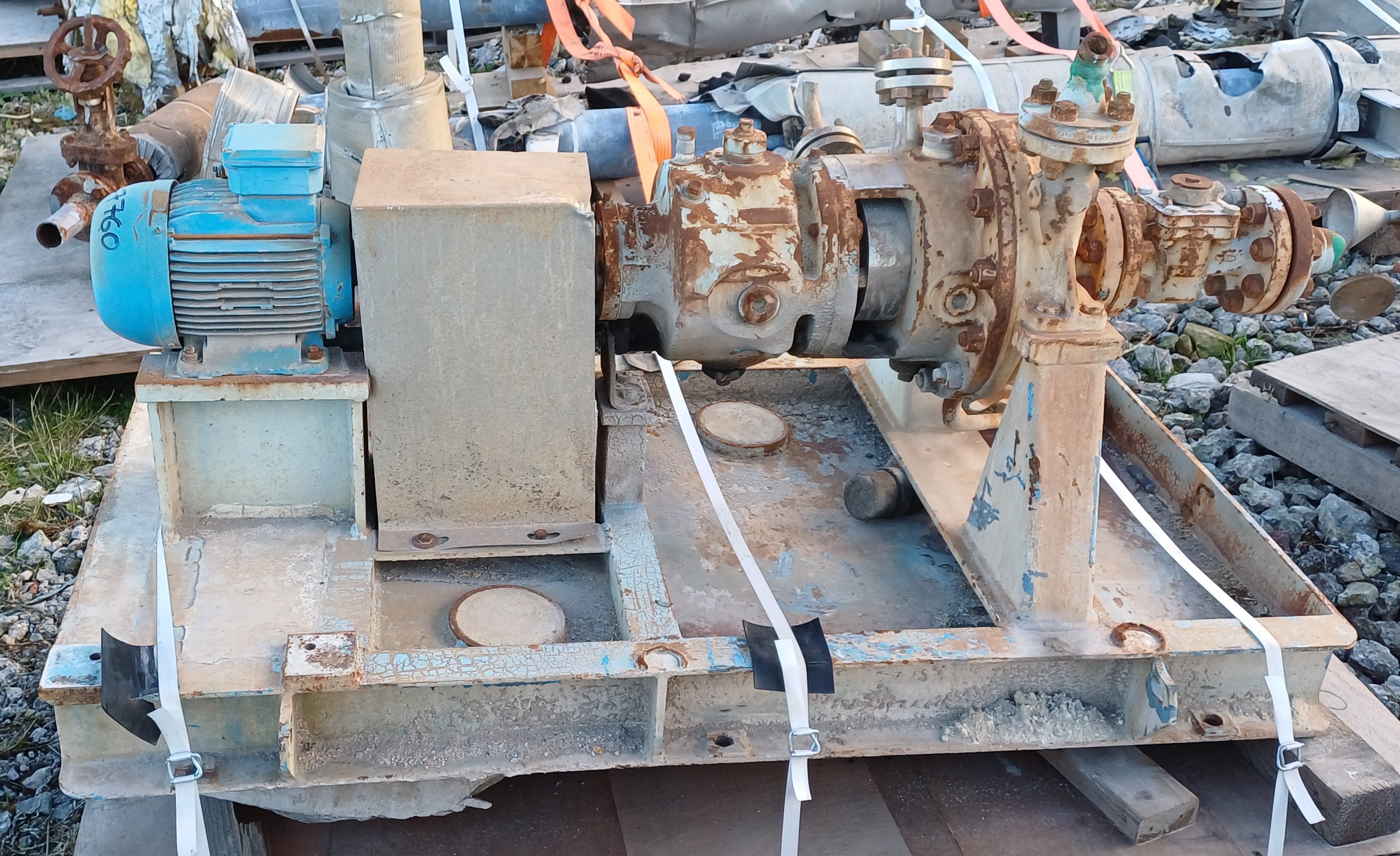

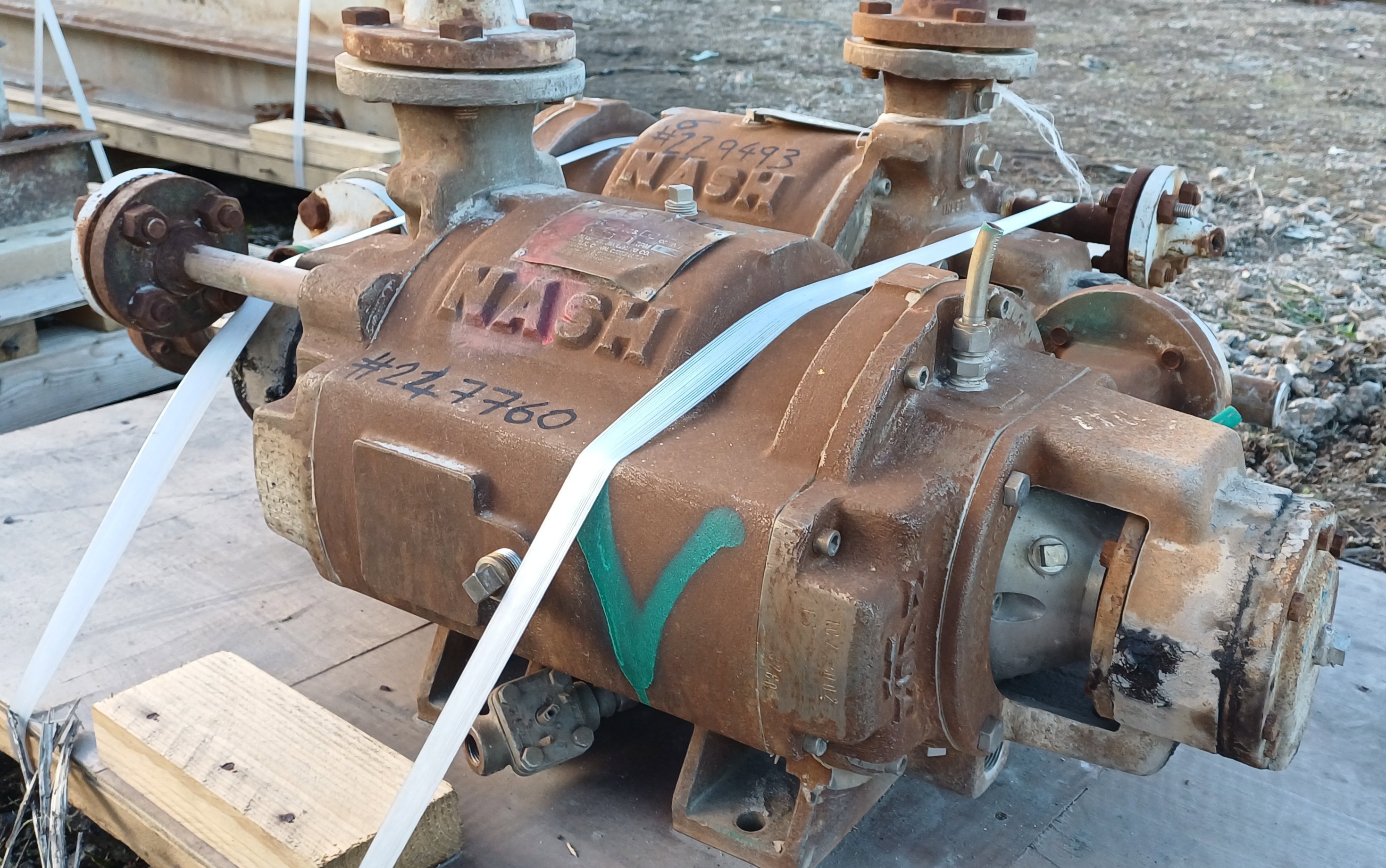

Type: Pump-Vacuum
Manufacturer: Nash
Model: TCM-2
Condition: Used
Material: Stainless Steel 316L
Air Flow: 380 m3/h (223.7 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
double stage design, 0.098 barg (45mm vacuum), 16kW absorbed power, John Crane double mechanical seal

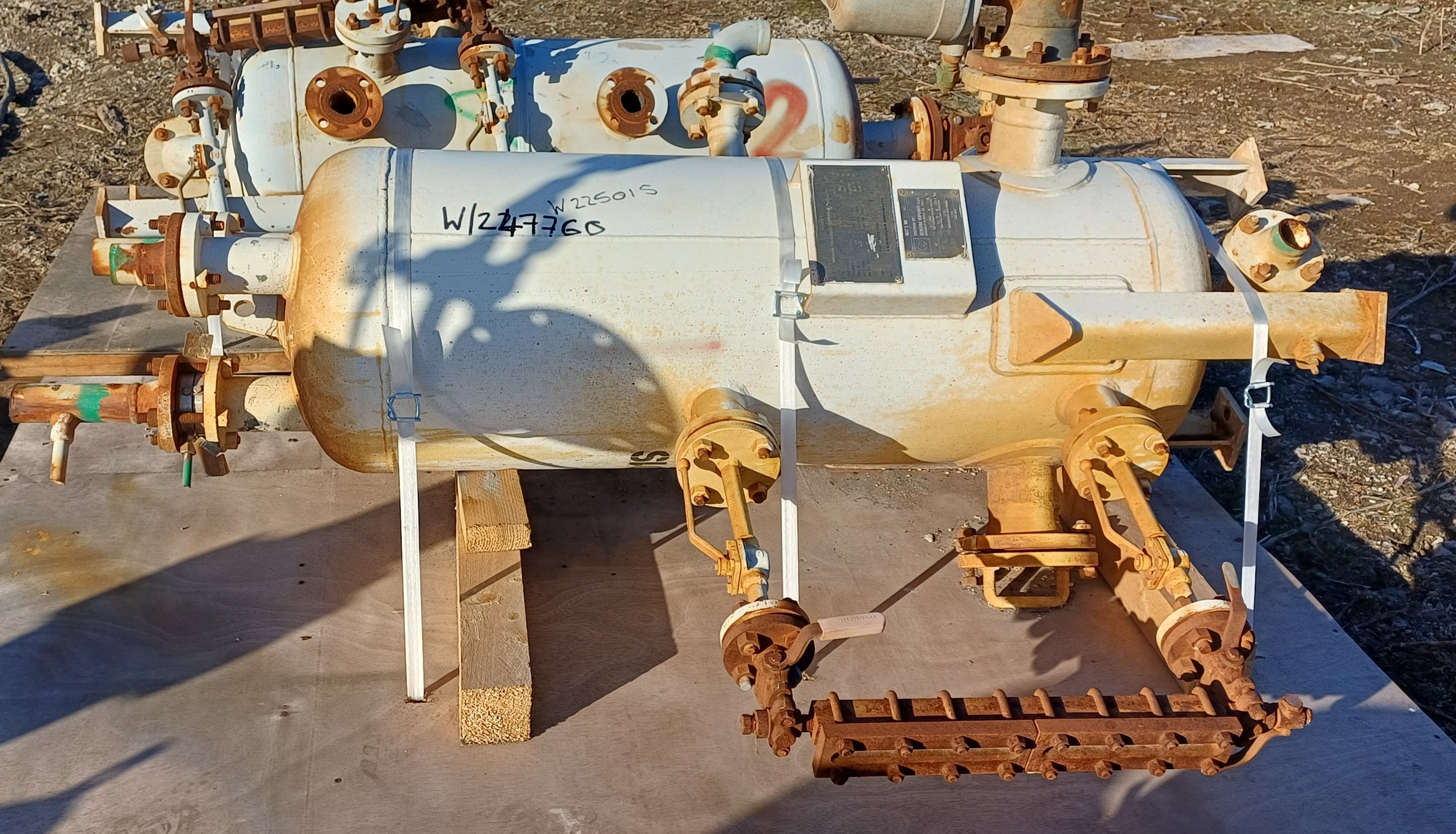

With (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (seal water cooler), manufactured by , design pressure tube side 5 bar @ 80 degrees C, shell 6.5 bar @ 80 degrees C, (26) 16mm diameter x 1.5mm x 3m long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 150mm diameter carbon steel shell, 3464mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
(1) 3.8m3/hr @ 20m head carbon steel centrifugal seal water pump, manufactured by Worthington Simpson, type 1 HNN 111, mechanical seal, mounted on a baseplate
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (pre-condenser), manufactured by , design pressure tube side 6 bar @ 70 degrees C, shell 5 bar @ 120 degrees C, (69) 19.05mm diameter x 1.5mm x 2300mm long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 250mm diameter carbon steel shell, mounted on fixed saddles
Orientation: Horizontal. Inlet Diameter: 50 mm (1.97 in). Outlet Diameter: 50 mm (1.97 in). Seal Type: Liquid Ring. Temperature: 50 °C (122 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 6,000 L/h (26.4 GPM).
Type: Pump-Vacuum
Manufacturer: Nash
Model: CL
Condition: Used
Material: Carbon Steel
Air Flow: 1,699 m3/h (1,000 CFM)
Discharge Pressure: 0.81 bar (11.8 psi)
24" hg Size: 1002 Test number: 7903116 Life Line T AC motor. Model TBDP Motor style: 6808122G31 Motor rating: 72 amps
Orientation: Horizontal. Inlet Diameter: 203.2 mm (8 in). Outlet Diameter: 101.6 mm (4 in).
Type: Pump-Vacuum
Manufacturer: Nash
Model: CL-2001
Condition: Used
Air Flow: 730 m3/h (429.7 CFM)
Orientation: Horizontal
without motor material A48 CL 30 B pressure suction side 1,5 bar sealing medium water
Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: Nash
Model: CL-703
Condition: Used
Material: Carbon Steel
Air Flow: 339.8 m3/h (200 CFM)
Orientation: Horizontal
liquid ring vacuum pump
Seal Type: Liquid Ring.
