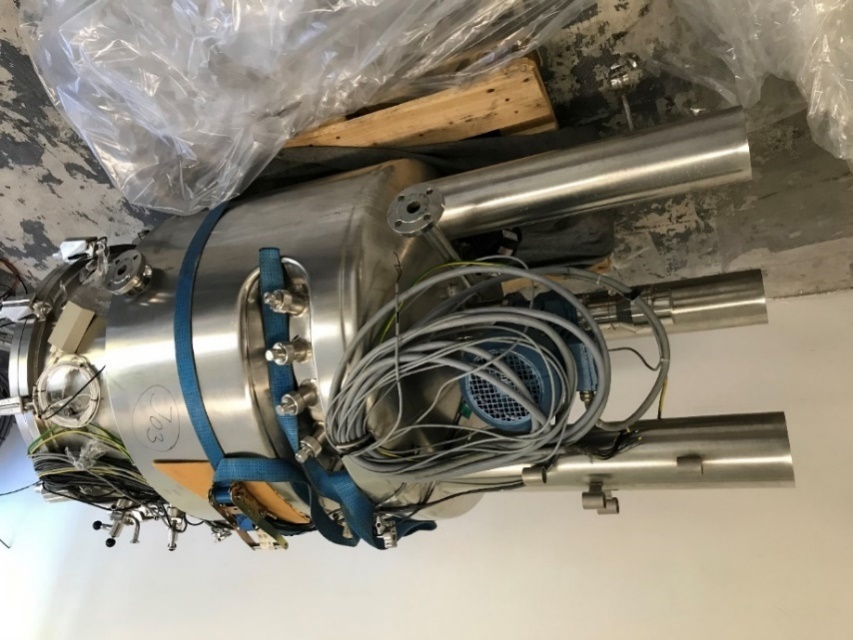

B. Braun + Diessel Biotech GmbH Batch-Type Agitated Bio Reactor - IPP# 247782

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: B. Braun + Diessel Biotech GmbH

Model: V-1700 D

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,700 L (449.1 gallons)

Internal Pressure: 3 bar (43.5 psi)

• 316L SS with mirror polish
• Biological reactor, bioreactor for biopharmaceutical with conventional double jacket, TUV Stamped. Vessel rated for -1/to +3 bar at 150 degrees C., Jacket rated for -1/to +3 bar at 150 degrees C., Top side flange mount vertical mixer, driving a single propeller mixer with three blades. Nord type SK901/4.TF Motor CE certified
• Repolished in 2009

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 1,060 mm (41.7 in). Straight Side Length: 1,600 mm (63 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: B. Braun + Diessel Biotech GmbH

Model: 1200 L

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,100 L (554.8 gallons)

Internal Pressure: 3 bar (43.5 psi)

• Repolished 2009
• Biological reactor bioreactor for biopharmaceutical with conventional double jacket TUV. Stamped Jacket capacity is 150 liters. Top side flange mount vertical mixer, driving a single propeller mixer with three blades Nord type SK901/4.TFMotor
• Six bottom side nozzles for pH, DO, PO probes etc. With spray ball(S) for CIP.

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,900 mm (74.8 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: B. Braun + Diessel Biotech GmbH

Condition: Used

Capacity (Design): 100 L (26.4 gallons)

Internal Pressure: 3 bar (43.5 psi)

• Clamps 10x M16-K
• Vessel Volume 166 liters Jacket volume 21 L

Internal Full Vacuum: Yes. Internal Temperature: 130 °C (266 °F). Sanitary Construction: Yes. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 130 °C (266 °F). Orientation: Vertical.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: B. Braun + Diessel Biotech GmbH

Condition: Used

Capacity (Design): 100 L (26.4 gallons)

Internal Pressure: 3 bar (43.5 psi)

• Clamps 10x M16K
• Vessel 166 Liter, Jacket 21 liter

Internal Full Vacuum: Yes. Internal Temperature: 130 °C (266 °F). Sanitary Construction: Yes. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 130 °C (266 °F). Orientation: Vertical.
