Batch-Type Agitated Reactor - IPP# 247785

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Sartorius

Model: Biostat

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 999.3 L (264 gallons)

Sanitary Construction: Yes

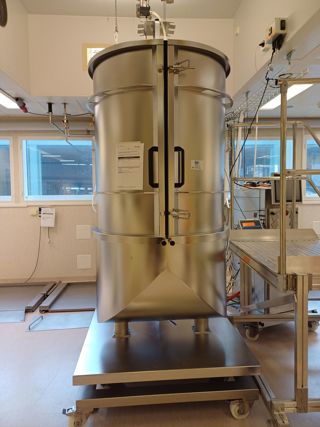

• Biostat STR-1000 DW, disposable bioreactor Skid mounted system with controls 1225 mm w x 1664 mm d x 2692 mm h. Footprint = 2.04 m2. Double wall, electro polished, double front door, one viewing window. Two hinges allow the door to open in the middle for bag replacement. Removable/Replacement bags have built in magnetic agitators internal to the bags.
• Two ports for sensors, top mounted drive, magnetic (agitator is inside the bag).

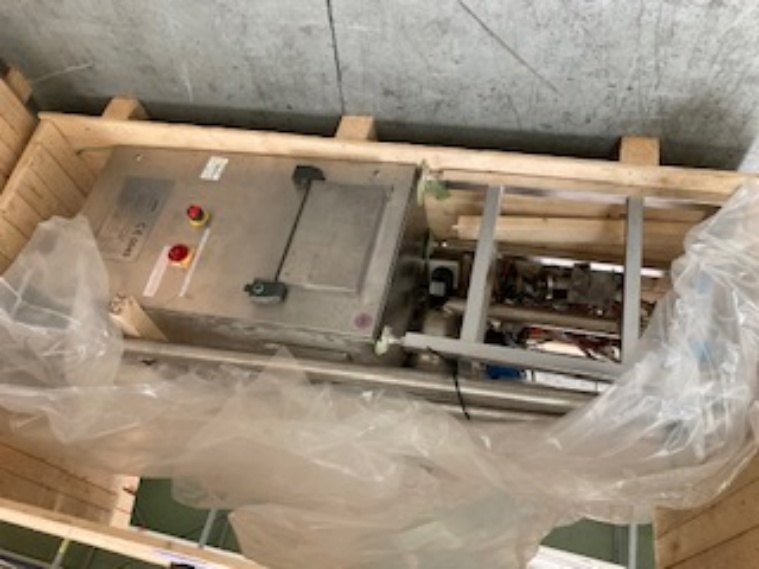

• Control tower 304 SS with a 22" touch screen. Power supply 400 vac/50 Hz/18A.With 90 rpm agitation module, and heating/cooling module. Rated for 8 degrees C above cooling water up to 40 degrees C, with over temperature protection, and 6 bar cooling water connection. Complete with Mass flow controllers, pumps, and measurement sensors.
• With a Watson Marlow 520 Du digital control variable speed peristaltic pump. Serial # 160321-053702.
• With Snyder Electric UPS system APC 750.

Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,664 mm (65.5 in). Support Type: Skid.
