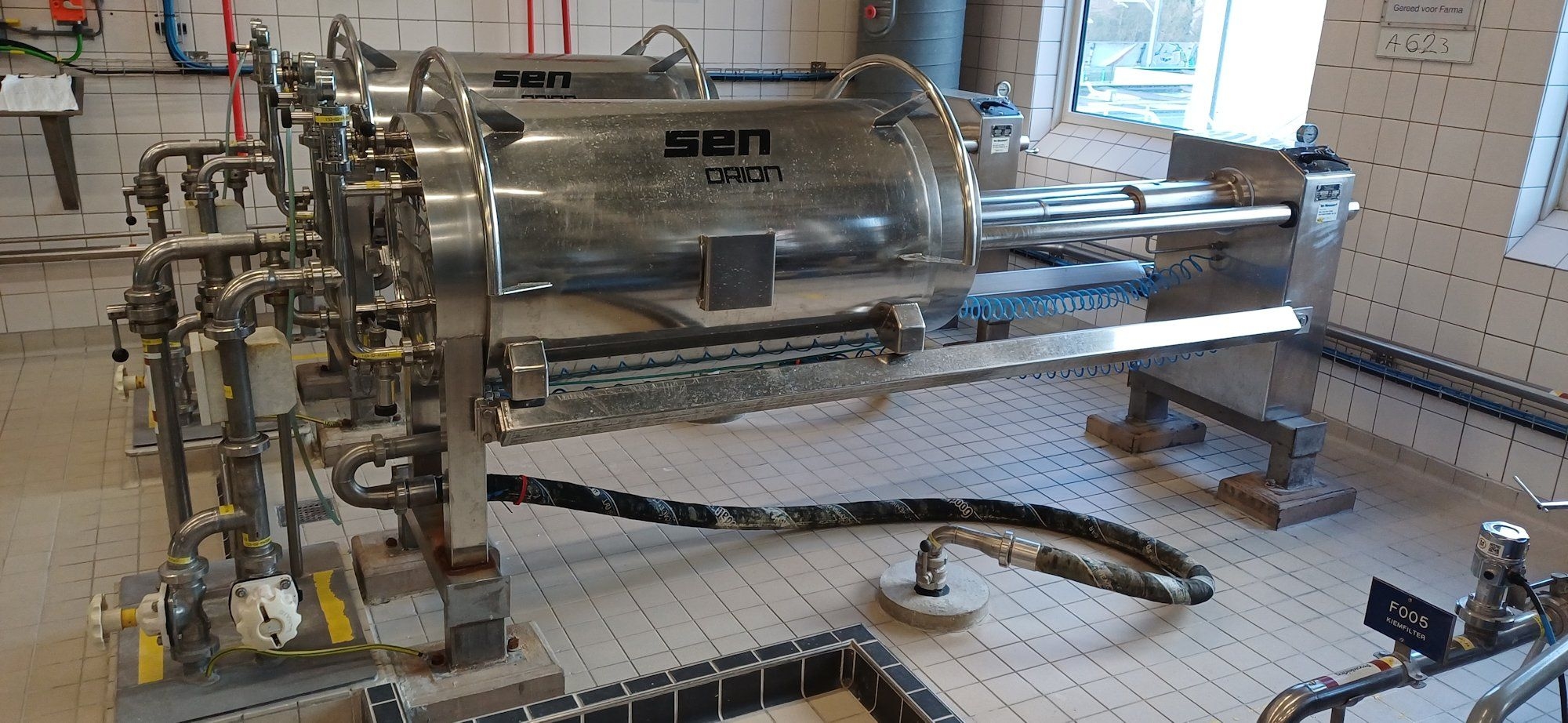

Fibre single use multi-layer (Germ) Filter Press - IPP# 248270

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: ORION OF 40 CDG

Condition: Used

Material: Fibre

Filtration Area: 9.3 m² (100.1 ft²)

Pressure: 1 bar (14.5 psi)

• 400mm x 400mm single use fibre/316L (1.4404) stainless steel multi-layer filter press (germ filter),
• internal pressure -1/1 bar @ -10/120 degrees C,
• 195 liter,
• single use fibre plates,
• plates are pressed inside a 316L stainless steel chamber,
• closed delivery design,

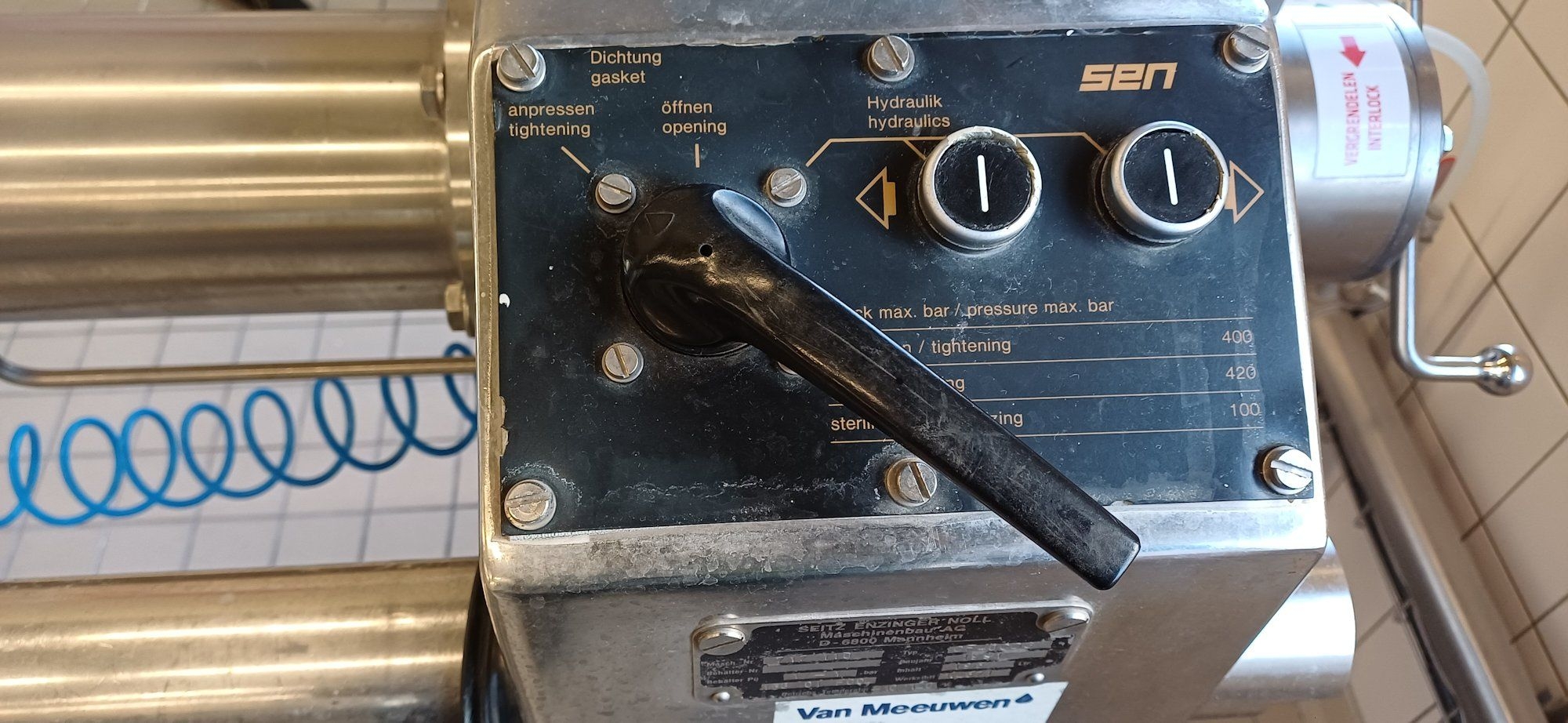

• manual hydraulic built on pressure mechanism,
• 316L stainless steel skeleton,
• The Orion CDG is a sterile layered-filter for de-germination and purification. The square filters are aligned in a block. The filter block is driven hydraulically and sealed mechanically. The filter has a protective cover that makes the filter block gas proof. The filter layers operate parallel causing any infiltrates to be filtered by one layer until clean. Solid materials and residue remain in the filter.

Temperature: 120 °C (248 °F). Number of Plates: 70. Plate MOC: Fibre. Skeleton MOC: 316L stainless steel. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press (4) eye
• Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Polypropylene. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press (2) end plates;(4) eye.
• Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 22. Number of Plates: 22. Plate MOC: Plastic. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

• Seitz Enzinger plate and frame filter press (4) eye
• Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.
