Filtration Area: 8.2 m² (88.2 ft²). Pressure: 6.2 bar (90 psi). Temperature: 190.6 °C (375 °F). Cake Volume: 0.03 m3 (0.95 ft3). Number of Frames: 11. Number of Plates: 12. Plate MOC: Stainless Steel 316L. Plate Diameter or Width: 609.6 mm (24 in). Plate Height: 609.6 mm (24 in). Plates Shifted By: Manual.
polypropylene recessed membrane plate high pressure filter press. open service, 4-eye openings. Hydraulic unit mfd by Double A 7.5 HP, 3/60/230/460 volt, 1745 rpm TEFC motor, 36" long x 24" deep x 24" high hydraulic oil reservoir. Complete w/control panel. Filtration Area: 171.9 m² (1,850 ft²). Number of Plates: 65. Plate Diameter or Width: 1,321 mm (52 in). Plate Shifter: Yes. Plates Recessed: Yes.
Polypropylene Membrane Plate filter press
Filter has (21) plates, (2) end plates,
50mm cake thickness before squeeze.
Closing pressure 280/300 bar, (3) eye center feed
5 kW / 220/380 V / 50 Hz, ex proof motor and pump.

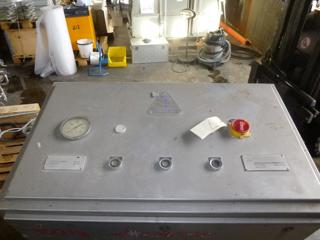

Control panel mounted on the filter Frame
Includes a Polypropylene stainless steel drip tray for under the plates. Filtration Area: 20 m² (215 ft²). Pressure: 8 bar (116 psi). Temperature: 20 °C (68 °F). Cake Volume: 0.49 m3 (17.3 ft3). Number of Plates: 21. Plate Diameter or Width: 799.8 mm (31.5 in). Plate Height: 799.8 mm (31.5 in). Plate Thickness: 49.8 mm (1.96 in).
(32) Klico 11-89 polypropylene filter plates with 700mm x 700mm x 15mm deep recess 75mm center feed with 15mm side plate discharge, 50mm thick plates, hydraulic plate press mechanism with built on open/close switch Filtration Area: 15.7 m² (169 ft²). Cake Volume: 0.45 m3 (16 ft3). Number of Plates: 32. Plate Diameter or Width: 700 mm (27.6 in). Plate Height: 700 mm (27.6 in). Plate Thickness: 50 mm (1.97 in). Plates Recessed: Yes.
filter press system (31) Lenser type 54880-KXE 01-1 recessed plates, (2) end plates recess is 1380mm x 1380mm x 25mm deep (4) 65mm diameter corner openings (1) 20mm diameter for air (membrane) discharge 280 bar (max)hydraulic press mechanism driven via a powerpack manufactured by ATH ref #1750 powerpack driven by a 2-speed motor, 5.5 kw, 3/50/230/380/400/415 volt, 1455/1460/1465 rpm or 6.6 kw, 3/60/440/460 volt, 1755/1760 rpm motor Automatic plate shifter for cake discharge driven by the same powerpack Leuze Lumiflex light curtain s/teel discharge chute which is the full length of the plate pack (1) 1m wide x 11.6m long rubber belt conveyor the last 3.8m of the belt is inclined c/steel side platforms with handrail Filtration Area: 17.9 m² (193 ft²). Pressure: 7 bar (101.5 psi). Temperature: 80 °C (176 °F). Cake Volume: 0.15 m3 (5.2 ft3). Number of Plates: 63. Plate Thickness: 89.9 mm (3.5 in). Plate Shifter Automatic: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.
Manual screw closure. 4-eye closed delivery. Openings: 4-2". Filtration Area: 12.8 m² (137.8 ft²). Cake Volume: 2,400 m3 (84,755 ft3). Number of Frames: 32. Number of Plates: 33. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in). Plate Thickness: 12 mm (0.47 in).
Currently set up as 2 cubic foot capacity with 187 sq.ft. of filtration capacity, but can be expanded or contracted. Manual closure with manual hydraulic assist. with four corner discharge Filtration Area: 17.4 m² (187 ft²). Cake Volume: 0.06 m3 (2 ft3). Number of Plates: 16. Plate Diameter or Width: 793.8 mm (31.3 in). Plate Height: 793.8 mm (31.3 in). Plate Thickness: 76.2 mm (3 in). Plates Recessed: Yes.
recessed plate filter press. 2 end plates, 50 mm center feed, motorized hydraulic closure. Filtration Area: 16 m² (172 ft²). Cake Volume: 0.1 m3 (3.5 ft3). Number of Plates: 28. Plate MOC: Plastic. Plate Diameter or Width: 500 mm (19.7 in). Plate Height: 500 mm (19.7 in). Plates Recessed: Yes.
filter press complete with 53 chambers of mixed pack membrane plates/recessed plates with (1) head plate, weight 122 kg and (1) endplate, To be top center feed, 4 corner closed discharge, Filter has 27 membrane plates,weight piece 111 kg and 26 recessed plates, weight piece 86 kg, plates manufactured by JV Kunstoffwerk GmbH, material of membrane EPDM. 50mm cake thickness before squeeze. Filter rated 6 bar @ 20 to 70 degrees C. Hydraulic closer rated 6/170 bar @ 90 degrees C, Filtration Area: 18.3 m² (197.4 ft²). Pressure: 6 bar (87 psi). Temperature: 70 °C (158 °F). Cake Volume: 5 m3 (178 ft3). Number of Plates: 53. Plate Diameter or Width: 1,450 mm (57.1 in). Plate Height: 1,450 mm (57.1 in). Plates Recessed: Yes.
stainless steel recessed plate and polypropylene frame filter press (2) eye top and bottom feed/discharge stainless steel skeleton, hydraulic press mechanism with built on powerpack and manual controls Filtration Area: 17.5 m² (188.4 ft²). Cake Volume: 2,000 m3 (70,629 ft3). Number of Frames: 28. Number of Plates: 27. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in). Plate Thickness: 50 mm (1.97 in). Plates Recessed: Yes.
321 stainless steel (1.4541) frames, Filtration Area: 14.7 m² (158.2 ft²). Pressure: 8 bar (116 psi). Temperature: 80 °C (176 °F). Cake Volume: 13.5 m3 (476.7 ft3). Number of Frames: 21. Number of Plates: 22. Plate MOC: Stainless Steel 321. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in).
@ 20/40 degrees C, 321 stainless steel (1.4541) frames, Filtration Area: 14.7 m² (158.2 ft²). Pressure: 6.5 bar (94.3 psi). Temperature: 40 °C (104 °F). Number of Frames: 21. Number of Plates: 22. Plate MOC: Stainless Steel 321. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in).
polishing filter press. 4 eye design. Manual handwheel closure. Filtration Area: 13 m² (140 ft²). Number of Plates: 48. Plate MOC: Stainless Steel Other. Plate Diameter or Width: 406.4 mm (16 in). Plate Height: 406.4 mm (16 in).

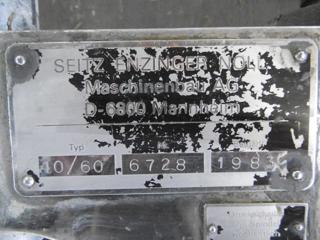

Seitz Enzinger plate and frame filter press with (4) eye. Manual Screw closure Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
recessed plate filter press, complete with (25) chambers (1) head plate, 5 eye, closed delivery. 32mm cake thickness. single pneumatic hydraulic ram closure mechanism. (completely pneumatic operation, no electric, good for hazardous environments). Filtration Area: 8.8 m² (94.3 ft²). Pressure: 6.9 bar (100 psi). Temperature: 82.2 °C (180 °F). Plate MOC: Stainless Steel 304. Plate Diameter or Width: 469.9 mm (18.5 in). Plate Height: 469.9 mm (18.5 in). Plates Recessed: Yes.
321 stainless steel (1.4541) frames manual hydraulic closure Filtration Area: 8 m² (86.1 ft²). Pressure: 8 bar (116 psi). Temperature: 80 °C (176 °F). Number of Frames: 10. Number of Plates: 12. Plate MOC: Stainless Steel 321. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in).
Seitz Enzinger plate and frame filter press (2) end plates;(4) eye. Manual Screw closure Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 22. Number of Plates: 22. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
Seitz Enzinger plate and frame filter press (4) eye Manual Screw closure Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
30mm thick cake, 2 end plates center feed open delivery. hydraulic closure rated 650 bar, cylinder 200mm dia. Filtration Area: 31.1 m² (335 ft²). Cake Volume: 0.38 m3 (13.5 ft3). Number of Plates: 49. Plate Diameter or Width: 629.9 mm (24.8 in). Plate Height: 629.9 mm (24.8 in). Plates Recessed: Yes.
non gasketed recessed plate filter press 1 & 3 button 2 eye open delivery With single hydraulic piston closer Includes rubber belt conveyor that runs the length of the press for cake removal. Filtration Area: 209 m² (2,250 ft²). Cake Volume: 3.8 m3 (134.2 ft3). Number of Plates: 95. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 79.8 mm (3.1 in). Plates Recessed: Yes.
Side bar design with semi automatic plate shifter four eye discharge washing plates with ¼” recess Press can be upgraded to 100 cu ft cake capacity and 2079 sq. ft. filtration area with additional plates Single hydraulic piston press Bottom mounted chain driven screw conveyor for cake discharge with safety trip wire Filtration Area: 89 m² (958 ft²). Pressure: 6.9 bar (100 psi). Cake Volume: 1.26 m3 (44.4 ft3). Number of Plates: 37. Plate MOC: Plastic. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 50.8 mm (2 in). Plate Shifter Automatic: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.

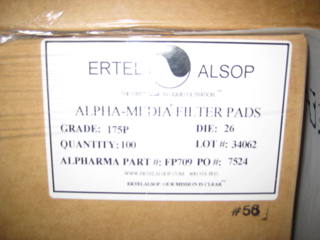

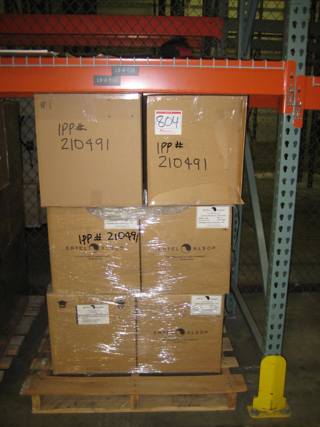

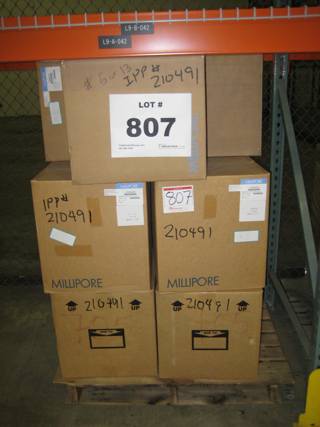

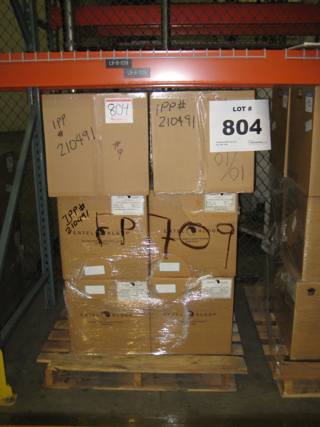

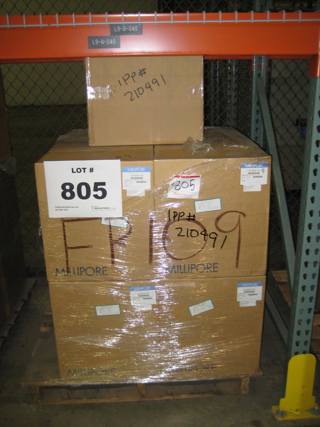

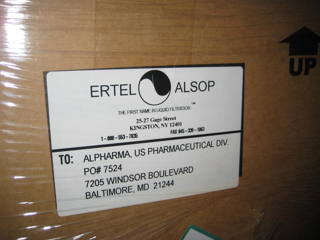

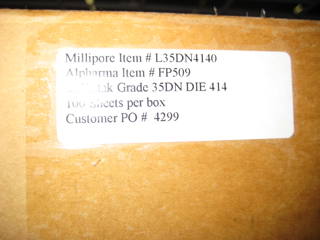

Four lots assorted filter media for polishing press', 15" x 15" and 16" x 16". see IPP stock numbers below. Lot numbers 804, 805, 806, & 807. Media by Ertel Grade 175 P, Die #26 Lot # 34062. Media by Millipore MSTK, 35DN die # 414 Millipore Item # L30DN 4140.
Ex 11 2G c 1B T4 (17) 615mm wide x 720mm high x 40mm thick plastic frames 495mm wide x 577mm high frame recess, 0.194 cubic meter cake capacity (4) 35mm corner openings, 316 stainless steel skeleton Pressure: 5 bar (72.5 psi). Temperature: 85 °C (185 °F). Cake Volume: 0.19 m3 (6.9 ft3). Number of Frames: 17. Number of Plates: 16. Plate MOC: Plastic. Plate Diameter or Width: 615 mm (24.2 in). Plate Height: 720 mm (28.3 in). Plate Thickness: 26 mm (1.02 in).
EP plastic plate and frame filter press CE, Ex II 2G c IIB T4 (12) EP plastic plates, (11) EP plastic frames with an internal 495mm wide x 577mm high opening, (4) 35mm diameter corner openings hydraulic driven press mechanism with built on power pack, 316 stainless steel rip tray under plates/frames, 316 stainless steel skeleton Pressure: 6 bar (87 psi). Temperature: 140 °C (284 °F). Cake Volume: 126 m3 (4,450 ft3). Number of Frames: 11. Number of Plates: 12. Plate MOC: Plastic. Plate Thickness: 26 mm (1.02 in).
Operating pressure 7/15 bar. 4 eye, With red and blue button plates for washing. Filtration Area: 2.5 m² (26.5 ft²). Pressure: 15 bar (217.6 psi). Cake Volume: 0.07 m3 (2.4 ft3). Number of Plates: 15. Plate Diameter or Width: 470 mm (18.5 in). Plate Height: 470 mm (18.5 in). Plate Thickness: 75 mm (3 in). Plates Recessed: Yes.
recessed/membrane Polypropylene plate filter press (13) recessed plates, recess is 430mm x 430mm x 15mm deep, (12) non recessed membrane plates (these have attachment for air discharge) manual hydraulic press mechanism, manufactured by Magna pumps, 50-685 bar pressure, single screw, 50mm center feed, (4) 40mm corner discharge, plastic drip tray under plates, c/steel skeleton Pressure: 685 bar (9,935 psi). Number of Plates: 13. Plate Diameter or Width: 500 mm (19.7 in). Plate Height: 500 mm (19.7 in). Plate Thickness: 68 mm (2.7 in). Plates Recessed: Yes. Plates Shifted By: Manual.
with Lenser polypropylene non-gasketed recessed plates type KCE (51) chambers 40mm cake thicknes corner feed with 3 eye closed delivery 3300 psi hydraulic closing pressure. with US Filter/Siemens air over oil hydraulic pump with a 15 gallon oil reservoir requires 80 scfm @ 100 psi air supply. Filtration Area: 119 m² (1,281 ft²). Pressure: 6.9 bar (100 psi). Cake Volume: 2.1 m3 (75 ft3). Plate MOC: Plastic. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plates Recessed: Yes.
Sanitary feed lines 304SS pan With operational paperwork water proof enclosure and operational status tags. Number of Frames: 14. Number of Plates: 14. Plate Diameter or Width: 406.4 mm (16 in). Plate Height: 406.4 mm (16 in). Plate Thickness: 9.4 mm (0.37 in).
Heresite coated plate and frame filter press Size 36 (4) eye corner feed closed delivery with (33) chambers 1 & 3 button plates 1.5" thick with hydraulic pump Filtration Area: 47.8 m² (515 ft²). Cake Volume: 0.62 m3 (22 ft3). Plate Diameter or Width: 914.4 mm (36 in). Plate Height: 914.4 mm (36 in). Plate Thickness: 38.1 mm (1.5 in).
filter press with Polypropylene plates and frames and all Stainless Steel skeleton. 95 plates with 44 chambers 4 eye closed delivery, 1" inlet and outlet. Manual closure with Hydraulic Assist manufactured by SPX. Filtration Area: 37 m² (398.3 ft²). Cake Volume: 462 m3 (16,315 ft3). Number of Plates: 90. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in).
Polypropylene plates and frames and all Stainless Steel skeleton. 44 chambers. 4 eye closed delivery, 1" inlet and outlet. Manual closure with Hydraulic Assist manufactured by SPX. Filtration Area: 37 m² (398.3 ft²). Cake Volume: 0.46 m3 (16.3 ft3). Number of Plates: 90. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in).
Kom #740.213 (25) membrane plates, (24) recessed plates, (2) end plates, 20 mm deep recess, (4) corner 50mm discharge, 100mm center feed, cake thickness: 35 mm, single screw press mechanism driven by a hydraulic power pack driven by: 3~220V/380V 9,6A/5,5A 2,5kW, 1410rpm, EEx e II T1-T3, plate shifter, light curtain, (1) Netsch Nemo-4NE-30A rotary screw pumps, (2) plastic diaphragm pumps, (2) Polypropylene vertical tanks, 1.2m diameter x 1.4m high, weld flat top, weld sloped bottom, (1) Polypropylene vertical tank, 2.2m diameter x 1.6m high, weld flat top, weld sloped bottom, (1) main control panel Filtration Area: 61.2 m² (658.8 ft²). Pressure: 6 bar (87 psi). Number of Plates: 51. Plate Diameter or Width: 910 mm (35.8 in). Plate Height: 910 mm (35.8 in). Plate Shifter: Yes. Plates Recessed: Yes.
plates manufactured by JVK, type 7876, (4) 75mm corner openings, 100mm centre top feed 17- plates with taps, single screw hydraulic closure, plate shifters, Number of Plates: 36. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 75 mm (3 in). Plate Shifter: Yes. Plates Recessed: Yes.

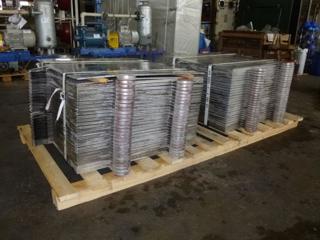

polishing plate filter press with (199) 316 s/steel polishing plates hydraulic press mechanism driven by hydraulic powerpac which is built into a control cabinet. 2 -80mm openings on plates Stainless Steel skeleton, includes (1) Photometer, manufactured by Sigrist, s/steel walkway platform with steps and handrail Pressure: 8 bar (116 psi). Number of Plates: 199. Plate MOC: Stainless Steel 316. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in).
polishing plate filter press hydraulic press mechanism driven by hydraulic powerpac which is built into a control cabinet 2 -80mm openings on plates, Stainless Steel skeleton includes (1) Photometer, manufactured by Sigrist, s/steel walkway platform with steps and handrail Pressure: 8 bar (116 psi). Number of Plates: 111. Plate MOC: Stainless Steel 316. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in).
Seitz Enzinger plate and frame filter press (4) eye Manual Screw closure Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
Seitz Enzinger plate and frame filter press (4) eye. Manual Screw closure Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
Seitz Enzinger plate and frame filter press .(4) eye. Manual Screw closure Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
Seitz Enzinger plate and frame filter press with (2) end plates (4) eye Manual Screw closure openings (2) DN50 Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 20. Number of Plates: 21. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
Seitz Enzinger plate and frame filter press (2) end plates (4) eye. Manual Screw closure. Filtration Area: 5.2 m² (55.4 ft²). Pressure: 6 bar (87 psi). Number of Frames: 20. Number of Plates: 21. Plate MOC: Plastic. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in).
Polypropylene filter press Size 12 2 eye corner feed With (13) 2 button frames 9.5"ID x 8" ID x 1" thick. (14) plates - (8) are 1 button with nozzles, (7) are 3 button washing type. Manual closure, Portable design Pressure: 6.9 bar (100 psi). Number of Frames: 13. Number of Plates: 14. Plate Diameter or Width: 241.3 mm (9.5 in). Plate Thickness: 25.4 mm (1 in).
non gasketed recessed plate filter press (95) Lenser plates 1 & 3 button 2 eye open delivery With single hydraulic piston closer. Includes rubber belt conveyor that runs the length of the press for cake removal. Filtration Area: 209 m² (2,250 ft²). Cake Volume: 3.8 m3 (134.2 ft3). Number of Plates: 95. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 80 mm (3.1 in).
(2) end plates recess 700mm x 700mm x 7mm deep, 70mm center feed, 50mm 4-corner discharge, hydraulic press mechanism Number of Plates: 35. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plate Thickness: 45 mm (1.77 in). Plates Recessed: Yes.
skeleton only 4-corner closed discharge Unit has an electric motor closure, driven by 4 KW, 940 rpm Plate Diameter or Width: 860 mm (33.9 in). Plate Height: 1,160 mm (45.7 in).
Manual screw closure. 4-eye closed delivery. Filtration Area: 12.8 m² (137.8 ft²). Cake Volume: 2,400 m3 (84,755 ft3). Number of Frames: 32. Number of Plates: 33. Plate Diameter or Width: 600 mm (23.6 in). Plate Height: 600 mm (23.6 in). Plate Thickness: 12 mm (0.47 in).
rubber/polypropylene membrane recessed plate filter press 1295mm x 1295mm x 25mm deep recess With exchangeable soft rubber squeezing membrane 4 1/2" center bottom feed 4-corner discharge 1/2" outlet on each plate. Squeeze mechanism with double acting hydraulic cylinder. Complete with hydraulic powerpak driven by 3 KW, 3/60/220/380 volt, 1410 rpm motor. Unit with chain driven plate shifter for separation, driven by 1 HP, 3/50/220/380 volt, 21.5 rpm geared motor. Filtration Area: 134.6 m² (1,448 ft²). Pressure: 16 bar (232.1 psi). Cake Volume: 3,500 m3 (123,601 ft3). Number of Plates: 40. Plate MOC: Plastic. Plate Diameter or Width: 1,450 mm (57.1 in). Plate Height: 1,450 mm (57.1 in). Plate Shifter: Yes. Plates Recessed: Yes.
123 chambers. Plates are made from non-reinforced, molded, pressure-resistant polypropylene. Cake thickness is 32 mm. Filter frame is heavy duty construction from A-36 steel with Stainless steel covered side rails assembly to support the filter plate stack. Closing device is hydraulic and automatic. The press is furnished with recessed chamber plates in center feed design with closed filtrate discharge and filtrate discharging through four corner ports. Filtration Area: 290.2 m² (3,124 ft²). Pressure: 15.5 bar (225 psi). Cake Volume: 5.6 m3 (196.8 ft3). Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plates Recessed: Yes.
twin screw plate closure wtih control panel, driven by 7.5 kw, 3/50/415 volt, 1450 rpm motor, 80mm center feed, (4) 50mm corner discharge, 1 side of press with Sick light curtain, Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plates Recessed: Yes.
recessed membrane filter press. recest membran plates, pmeumatic cake discare, With overhead plate shifter driven by a 0,55 kW (Ex) motor, 3 ph/50Hz/1400-18 UPM. Hydraulic press closer, powered by a 2.5 kW (Ex) 3ph /50 Hz/ 1500 UPM motor. Total space for chambers 2500 mm. Filtration Area: 37.9 m² (408 ft²). Pressure: 15 bar (217.6 psi). Cake Volume: 0.6 m3 (21.2 ft3). Number of Plates: 36. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plate Thickness: 66 mm (2.6 in). Plate Shifter: Yes. Plates Recessed: Yes.
filter press skeleton only. W/4-eye closed delivery. 4150mm space for plates. Equipped with Howe hydraulic powerpak, Pressure: 6.2 bar (89.5 psi). Plate Diameter or Width: 1,219 mm (48 in). Plate Height: 1,219 mm (48 in).
1200mm x 1200mm polypropylene recessed plate filter press. plates manufactured by Vohwinkel. Hydraulic closure pressure 230 bar. Top center feed, 4 eye closed discharge. Filtration Area: 82.9 m² (892.3 ft²). Pressure: 6 bar (87 psi). Cake Volume: 1,400 m3 (49,440 ft3). Number of Plates: 36. Plate MOC: Plastic. Plate Diameter or Width: 1,100 mm (43.3 in). Plate Height: 1,100 mm (43.3 in). Plate Thickness: 15 mm (0.59 in). Plates Recessed: Yes.
recessed filter press. 62.4 sq meter filter area, can be expanded to (60) plates (96 sq meter). 4 eye center feed, Motorized hydraulic closure. Rated 170-200 bar. W/ safety mirrors, Cake thickness approx 30 mm. Filter volume approx 0.88 cu meter. Filter plates are suspended from an overhead beam. Filtration Area: 62.4 m² (671.7 ft²). Pressure: 6 bar (87 psi). Number of Plates: 39. Plate MOC: Plastic. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes.
Membrane filter press, hydraulic driven by Siemens 500 V 50 Hz 4,2 A 1410 rpm EEx e II. Cake Volume: 2.8 m3 (100 ft3). Number of Plates: 53. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 80 mm (3.1 in).
recessed plate filter press. Closing powermax 100 tons. hydraulic closure pressure 250/280 bar. w/20 mm recess, 3-eyes, W/2.2 KW motorized hydraulic closure. W/red and blue buttons. Filtration Area: 82.9 m² (892.3 ft²). Pressure: 6 bar (87 psi). Number of Plates: 36. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 20 mm (0.79 in). Plates Recessed: Yes.
Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge, Unit has an air over oil compensating pump. Filtration Area: 3.2 m² (34.8 ft²). Cake Volume: 0.03 m3 (1.2 ft3). Plate MOC: Plastic. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes.
Plates manufactured by JVK. 4-eye, Open/closed delivery. With wash plates, manuel screw closure, red and blue buttons. With bottom TRoulett equipped with screw discharge for cake, driven by Bauer 1.5 KW, 3/50/220/380 volt, 1420 rpm motor. End plate has on top 3-50 mm nozzles;1-50 mm on side. Mounted on drip tray is a Mueller clamp-on agitator, driven by 0.27 KW, 3/50/380 volt, 1430 rpm motor. Filtration Area: 45.8 m² (493 ft²). Cake Volume: 0.71 m3 (25 ft3). Number of Plates: 46. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plate Thickness: 18.8 mm (0.74 in). Plates Recessed: Yes.
4-eye closed delivery, Manual closure. Filtration Area: 1.3 m² (14 ft²). Cake Volume: 0.82 m3 (29 ft3). Number of Frames: 10. Number of Plates: 8. Plate Diameter or Width: 177.8 mm (7 in). Plate Height: 177.8 mm (7 in). Plate Thickness: 25.4 mm (1 in).
recessed filter plates only, 3 eye, side botom discharge, open/closed delivery, 1.04 cubic meter cake capacity With red & blue buttons (washing plates). Filtration Area: 34.5 m² (371.4 ft²). Pressure: 6 bar (87 psi). Cake Volume: 1,040 m3 (36,727 ft3). Number of Plates: 40. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 85 mm (3.3 in). Plates Recessed: Yes.
recessed filter press. 62.4 sq meter filter area, can be expaned to (60) plates (96 sq meter). 4 eye center feed. Motorized hydraulic closure. Rated 170-200 bar. W/safety mirrors, Cake thickness approx 30 mm. Filter volume approx 0.88 cu meter. Filter plates are suspended from an overhead beam. Filtration Area: 62.4 m² (671.7 ft²). Pressure: 6 bar (87 psi). Number of Plates: 39. Plate MOC: Plastic. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes.
(30) chambers, 5 eye, closed delivery. Filtration Area: 44 m² (473.6 ft²). Cake Volume: 0.02 m3 (0.82 ft3). Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in).

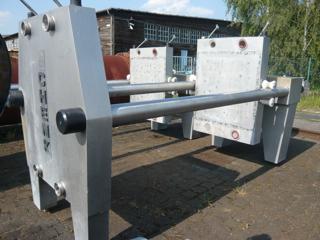

Skeleton Only. Has round side rails. Plate Diameter or Width: 914.4 mm (36 in). Plate Height: 914.4 mm (36 in).
polypropylene plate and frame filter press 4 eye closed delivery. Hydraulic closure on press. Number of Plates: 6. Plate Diameter or Width: 609.6 mm (24 in). Plate Height: 609.6 mm (24 in).
Polypropylene plates and frames and all Stainless Steel skeleton. approximately38 chambers. 4 eye closed delivery, 1" inlet and outlets. Manual closure with Hydraulic Assist manufactured by SPX. Filtration Area: 33 m² (355.2 ft²). Cake Volume: 0.46 m3 (16.3 ft3). Number of Plates: 80. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in).
(42) recessed plates with red and blue buttons for washing, (2) end plates. 2.25 cubic meter cake capacity. 4-eye top center feed, closed delivery. motorizzed hydraulic closure pressure 270 bar. Filtration Area: 96.7 m² (1,041 ft²). Pressure: 6 bar (87 psi). Cake Volume: 2.2 m3 (79.5 ft3). Number of Plates: 44. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plates Recessed: Yes.
(42) recessed plates with red and blue buttons for washing, (2) end plates 2.25 cubic meter cake capacity 4-eye top center feed, closed delivery, motorized hydraulic closure pressure 270 bar. Filtration Area: 96.7 m² (1,041 ft²). Pressure: 6 bar (87 psi). Cake Volume: 2,250 m3 (79,457 ft3). Number of Plates: 44. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plates Recessed: Yes.
(16) chambers, 1.72 cubic meter cake capacity 2-eye top side feed, Red and blue buttons (washing plates).34.5 Filtration Area: 3.2 m² (34.5 ft²). Pressure: 6 bar (87 psi). Cake Volume: . Number of Plates: 40. Plate Diameter or Width: 1,500 mm (59.1 in). Plate Height: 1,500 mm (59.1 in). Plate Thickness: 84.8 mm (3.3 in). Plates Recessed: Yes.
Process Filtration involves the separation of solids from fluids (liquids or gases) or the removal of contaminants within a fluid. This technology is crucial in industries like chemical, pharmaceutical, and oil and gas, ensuring product purity, compliance with environmental regulations, and protection of downstream processing equipment. International Process Plants (IPP) offers a variety of different types of used and new surplus process filters. Here's a detailed explanation of how each type of filter works along with some major original equipment manufacturers:
Air Filters:
Basket Filters:
Cartridge and Candle Filters:
Horizontal Belt Filters:
Nutsche Filters and Nutsche Filter Dryers:
Pan Filters:
Plate and Frame Filters:
Pressure Leaf Filters:
RO and Ultra RO Filtration Systems:
Rosenmund and Cogiem Filters:
Rotary Vacuum Filters:
Tower Filters:
These manufacturers are recognized for their robust technologies and are widely used across various industries due to their reliability and innovative designs.
Let IPP know what you're looking to accomplish and we will be happy to help you determine which filter is right for your application.
Used Filters Filtration is the separation of a fluid-solids solution involving the passing of this mixture through a porous barrier which retains most of the solid particulates contained in the mixture. The various terms used in filtration processes include: Media – the filtration cloth or barrier to collect the solids, Liquor – the solution containing the liquid and solids, Filtrate – the liquid that has been filtered clear, Cake – the solids filtered out of the liquid, Polishing – the removal of the last bit of solids for a finished liquid product, Washing – pumping water or a wash liquid over the cake, Pre-coat – coating the filter cloth with a material like diatomaceous earth to aid in the filtering. The liquor is either pushed through the filter under pressure or pulled through the filter under vacuum. The types and configurations of filters vary widely; each has its own method of filtering, its own method of discharging the filtrate and discharging the cake. Depending on the product, sometimes the filtrate is the desired product and other time the cake is the desired product. Filters are measured by the square foot surface area available for filtering, and the cubic foot cake capacity. Type of Filters: • Plate and Frame Filter Press – this is an assembly of plates covered with a filter cloth and frames designed to collect the cake, held together in a press with that has a head plate and tail plate – the press is closed by a hydraulic pump, or manually in small presses. The plates and frame can be made of many types of materials, polypropylene is popular. Many times the press has “recessed plates” where two plates form a cavity for collecting cake eliminating the frame. Filter presses must be opened and the plates separated to remove the cake. • Pressure Filters – These are batch filters that push the liquor through the filter under pressure. Once the cake capacity is reached the cake must be removed before you continue the process. All pressure filters consist of a vessel with internal filter plates or cloths. o Basket, Candle, & Cartridge filters - This type of filter has a tank with an internal basket with a cloth bag, or filter cartridges, mounted inside the tank. o Vertical Tank with Horizontal plate filters - Once the plates are full of cake the cake must be removed. In smaller filters like a Sparkler filter, the plate bundle is remove manually, in larger filters like a Shenk or Funda filter the plate bundle is rotated at a high rpm to use centrifugal force to throw the cake off the plates and remove cake from the bottom of the tank. o Horizontal Tank Vertical plate filters – the cake can be removed by shaking the plates, spraying the plates with high pressure water, or scraping the cake off as the plate bundle rotates. • Vacuum filters – These include rotary drum filters and horizontal belt filters. Both are continuous operations. o Rotary Drum filters – these are horizontal drums with perforated exteriors covered with a filter cloth and internal vacuum pipes that are designed to be partially submerged in a trough of liquor. The internal vacuum pipes create suction on the outside of the drum. As the drum rotates the liquor is pulled through the filtrate cloth and the cake is form on the outside of the drum. Before the cake dips back into the trough it is removed from the drum by a scraper or belt discharge. o Horizontal Belt filters – The liquor is spread onto one end of a horizontal perforated belt covered with a filter cloth. A vacuum is pulled under the belt creating suction on top. As the product is conveyed along the moving belt the filtrate is pulled through the belt perforations, leaving the cake on top. When the cake reached the end of the belt it basically drop off or is scrapped off the filter cloth. o Pan filters – Like a belt filter with a moving filter cloth and suction underneath, this filter replaces the belt with a series of vacuum pans that extract the filtrate while the cake is conveyed along the filter cloth. • Rosenmund Type – The major manufacturers of this type of filter are Cogiem and Rosenmund. Also known as Filter/Dryers and Nutche filters. This type of filter is typically pressure and vacuum rated internally, heated with a jacket, and has an agitation system that double as a cake discharge screw, and for added drying, the shaft of the agitator can be cored for heating and cooling. Depending on the process this type of filter can take the place of a reactor, a filter, and a dryer, all in one machine. The basic design is a large diameter tank, with a screen in the bottom head, top mounted agitator drive that can raise and lower the internal blades during different cycles. When the process is finished the agitator is lowered to scrape along the filter screen, a cake discharge valve is opened, the agitator scrapes the cake out of the filter/dryer. The newer machines have a removable bottom head so the filter screens can be removed and the bottom head cleaned without any type of tank entry. Filter/dryers are measured by the Square Meter of filter screen area. • Tower Filters – Similar to a filter press in filtration techniques. The tower press has horizontal plates with a continuous cloth woven in and out of the plates. During filtration the plate stack is closed and during discharge the plate stack is opened and the cake is conveyed out of the pres by the filter cloth. Eliminates the manual labor use to clean filter presses. IPP carries an extensive inventory of used, unused and reconditioned filters in stock including filters manufactured by: 3-L, 3V COGEIM, Acme, ACME INDUSTRIAL, Alar, Alar Auto, Alar Engineering, Allegheny Bradford, Alsop, AMERICAN FILTER, AMETEK, AMF, Amicon, Andritz, Apache, APV, Ashbrook, Aurora, AURORA FILTERS, Avery, BAEUERLE & MORRIS, BAEUERLE & MORRIS INC, Baeurle & Morris, BALSTON FILTER, BIRD, BIRD YOUNG, Cambridge, CARLSON, Carter Day, Chemap AG Funda, Chemap Ltd, CHICAGO BOILER, Chicago Boiler Co., Choquenet, Clow, Cogeim, COGEIM SPA, Comber, COMER, Commercial, Commercial Filter Corporation, COMMERCIAL FILTERS, COMMERCIAL FILTERS CORPORATION, CP 1200 F, CULTER, CUNO, CUNO/MARTIN PETERSON, CUTLER METAL PRODUCT, DELAVAL, Dorr Oliver, Durco, DURCO ENZINGER, Durco/Enzinger, Durion, Duriron, Edward & Jones, Eimco, ENVIRONMENTAL TECH, Enviroquip, Ertel, ERTEL/ALSOP, EUROFILTEC, Extract Technology, Filler Specialties, Filter Specialists, Filterdyne, Filterite, FILTRATEC, Filtration & Separat, Filtration & Separation, Filtration Eng., Filtration Engineers, Filtration Systems, Filtroba AG, Filtrox-Werk, Flexline, Flow Trend, FRANTZ FERRO, FSI, Fulflo, GAF, GELMAN SCIENCES, GENERAL FILTRATION, Guedu, Harmsco, Haward, Hercules, HERCULES FILTER, Hoechst, HOESCHT, Hovex-Holland, Ideal Welders Ltd, Idrex, IMECA, Industrial, Industrial Filter, International, Jaygo, JWI, Ketema, KETEMA NIAGARA, KLAMPRESS 8/90, Klein, Komline Sanderson, Lanco, Larox, Larox-Pannevis, Lee Ind, LEE INDUSTRIES, LS10-BO-6, MECHANICAL FILTRATION, MEMTEC, Met-Chem, Millipore, Netzsch, Niagara, NIAGRA, Nivoba, Northland, NORTHLAND STAINLESS, NUTSCHE, Oberlin, OPF 4, OPF-12, OPF-4, Padovan, Padovan Taylo, Pall Corp, PALL TRINITY, Pannevis, Parker, PARKER HANNIFIN, PARKER/FULFLO FILTER, Parkson, Passavant, Perrin, Powder Systems, POWDER SYSTEMS LTD, Pressofiltro, Quantum Technologies, Romicon, Ronningen, RONNINGEN PETTER, RONNINGEN-PETTER, RONNING-PETTER, Rosedale, ROSEDALE PRODUCTS, ROSENMUND, RP Products, RT 0575, RUSSELL FINES, Russell Finex, Saltec, Sartorius, SARTORIUS STEDIM, Schenk, Seitz, SEITZ ENZINGER, Seitz Orion, Seitz Wega, Sernagiotto, Shriver, Sietz, Sietz Enzinger Noll, SLF Inc, SPARKLER, Sparkler Filter, SPARKLER FILTERS, Sperry, Standard, Star, Star Systems, Steri Technologies, Stossier, STRAINRITE, Strainrite Inc, STRAINRITE INC., Strassburger, Sweco, T. SHRIVER & CO. INC, Technical Fabricator, Thompson, Trent, TRI-CLOVER, Triton, US Filter, USF Filtration, Valex, Velo, Vernay, Vevey, Von, Von Roll, Waterlink Lanco, Westech, WESTECH ENGINEERING, William Sprinkman, WWE, Yabuta, Zurn, ZURN INDUSTRIES, Zwag .
