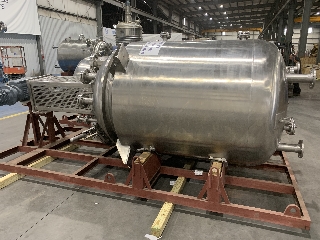

New Hastelloy - C22 Stalwart International Batch-Type Agitated Reactor - IPP# 249235

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With Thermowell and dip pipe
• Internal finish: buff polish 240 grit
• External finish Buff polish 180 grit

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,002 mm (78.8 in). Straight Side Length: 2,402 mm (94.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 15,142 L (4,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation, 304 SS sheathing completely sealed to 0.4 bar.
• Externals buff polished to 180 grit.
• With thermowell & dip tube.

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 22,712 L (6,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation , 304 SS sheathing completely sealed to 0.4 bar
• Externals buff polished to 180 grit.
• With thermowell & dip tube.

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,810 mm (111 in). Straight Side Length: 4,321 mm (170 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 1,893 L (500 gallons)

Internal Pressure: 9.79 bar (142 psi)

• Fiberglass Insulation with 5 mm 304 SS cladding.
• Limpet Coil 80 NB x 4 mm thick, 125 mm pitch bottom dish + 80% of the shell.
• Agitation Sweep PBT=600 mm, tickler =480 mm.
• External polished to a 180 grit.

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 9.79 bar (142 psi). Jacket Temperature: 232 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,194 mm (47 in). Straight Side Length: 1,651 mm (65 in). CIP: Yes.
