Dryer-Twin Shell & Double Cone 0.57 m3 (20 ft3) Stainless Steel 304 For Sale - IPP# 28830

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Patterson Kelly

Condition: Used

Material: Stainless Steel 316

Capacity Design: 0.17 m3 (6 ft3)

Capacity Operating: 0.14 m3 (5 ft3)

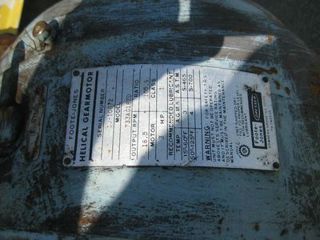

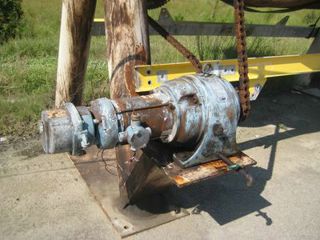

twin shell dryer with gear head motor

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Patterson Kelly

Condition: Used

Material: Stainless Steel 316

Capacity Design: 5 m3 (176.6 ft3)

Capacity Operating: 2.8 m3 (100 ft3)

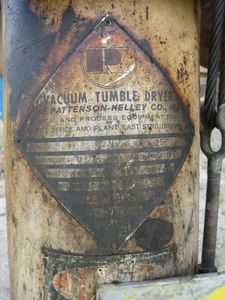

• Vacuum tumble dryer system. Designed for 50 Lbs/ cubic foot density.
• Dryer driven by 10 HP 3/60/460V XP motor with Reeves variable speed drive.

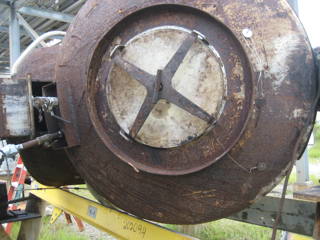

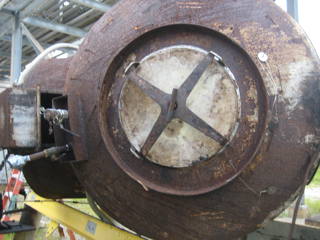

• With (2) 18" diameter charge ports, 1-18" diameter discharge port with pneumatic operated valve.
• Equipped with skid mounted vacuum system including a Graham two stage water seal vacuum pump model 2PV52120/12/43/1, driven by 10 HP 3/60/460V 1760 RPM motor. A horizontal 125 square foot 316 stainless steel tubes, tube sheets, heads, carbon steel shell heat exchanger, and a 225 gallon 316 stainless steel condensate receiver. W-202093.

Vessel Temperature: 121.1 °C (250 °F). Jacket Pressure: 2.1 bar (30 psi). Jacket Temperature: 121.1 °C (250 °F). Full Vacuum: Yes. Product Density: 1.42 m3 (50 ft3).

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Patterson Kelly

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.8 m3 (100 ft3)

Capacity Operating: 2.1 m3 (75 ft3)

• Tumble vacuum dryer system. Designed for 50 lb./cu ft product weight Driven by 10 HP 3/60/460V, 1750 RPM motor through Reeves variable speed drive(2)18" charge ports, 1-18" discharge port with pneumatic operated valve Skid mounted vacuum system consists of a Graham type 2PV 52120/12/43/1 two stage water seal vacuum pump driven by 10 HP 3/60/460V, 1760 RPM motor. 102 Sq. ft., Horizontal stainless steel tubes, tube sheets, heads, steel shell heat exchanger, 150 gallon jacketed stainless steel condensate receiver with all gas contact surfaces of stainless steel skid mounted electric source heating system ( 250 degrees F at 30 psi) contains an 80KW electric immersion heater, single suction centrifugal pump, expansion tank, and a cooler.(PK heat exchanger, liquid to liquid). W202094 stored at DW12 (S). JB

Jacket Pressure: 2.1 bar (30 psi). Jacket Temperature: 121.1 °C (250 °F). Full Vacuum: Yes. Product Density: 1.42 m3 (50 ft3).

Type: Dryer-Twin Shell & Double Cone

Condition: Unused

Material: Stainless Steel 304

Capacity Design: 0.28 m3 (10 ft3)

Capacity Operating: 0.19 m3 (6.6 ft3)

doors for a PK dryer. 21" diameter by 1/8" thick, 2 have clamps. Each door has a five inch opening and a 1.25" sanitary connection. Three doors are available.
