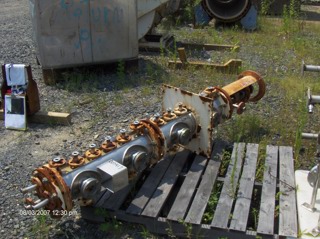

IPP# 33884 - Contactor Column 457.2 mm (18 in) Stainless Steel 316 For Sale

Type: Column

Subtype: Contactor

Manufacturer: Kuhni

Model: 722399

Condition: Used

Material: Hastelloy - C276

Diameter (1): 152.4 mm (6 in)

Diameter (2): 152.4 mm (6 in)

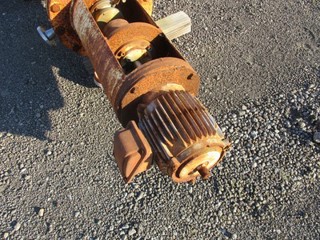

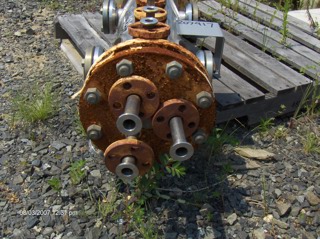

Agitated Seperation for liquids seperation Fabrication # 722399 jacket rated for 29 psi at 329 degrees F volume of the jacket is 2.5 gallons Motor drive flange is 11" Drive shaft is 1" SS shaft has a flex coupling Column has eight sight glasses (four on each side)

Length (overall): 111.8 mm (4.4 in). Pressure: 2 bar (29 psi). Temperature: 165 °C (329 °F).

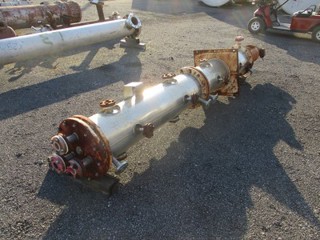

Type: Column

Subtype: Contactor

Manufacturer: Kuhni

Condition: Used

Material: Hastelloy - C276

Diameter (1): 304.8 mm (12 in)

Diameter (2): 304.8 mm (12 in)

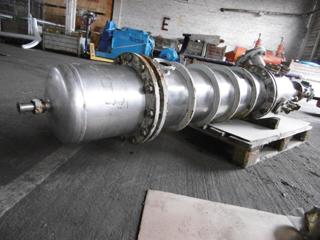

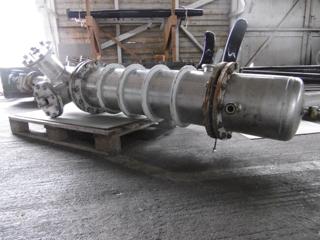

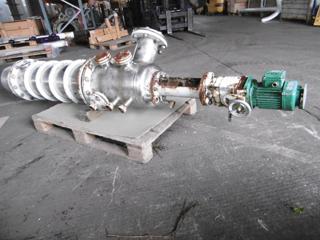

with a 304 SS jacket Extraction Contactor Column Built to code four stages solid separation. Jacket rated 2 bar @ 200 C Column outside diameter is 13" with jacket. Column built in three sections, one 30", one is 26" and one is 56" long. motor with mechanical seal

Length (overall): 3,050 mm (120 in). Pressure: 2 bar (29 psi). Temperature: 200 °C (392 °F). Packing Material: Other.

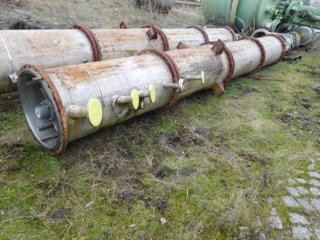

Type: Column

Subtype: Contactor

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Other

Diameter (1): 320 mm (12.6 in)

Pressure: 2 bar (29 psi)

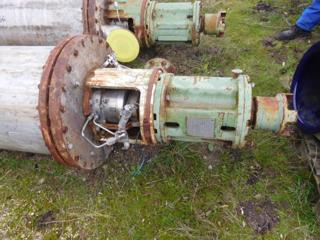

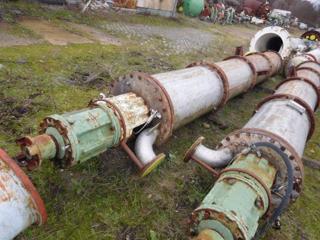

12 stages agitated extraction column R25/4 (75-375 infinitely variable) Double mechanical seal, type Crane 109/109, Driven by a 0.25kW electrical motor manufactured by BBC type eQUx71MA4, 3~/50Hz/220-380V/1400rpm EX proof (ExeG3) (2) bolt dished heads

Vacuum: Yes.

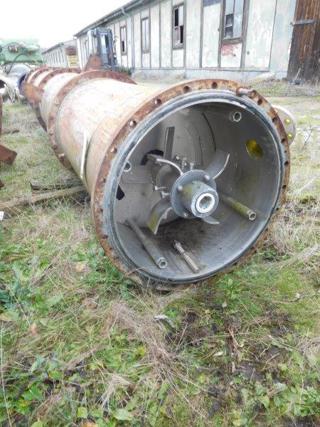

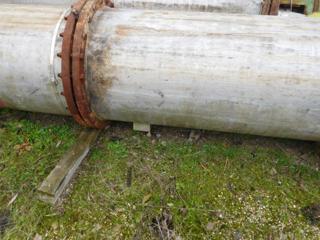

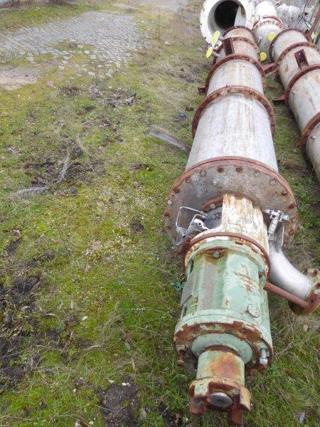

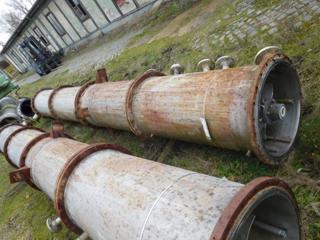

Type: Column

Subtype: Contactor

Manufacturer: Kuhni

Condition: Used

Material: Glasslined

Diameter (1): 700 mm (27.6 in)

Diameter (2): 700 mm (27.6 in)

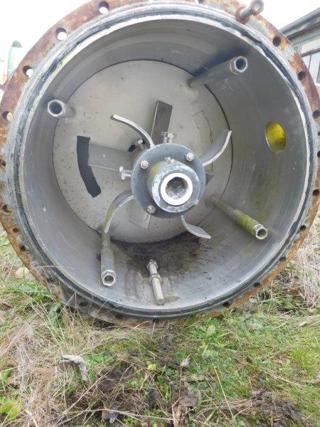

• rotating disc extraction column with Hastelloy C22 shaft and discs
• 18 stages for liquid liquid extraction,
• jacket 7 barg + full vacuum @ 200 degrees C (250 liter)
• IP55 EEx d IIB T4n motor
• straight side is made up of 1-1505mm high section and 1-3120mm high section (with discs)
• (19) internal partition discs
• John Crane double mechanical seal with lubricator

Length (overall): 7,800 mm (307.7 in). Pressure: 7 bar (101.5 psi). Vacuum: Yes. Temperature: 200 °C (392 °F).
