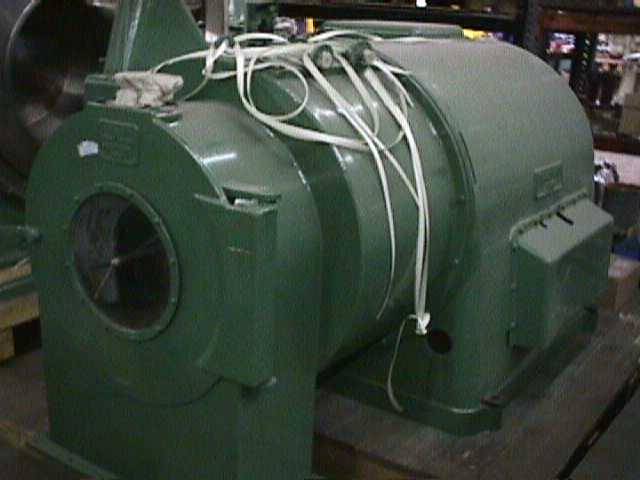

Stainless Steel Other Escher Wyss S-700 Centrifuge-Pusher - IPP# 39441

Type: Centrifuge-Pusher

Manufacturer: Escher Wyss

Model: P-5

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 787 mm (31 in)

Motor Power: 44.7 kW (60 HP)

Multi Stage Pusher Centrifuge

Number of Basket Stages: Multi.

Type: Centrifuge-Pusher

Manufacturer: Escher Wyss

Model: P500/2

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 500 mm (19.7 in)

Motor Power: 30 kW (40.2 HP)

500/410mm two stage pusher centrifuge 5.5 ton/hour solids throughput, residual moisture 3% by weight, wash medium is pure condensate @ 50 degrees C, pusher driven by 22kw (30hp), 3/50/400/690 volt 2945 rpm IP55 (equivalant to EX class 1 Div 11) motor, basket sieves with 65 slots, slots outer 0.15mm, inner 0.18mm, approximately 86 to 60 strokes per minute, rotary labyrinth seal, feed pipe, wash pipes with nozzles for each basket, bottom solids discharge

Speed-RPM Maximum: 2,200. G Force: 860. Number of Basket Stages: 2.

Type: Centrifuge-Pusher

Manufacturer: Escher Wyss

Model: P500/2

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 500 mm (19.7 in)

Motor Power: 30 kW (40.2 HP)

500/410mm diameter, two stage pusher centrifuge 5.5 ton/hour solids throughput, residual moisture 3% by weight, wash medium is pure condensate @ 50 degrees C pusher driven by 22kw (30hp), 3/50/400/690 volt 2945 rpm IP55 (equivalant to EX class 1 Div 11) motor, basket sieves with 65 slots, slots outer 0.15mm, inner 0.18mm, approximately 86 to 60 strokes per minute, rotary labyrinth seal, feed pipe, wash pipes with nozzles for each basket, bottom solids discharge

Speed-RPM Maximum: 2,200. G Force: 860. Number of Basket Stages: 2.

Type: Centrifuge-Pusher

Manufacturer: Escher Wyss

Model: Type P-3

Condition: Refurbished/Rebuilt

Material: Hastelloy - Other

Basket Diameter: 400 mm (15.7 in)

Motor Power: 22 kW (29.5 HP)

2-stage pusher centrifuge B #357-62 400mm inside diameter 1st stage; 330mm inside diameter 2nd stage Rubber lined casing 316 stainless steel front cover Basket belt driven by 30 HP (22 KW), 3/50/415 volt, 1450 RPM 1-152mm feed, 1-152mm filtrate, 100mm x 500mm solids with hinged 300mm x 250mm sight glass, solids.

Number of Basket Stages: 2.
