Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760

  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760 Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760 Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760 Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760 Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760 Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760 Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
  • Glasslined Pfaudler R Batch-Type Agitated Reactor - IPP# 39760
Overview
Reactor
Batch-Type Agitated
Pfaudler
R
Used
Glasslined
2,115 L (559 gallons)
Pressure Vessel
4 bar (58 psi)
Yes
200 °C (392 °F)
Jacket/Internal Coil
6 bar (87 psi)
200 °C (392 °F)
Agitation System
Yes
Packing

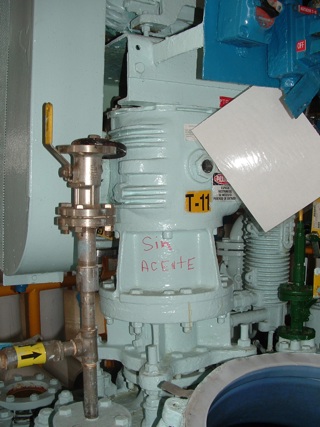

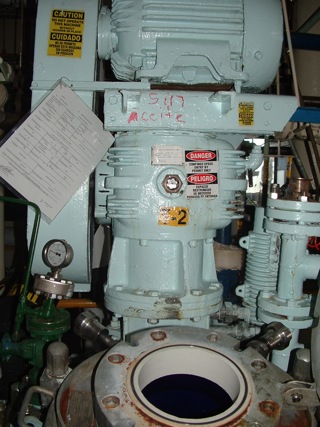

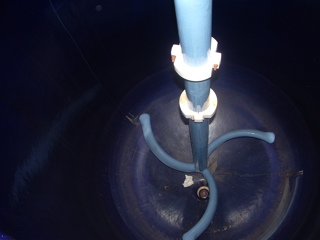

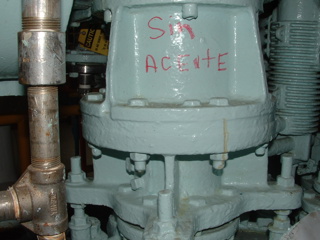

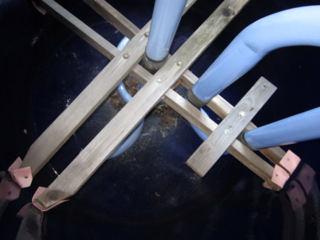

Unit has top entering drive, mfd by Sawa-Getrieb, Mdl SWV-280, SN 7736. Belt driven by approx 5 HP, 3/50 cycle flameproof motor. High duty packing gland on shaft. 3-blade retreat curve agit.
3.73 kW (5 HP)
Dimensions
1,219 mm (48 in)
838 mm (33 in)
Heads
Dish
Dish
Other Specifications
Yes
Legs
Inlets & Outlets

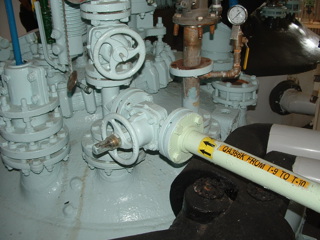

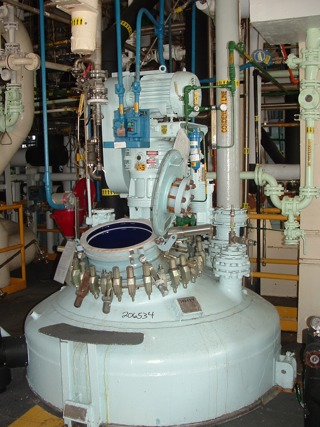

Openings: great cover has 18" x 12" manway w/cover and manway assist, 2-2" and drive nozzle; other top openings 1-6", 2-3"; 3" center btm outlet.
Additional Information

Int rated 58 psi/full vac (-1/+4 bar) @ 200 deg C,
jkt rated 88 psi (6 bar) @ 200 deg C.
jkt 310 liter.

Similar Equipment

Glasslined Pfaudler R Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: R

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Agitation: Yes

with TW drive
belt driven

  • Insulation: CS shroud enclosing insulation
  • Additional feature: Manway has EZ port cover

Support Type: Lugs.

Glasslined Pfaudler R Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: R

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.89 bar (100 psi)

  • Manway type: Assist on proring
  • Insulation: CS shroud enclosing the insulation
    TW drive
    belt driven
    mechanical seal on shaft

Internal Full Vacuum: Yes. Internal Temperature: 343 °C (650 °F). Jacket Pressure: 5.17 bar (75 psi). Jacket Temperature: 177 °C (350 °F). Agitation: Yes. Support Type: Lugs.

Glasslined Pfaudler R Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: R

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Support Type: Lugs

Nameplate: None
TW drive, belt driven
Insulation: CS shroud enclosing the insulation
Additional feature: Manway assist

Glasslined Pfaudler R Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: R

Condition: Used

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.89 bar (100 psi)

Jkt rated 90 psi @ 350 deg F, int rated 100 psi/full vac @ 650 deg F

Internal Full Vacuum: Yes. Internal Temperature: 343 °C (650 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 177 °C (350 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,524 mm (60 in). Straight Side Length: 1,321 mm (52 in). Support Type: Legs.
