wiped film lab size evaporator system. jacket 13.8 bar @ 200 degrees C. Consisting of (1) 2.5 square feet 304 stainless steel vertical jacketed wiped/thin film evaporator. with 304 stainless steel jacket. 4-blade flexible teflon wipers. Rotor driven by Eurodrive, Type RGUV-031A, 30-177 rpm, 17.06:1 ratio, varispeed drive, driven by 3 KW, 3/50/415 volt, 1430 rpm flameproof motor. Mechanical seal. (1) stainless steel circulation pump. manufactured by Howard Pumps, serial #14037, model #CL2-20. Capacity 5000 liter/hour, pressure 6 bar. Eurodrive 98-381 rpm, 5.04:1 ratio, varispeed drive, driven by 7.5 KW, 3/50/415 volt, 1440 rpm flameproof motor. (1) approx 15 square feet stainless steel tube, head and carbon steel shell heat exchanger. manufactured by Johnsons, serial #63055. Pressure 163 psi @ 300 degrees C. Shell 7" diameter x 72" long. Shell with expansion bellows.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buflovak/Blaw Knox
Model: Roto-Vak Mdl
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 626 kg/h (1,380 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)

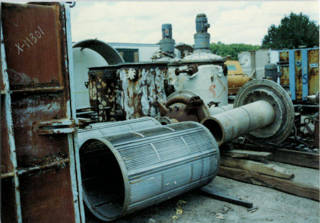

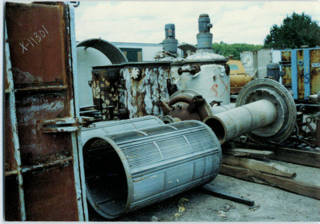

304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system 165 psi @ 400 deg F jkt NB stamped 5932. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.
Diameter: 1,016 mm (40 in). Height: 1,727 mm (68 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buflovak/Blaw Knox
Model: Roto-Vak Mdl
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 626 kg/h (1,380 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)
304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system Mfd by Buflovak 165 psi @ 400 deg F jkt. NB stamped 5931. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed. (motor for drive not available). Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm. W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.
Diameter: 1,016 mm (40 in). Height: 1,727 mm (68 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.

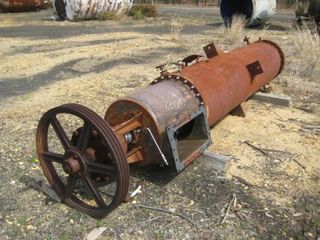

Type: Evaporator
Subtype: Wiped/Thin Film
Model: S-482
Condition: Used
Material: Stainless Steel 304
Evaporation Rate: 113.4 kg/h (250 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)
260 gal 50 sq ft Dupont 316SS short path wiped film evaporator Body jkt top head is a flanged dish head of Carpenter 20, btm head is flanged and dish unjkt, 316SS Rotor and wiper entrainment section is made of 316SS jkt pressure 100 psi @ 500 deg F #4 finish int. Int condenser ASME stamped tube rated full vac @ 500 deg F Condenser includes (129) tubes Rotor driven by U.S. synchro gear reducer 1 1/2 HP, 3/60/550 volt, w/mech seal on shaft
Diameter: 914.4 mm (36 in). Pressure: 5.2 bar (75 psi). Temperature: 260 °C (500 °F). Vacuum: Yes. Drive Type: U.S. synchro gear reducer.

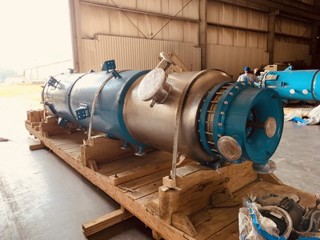

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Model: 103.4-36V-274
Condition: Unused
Material: Stainless Steel 304
Evaporation Rate: 226.8 kg/h (500 lb/h)
Total Heat Transfer Surface Area: 9.5 m² (102 ft²)
Orientation: Vertical. Diameter: 889 mm (35 in). Height: 4,648 mm (183 in). Pressure: 5.9 bar (85 psi). Temperature: 300 °C (572 °F). Internal Condenser: Yes. Internal Condenser size: 2.4 m² (25.4 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: CGL.
