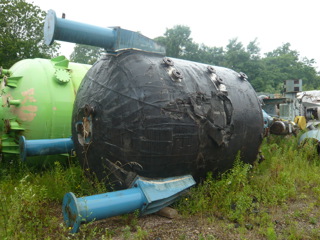

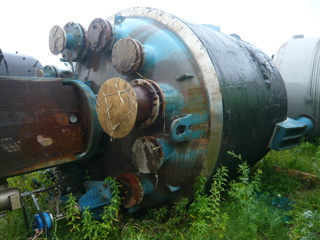

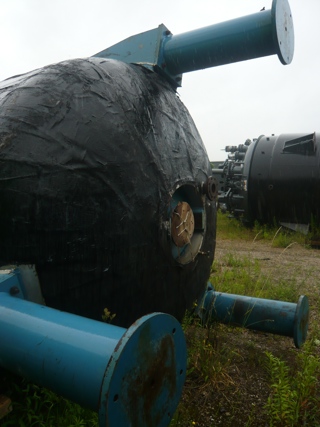

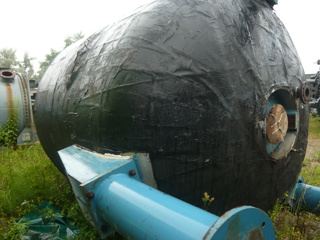

Glasslined Pfaudler-Balfour BE Batch-Type Agitated Reactor - IPP# 706365

Type: Reactor

Subtype: Batch-Type Agitated

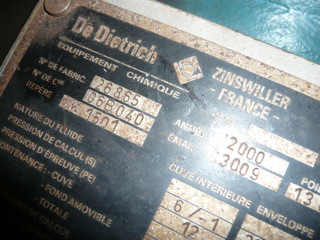

Manufacturer: DeDietrich

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 14,340 L (3,788 gallons)

Internal Pressure: 6 bar (87 psi)

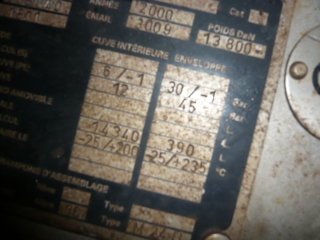

reactor with (3) chambers rated -1/6 bar @ -25 to + 200 degrees C internal rated -1/30 bar @ -25 to +235 degrees C in the jacket

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 30 bar (435.1 psi). Jacket Temperature: 235 °C (455 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 2,500 mm (98.4 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 9,353 L (2,471 gallons)

Internal Pressure: 6 bar (87 psi)

8000 liter inside -1/6 Bar @ -25/200 degrees C rated jacket -1/6 Bar @ -25/200 degrees C,total volume 757 liter Glass type: 3009, Body color: Blue, total jacket volume 757 liter, Motor data: 380V-660V/ 11kW/ 50Hz/ 1450 rpm, mfd bye ABB Motor.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 1,800 mm (70.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

design pressure internal -1/+6 bar @ -25/+200 deg C jacket -1/+6 bar @ -25/+200 deg C (5000ltr) Pfaudler job #700296

• Glass type: Blue 9119-1.1/2.0
• Dip tubes: (1) 316 s/steel dip tube, (1) glass dip tube with shrink on PTFE sleeve Motor 3/50/415 volt
• Design code: BS5500

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 3,736 mm (147.1 in). Straight Side Length: 5,150 mm (202.8 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

64 m3 reactor/crystallizer Pfaudler job #700129 (#700232) design pressure internal -1/+6 bar @ -25/+200 deg C jacket -1/+6 bar @ -25/+200 deg C (5000ltr) glass blue 9119-1.1/2.0

• Jacket: (1) 200mm, (8) 100mm, (1) 25mm Motor 3/50/380/415 volt
• Design Code: BS5500

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 3,736 mm (147.1 in). Straight Side Length: 5,150 mm (202.8 in). Support Type: Legs.
