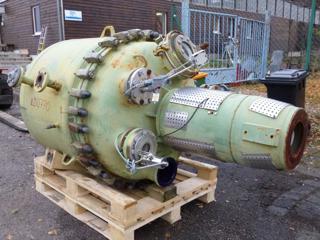

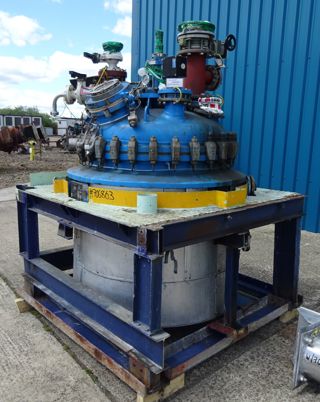

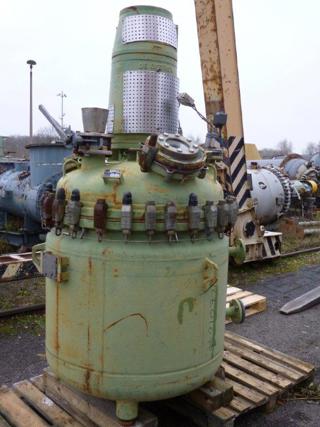

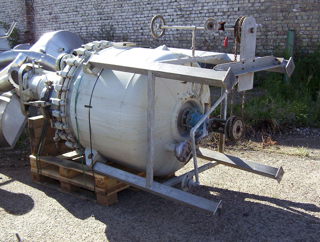

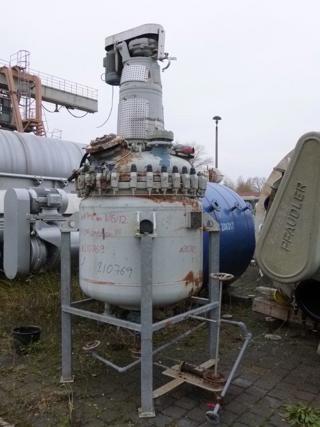

Glasslined DeDietrich AE Batch-Type Agitated Reactor - IPP# 706864

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 850 L (224.5 gallons)

Internal Pressure: 6 bar (87 psi)

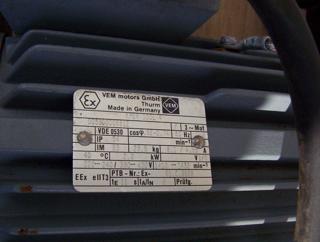

Jacket volume: 160 ltr 2-speed ex proof motor motor 3/50/60/400/690 volt

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 950 mm (37.4 in). Straight Side Length: 780 mm (30.7 in). Support Type: Lugs.

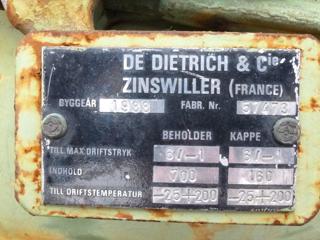

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

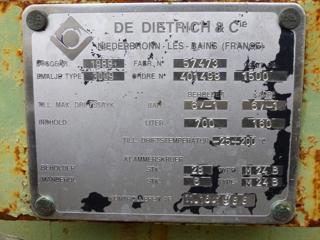

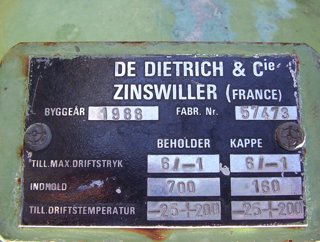

Capacity (Design): 700 L (184.9 gallons)

Internal Pressure: 6 bar (87 psi)

• Jacket volume: 160 liter
• Jacket diameter: 1100mm
• Jacket: (2)-50mm, 17mm motor 3~/50Hz/220-380V

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,300 mm (51.2 in).

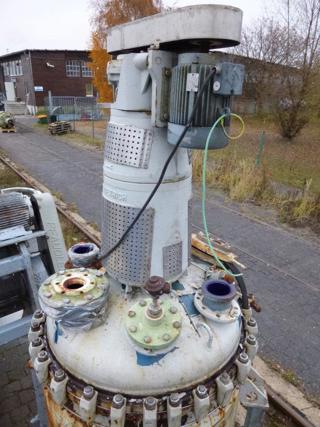

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 847 L (223.8 gallons)

Internal Pressure: 6 bar (87 psi)

630 liter

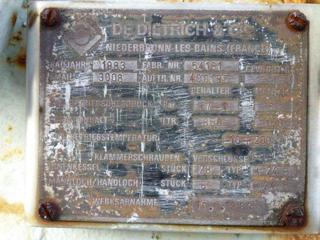

• CE number: 401381
• Glass type: 3009-internal design pressure -1/6 bar @ -25/200 degrees C (847 liter)jacket -1/6 bar @ -25/200 degrees C (152 liter)

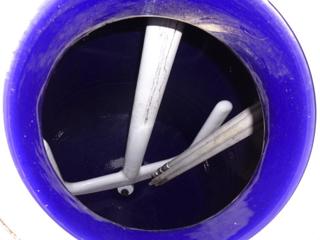

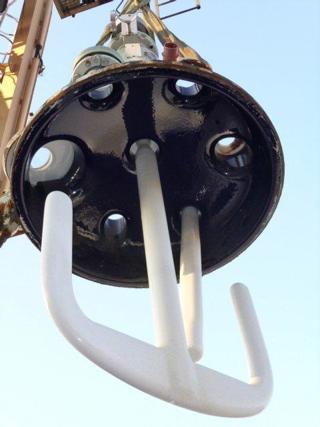

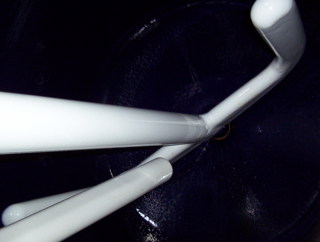

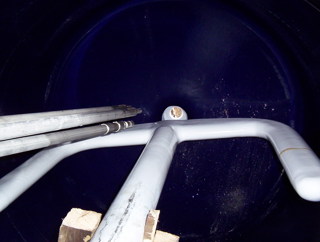

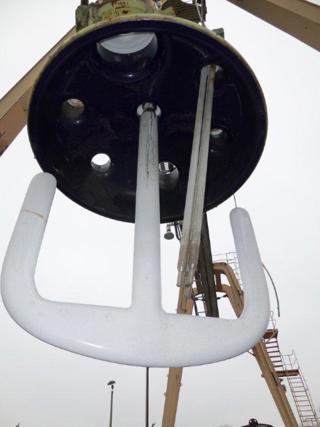

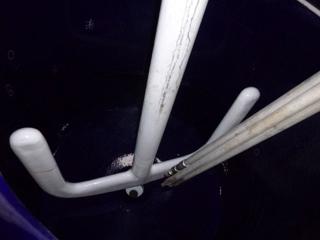

• 3-finger retreat curved agitator (white glass)

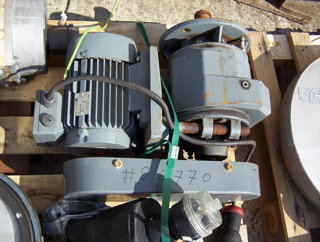

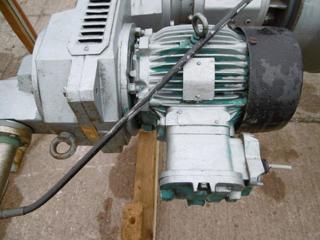

• vari-speed drive

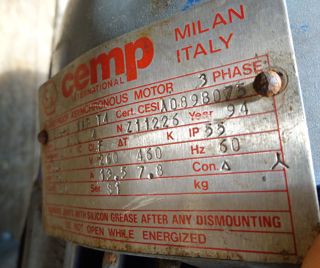

• Motor: 3 phase
• 260/460 volt-- shaft speed 29/166 rpm

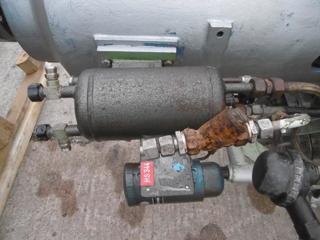

• mechanical seal with lubricator

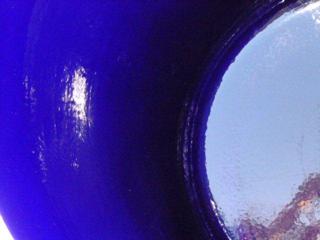

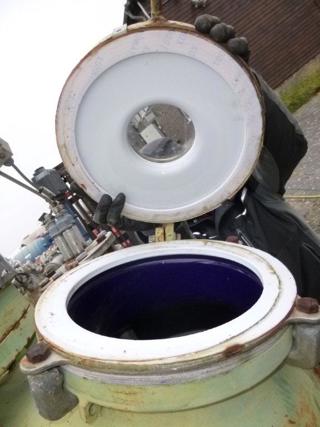

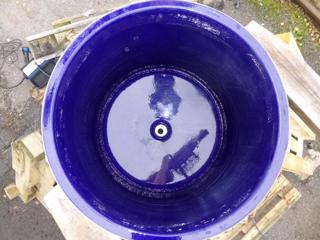

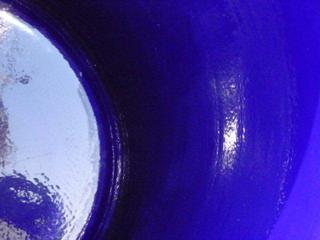

• Body and top cover: Blue glass 1-50mm (jacket)
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 799 mm (31.5 in). Support Type: Lugs.

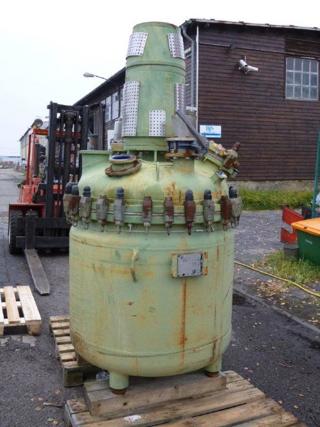

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 1,180 L (311.7 gallons)

Internal Pressure: 6 bar (87 psi)

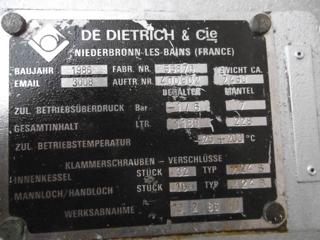

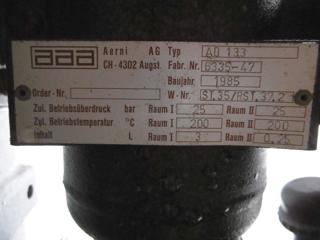

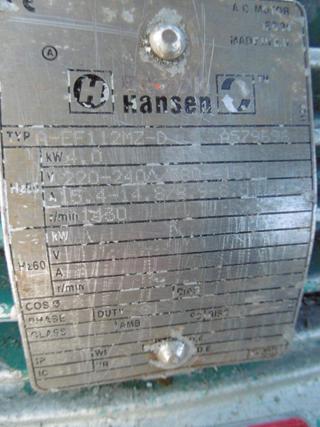

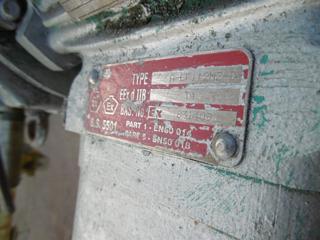

contract number 400902 Standard: DIN-28136 pressure internal -1/6 bar@ -25/+ 200 degrees C (1180 liter), jacket 7 bar @ -25/+ 200 degrees C (228 liter), Glass type 3008 Lubrication tank type: AAA Motor type: Ex proof (T4) Hansen electrical motor

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 825 mm (32.5 in). Support Type: Lugs.
