Hastelloy - C22 Rosenmund FML 250 Rosenmund and Cogeim Filter - IPP# 706865

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund AG

Condition: Used

Material: Hastelloy - C22

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110.2 in)

(Wetted parts) filter/dryer system dryer base jacket -1/16 bar @ -25/160 degrees C nominal volume of cake 2400 liter shaft is cored for steam heating gas type double mechanical seal shaft with Hydraulic raise/lower mechanism driven by a hydraulic power pack with a 2.2 kW, 3/50/400 volt 1450 rpm IP55 EExde IIB T4 motor side discharge with hydraulic valve fixed bed design with internal sintered mesh filter bed sampling point/outlet design code: AD 2000 Regelwerk PED 97.23/CE (1) 2 square meter top mounted Hastelloy C22 jacketed reverse jet dust filter, design design pressure internal -1/3.2 bar @ -25/160 degrees C 9230 liter), jacket -1/16 bar @ -25/160 degrees C (24 liter), 316L stainless steel jacket, (1) 1000 Nm3/hr COMBIVAC/APOVAC WKP1000/S/PMZE 2510 D6X6/APO 3.2/80/GK1.8 vacuum pump skid with booster pump, manufactured by NCB Gas Processing, asset #10006707 (1) 220 Nm3/hr liquid ring vacuum pump type WKP-4000-AD, 19kw motor, design pressure 100 mbar, (1) 3.2 square meter liquid ring cooler, (1) 1.8 square meter exhaust gas cooler, (1) 80 liter liquid ring tank, all mounted on a carbon steel skid, (1) 1000 Nm3/hr (working) booster pump, type WKP 4000 AD, serial #21170167, manufactured by Pfeiffer Vacuum, 6075m3/hr (max), 4500 rpm (max), pressure 100mbar, driven by 18.5/21kW, 3/50-60/690-400/660-380/415-440 VOLT, 2934/2924/3524 RPM ATEX EEx de IIB T4 IP55 motor,

Pressure: 3.2 bar (46.4 psi). Temperature: 160 °C (320 °F). Jacket: Yes. Jacket Pressure: 16 bar (232.1 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 160 °C (320 °F).

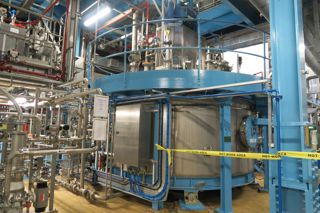

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund AG

Model: RPD-12-810-94

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 12 m² (129.2 ft²)

Diameter: 4,000 mm (157.5 in)

• agitated pressure Nutsche filter,
• design pressure internal -1/3.2 bar @ -10/200 degrees C (22400 liter),
• jacket -1/10 bar @ -10/200 degrees C (170 liter),
• filter base jacket 6 bar @ -10/200 degrees C (407 liter)
• 6000 liter nominal cake volume
• 500mm cake height
• fixed bed design with 316L stainless steel filter mech
• center bottom discharge via plunger that runs down the center of the shaft,
• shaft driven by 37/42kw 3/50-60/690-400/660-380/415-440 volt 1480/1478/1482/1778 rpm EEx de IIB T4 ATEX motor via a 253.356:1 ratio reduction gearbox,
• Packed gland
• shaft speed 2.7-8.2 rpm,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with 2.2kw, 3/50/380 volt, 1500 rpm EEx de IICT4 motor,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm, EEx de IIB T4 ATEX motor, mounted on a baseplate

Pressure: 3.2 bar (46.4 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Agitation Seal Type: Packing. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316L. Jacket Temperature: 200 °C (392 °F). Vessel Liquid Capacity: 22,400 L (5,900 gallons).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund AG

Model: APOVAC

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 0.3 m² (3.2 ft²)

Diameter: 457.2 mm (18 in)

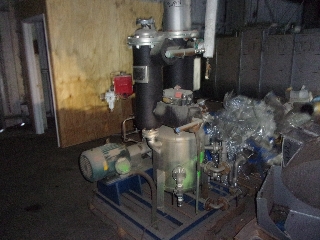

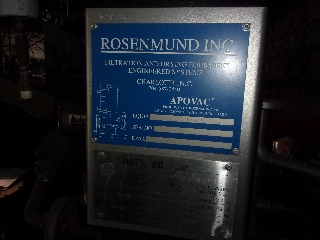

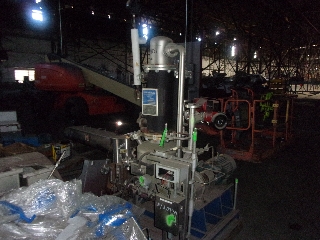

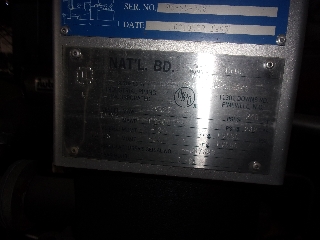

• APOVAC system skid mounted.

• 80 CFM 2.2 GPM with a Sulzer Burkhardt Vacuum Pump, typically contains two heat exchangers and a receiver.

• All on a skid mounted system.

• Can be used with the following IPP stock numbers: 247646, 247146, 247050, 209158, 230453, 705428, 706865, 248105, & 247051

• Receiver is 316 L SS, 20 Gallon, 18" diameter x 18" straight side, rated for FV/60 psi at 248 degrees F.

• Heat exchanger serial # W8788C, 10 Sq. Ft., 316L SS tubes, tube sheets, heads and shell. Shell rated for FV90 psi at 248 Degrees F., tubes rated for FV 60 psi at 248 degrees F.

  31 straight tubes, 0.75" diameter x 18 GA x 22" long.

• Heat exchanger, serial # W8788B, 202 Sq.Ft. 316L SS tubes, tube sheets, heads and shell. Shell rated for FV90 psi at 248 Degrees F., tubes rated for FV 60 psi at 248 degrees F.

  31 Straight tubes, 1" diameter x0.065" x 25" long.

Pressure: 4.1 bar (60 psi). Temperature: 120 °C (248 °F). Vacuum: Yes. Internal Finish: Mill 2B.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RSD 0.03-975-98

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.3 m² (3.2 ft²)

Pressure: 6 bar (87 psi)

Agitated Pressure FilterThe 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree CThe 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C.With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controlsFilter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.

• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Temperature: 200 °C (392 °F). Jacket: Yes.
