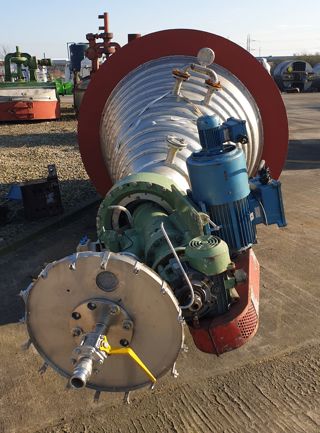

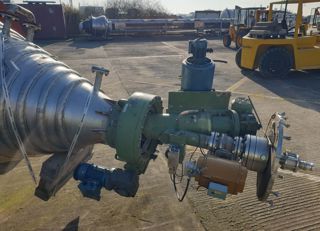

Stainless Steel 316 Vrieco Nauta 20 VB-S Dryer-Nauta - IPP# 706888

Type: Dryer- Nauta / Conical

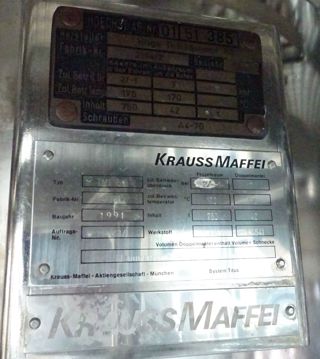

Manufacturer: Krauss Maffei

Model: MT 2/300

Condition: Used

Material: Stainless Steel 316

Capacity Solids: 3.3 m3 (116 ft3)

Capacity Liqid: 3,300 L (871 gallons)

• Jacket conical screw mixer/dryer with top mounted filter,

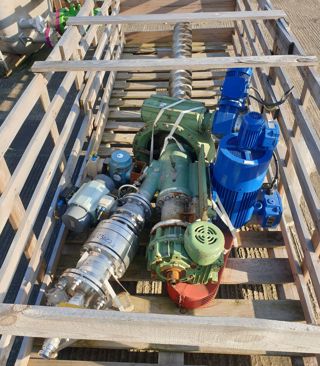

• screw 7 bar @ 150 degrees C . (18.5 liter), single internal 316L (1.4404) stainless steel screw which is cored for steam heating, screw bottom driven by 11kw 3/50/380 volt 1500 rpm Eex motor, carriage motor 1.1 kw, 3/50/380 volt 1500 rpm Ex motor.
• Bottom discharge valve driven by 0.75kw, 3/50/380 volt 1400 rpm Ex motor, dished top with a 5.5 square meter 316L (1.4404) stainless steel jacketed reverse jet filter.

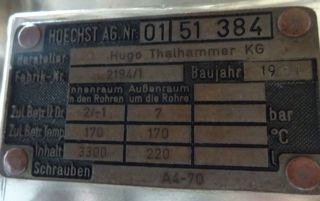

• Manufactured by Kilsch Apparatebau Gmbh, fabrik #2184/2, pressure -1/2 bar @ 170 degrees C (750 liter),bolt dished top, (4) jets, TUV certified

Vessel Pressure: 2 bar (29 psi). Vessel Temperature: 170 °C (338 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 170 °C (338 °F). Screw Heated: Yes. Screw Pressure: 7 bar (101.5 psi). Screw Temperature: 150 °C (302 °F).

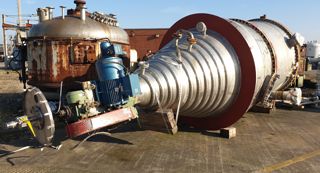

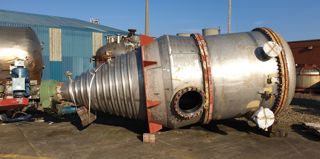

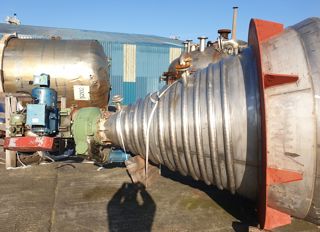

Type: Dryer- Nauta / Conical

Manufacturer: Bauer Mainz

Model: T710C

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity Solids: 10 m3 (353 ft3)

Capacity Liqid: 10,000 L (2,650 gallons)

• Single stainless steel screw, screw bottom driven.
• Dished top with a 26 square meter 316Ti (1.4571) stainless steel reverse jet filter
• Pressure -1/3 bar @ 165 degrees C.
• Bolt dished top, (12) jets.
• TUV certified, CE marked.

Vessel Pressure: 3.2 bar (46.4 psi). Vessel Temperature: 250 °C (482 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 165 °C (329 °F).

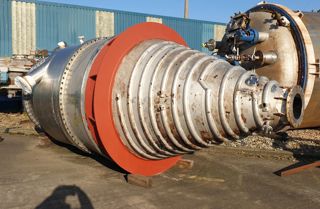

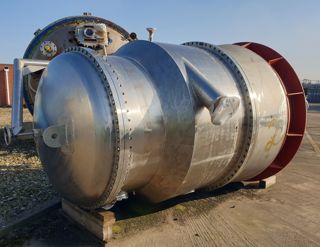

Type: Dryer- Nauta / Conical

Manufacturer: Engelsmann AG

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity Solids: 10 m3 (353 ft3)

Capacity Liqid: 10,000 L (2,650 gallons)

• Pressure -1/3.2 bar @ 250 degrees C.
• Single stainless steel screw, screw is bottom driven.
• Dished top with a 316Ti (1.4571) stainless steel reverse jet filter, pressure -1/3 bar @ 165 degrees C (1220 liter).
• Bolt dished top, (6) jets,
• TUV certified, CE marked

Vessel Pressure: 3.2 bar (46.4 psi). Vessel Temperature: 165 °C (329 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 165 °C (329 °F).

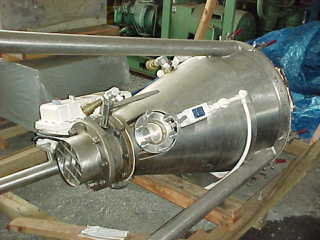

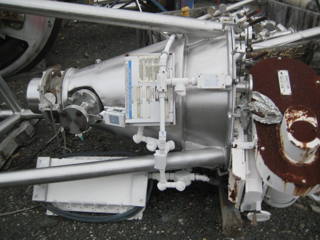

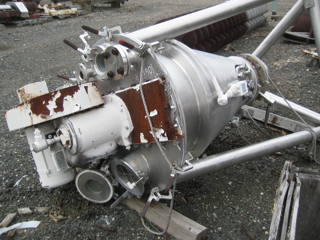

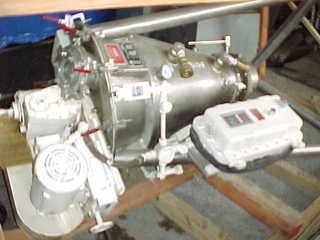

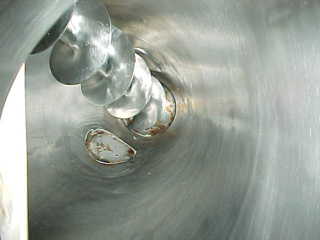

Type: Dryer- Nauta / Conical

Manufacturer: JH Day

Condition: Used

Material: Stainless Steel 316

Capacity Solids: 0.13 m3 (4.7 ft3)

Capacity Liqid: 132.5 L (35 gallons)

• 1.7 cubic foot working capacity
• Mini-mixer dryer- Polished inside and out
• U-stamp 30" diameter Single screw design. Arm rotates 2-4 rpm, a 6" diameter screw rotates 60 to 120 rpm230/460 volts.
• Bottom with safety grid and manual butterfly valve. C
• omplete with starter box Unit enclosed in SS shroud

Vessel Pressure: -0.07 bar (-1 psi). Vessel Temperature: 178.3 °C (353 °F). Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 178.3 °C (353 °F).
