Stainless Steel 304 Spiral Heat Exchanger - IPP# 86884

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 96.2 m² (1,035 ft²)

Shell Pressure: 7.6 bar (110 psi)

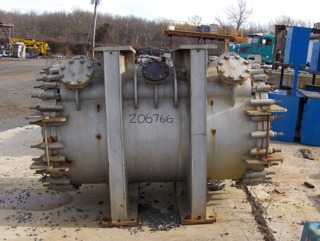

Division of Alfa Laval MFGR. #17712 Rated for 110 psi @ -20 degrees to 190 dgrees F Type 1H, Head Material: SA 516 70 ,Thickness: 1.85", Shell Material SA 516 70 Thickness: .3125". 70" long x 48" diameter X 60" high. 12" wide x 15" long. Weight:21,000 lbs

Shell Temperature: 87.8 °C (190 °F). Shell Material: Carbon Steel. Shell Diameter: 1,219 mm (48 in). Head Material: Carbon Steel. Length: 1,778 mm (70 in). Nozzle Schedule: (2x) 4" flanges on each head, (4x) 6" flanges, two on each side, and (2x) 3" flanges, one on each side.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: 1-V

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 99 m² (1,066 ft²)

Shell Material: Carbon Steel

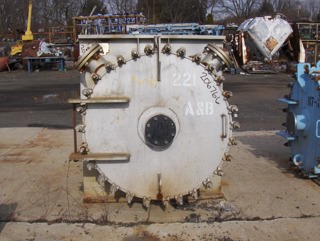

type SHE spacing channel A = 8, B = 9, volume: channel A = 450 ltr, B= 500 ltr

Shell Diameter: 1,380 mm (54.3 in). Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-80mm, side: 2-80mm, bottom: 1-80mm,. Cold-side Pressure: 5.2 bar (75 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5.2 bar (75 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Condition: Used

Material: Stainless Steel 316

Shell Material: Stainless Steel 316

Shell Diameter: 406.4 mm (16 in)

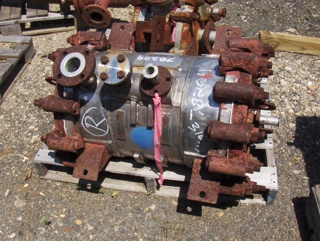

horizonal spiral heat exchanger. 316SS tubes. 316SS shell.

Length: 609.6 mm (24 in). Nozzle Schedule: Hot side inlet 2", hot side outlet 1", cold side inlet 1", non-condensibles outlet 1", vapor outlet 2".

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Model: 1H

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Shell Material: Stainless Steel 316

inner pass is .25" x 6", 14'5" long; cold side outer pass is .25" x 6", 15'4" long.

Head Material: Stainless Steel 316. Nozzle Schedule: 1" inlets and outlets.. Spiral Material: Stainless Steel 316.
