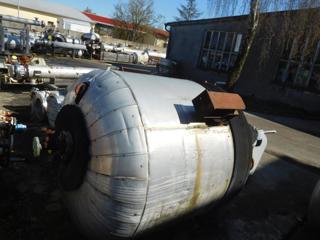

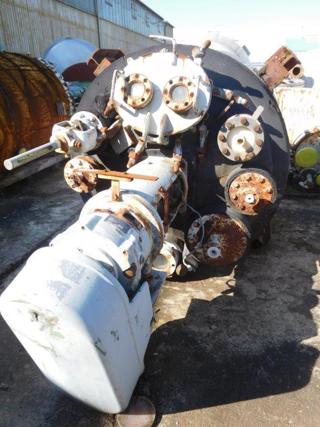

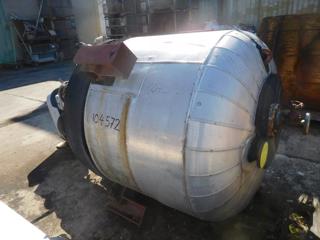

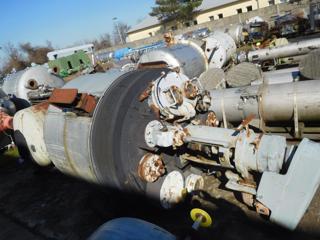

Glasslined Von Roll Batch-Type Agitated Reactor - IPP# 89785

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Von Roll

Model: NK2

Condition: Used

Material: Glasslined

Capacity (Design): 1,500 L (396.3 gallons)

Internal Pressure: 6 bar (87 psi)

jacketed reactor. Glass SD40 Type FZS63F, rated 4.9 PS motor: 5.0 KW, 3/50/500 volt Designed to Swiss code.

Internal Full Vacuum: Yes. Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,200 mm (47.2 in). Support Type: Lugs.

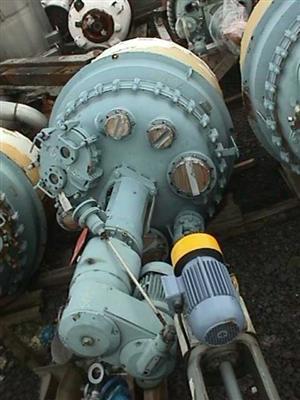

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Von Roll

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 63 L (16.6 gallons)

Internal Pressure: 6 bar (87 psi)

reactor assembly -Glass #SD-40

• Reglassed by UGE in 2010

Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 240 °C (464 °F). Agitation: Yes. Diameter: 600 mm (23.6 in). Straight Side Length: 280 mm (11 in). Support Type: Legs.

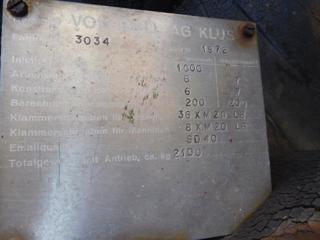

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Von Roll

Model: NK2

Condition: Used

Material: Glasslined

Capacity (Design): 1,000 L (264.2 gallons)

Internal Pressure: 2 bar (29 psi)

Reeves variable speed agitator drive, 1440-35 rpm output speed with a Ruba gear reducer, Type 332-E-15, SN 74112, 140-35 rpm. Driven by 6.8 KW, 3/50/500 volt, 1435 rpm XP motor.

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,170 mm (46.1 in). Straight Side Length: 910 mm (35.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 37.9 L (10 gallons)

Internal Pressure: 1.72 bar (25 psi)

Reglassed at UGE facility 105 psi w/full vac int. Glass #59.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 176.7 °C (350 °F). Diameter: 355.6 mm (14 in). Straight Side Length: 457.2 mm (18 in). Support Type: Legs.
