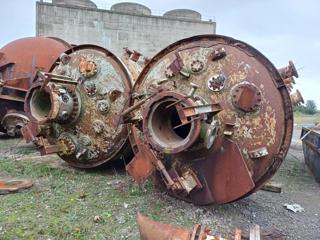

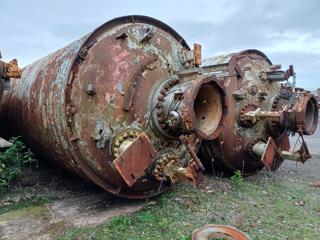

Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201

  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201 Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201 Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201 Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201 Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201 Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201 Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
  • Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor - IPP# 90201
Overview
Reactor
Batch-Type Agitated
Robert Jenkins
Used
Carbon Steel with 316 SS lining
Yes
40,000 L (10,567 gallons)
Pressure Vessel
22.8 bar (330 psi)
Yes
85 °C (185 °F)
Jacket/Internal Coil
4.14 bar (60 psi)
Half Pipe/Limpet
Carbon Steel
Dimensions
Vertical
2,591 mm (102 in)
6,629 mm (261 in)
Agitation System
Yes
Pitch Blade
Mechanical
Btm entering agit,
200 kW (268 HP)
Heads
Dish
Carbon Steel with 316 SS lining
Dish
Carbon Steel with 316 SS lining
Other Specifications
Yes
Skirt
Inlets & Outlets
Openings: top 1-22" hydraulic closed manway, 2-10", 1-9", 3-4", 1-3"; side 14-6"; btm 1-10", 1-6", 1-2".
Additional Information
  • coil jacket with (42) turns on straight side.
  • Lightnin mixer
  • direct coupled to 200 KW, 3/50/415 volt
  • 4-blade SS impellor.

Similar Equipment

Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Robert Jenkins

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 39,747 L (10,500 gallons)

Internal Pressure: 22.8 bar (330 psi)

jkt agit reactor/autoclave.
(42) turns on str side.
Wall thickness is 15/16" with 10% cladding;
Heads are 1 1/8" thick with 15% cladding.
bottom driven by Lightnin mixer, 14:1 ratio, direct coupled to 200 KW, 3/50/415 volt, 991 rpm non-flameproof motor.

Internal Full Vacuum: Yes. Internal Temperature: 85 °C (185 °F). Jacket Pressure: 4.14 bar (60 psi). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,591 mm (102 in). Straight Side Length: 6,629 mm (261 in).
