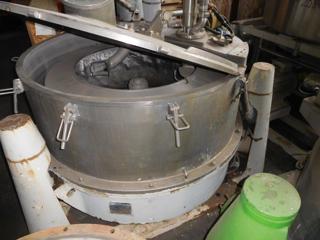

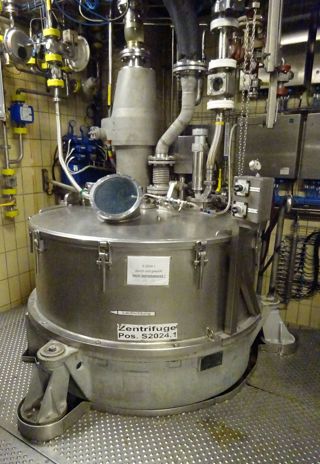

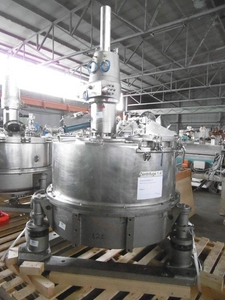

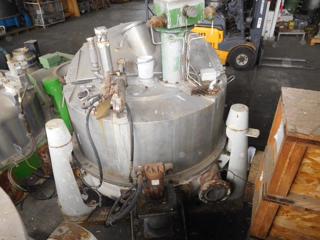

Stainless Steel Other Manual Discharge-Top Centrifuge-Basket 1,250 mm (49.2 in) For Sale - IPP# 95985

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Alfa Laval

Model: PAZ 1250 C

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 500 mm (19.7 in)

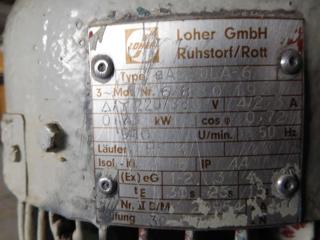

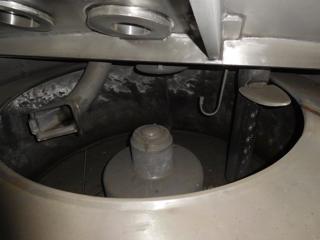

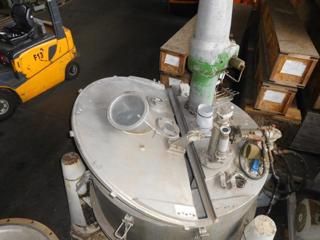

(Ex) e G4 explosion protection, TUV Pressure: 0.2 bar @ 120 degrees C 3/50/380/660 volt motor. gas tightness 0.2 bar +/- 15%, half of the top cover hinges/opens, with open/close assist, cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards,Thermosyphon/plow raise/lowermechanism driven by a hydraulic power pack, feed pipe, wash pipe with spray nozzles.

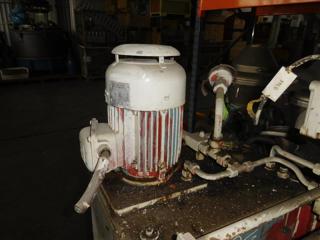

Filtration Area: 1.96 m² (21.1 ft²). Motor Power: 22 kW (29.5 HP). Speed-RPM Maximum: 950. Load Weight: 400 kg (881.8 lb). Gas Tight: Yes.

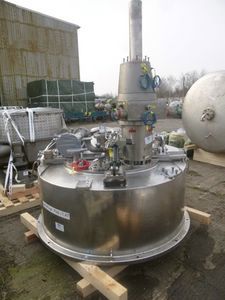

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Alfa Laval

Model: PAZ-1250C

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 600 mm (23.6 in)

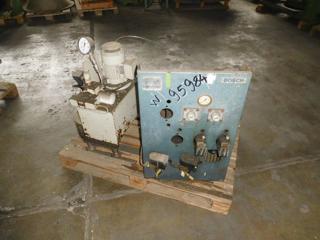

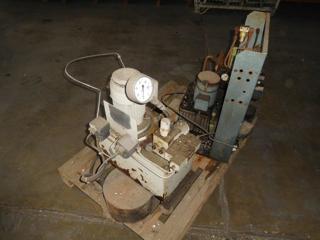

top load/unload basket driven by an hydraulic motor via a hydraulic powerpack Thermosyphon which is hydraulic driven by the same powerpack 2-internal spray nozzles, 1-150mm filtrate outlet half of the top cover is hinged and has a open/close assist mechanism, hydraulic panel,

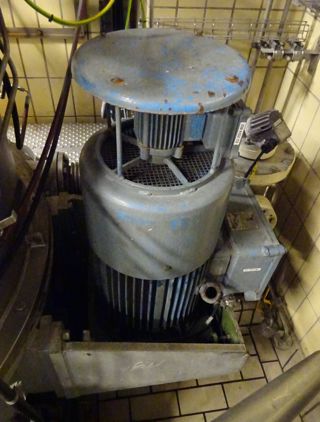

Motor Power: 27 kW (36.2 HP). Speed-RPM Maximum: 950. Load Weight: 400 kg (881.8 lb).

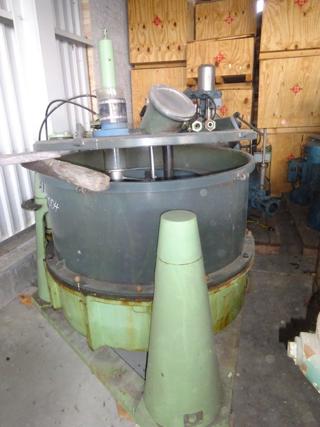

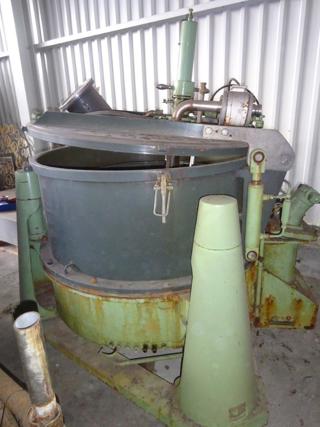

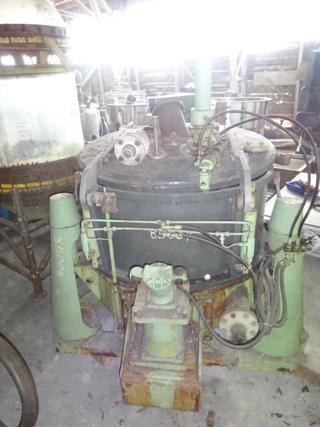

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Alfa Laval

Model: PAZ1000CX500

Condition: Used

Material: Lined

Basket Diameter: 1,016 mm (40 in)

Basket Depth: 508 mm (20 in)

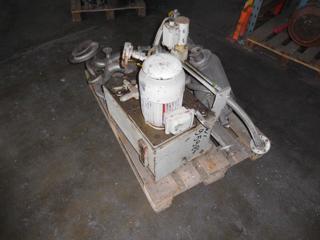

halar lined perforated basket Basket 10mm thick w/14mm dia perforations. W/Rexroth hydraulic powerpak, SN 84700 w/reversing motor to change speed. 2-motion hydraulic plow. W/2.5 KW power unit. Full opening cover w/(2) hydraulic cylinders. 8" sight glass w/wash nozzle. 2 1/2" plastic feed pipe. wash pipe w/(2) nozzles. 4" light glass. 3/4" purge, 2" fume vent.

Motor Power: 24 kW (32.2 HP). Speed-RPM Maximum: 1,250. Load Weight: 250 kg (551.2 lb). Controls: Yes.

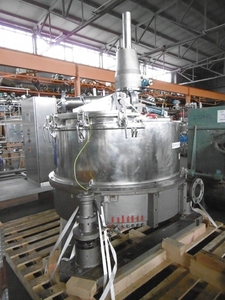

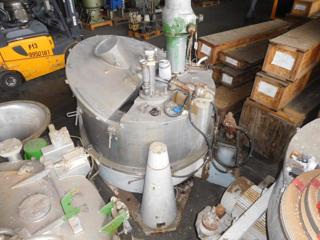

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Alfa Laval

Model: PCL1250

Condition: Used

Material: Stainless Steel Austenitic

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 500 mm (19.7 in)

perforated basket centrifuge 316SS TI (1.4571) Half top hydraulically operated liftable cover Basket thickness 10mm Hydraulic operated knife. W/hydraulic powerpak, mfd by Hydramatic. Hydraulic driver Type A2P W/250mm sight glass

Speed-RPM Maximum: 950. Load Weight: 400 kg (881.8 lb). Gas Tight: Yes.
