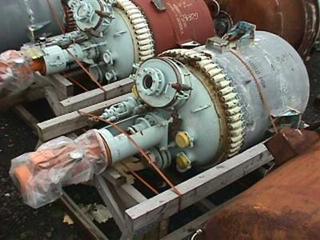

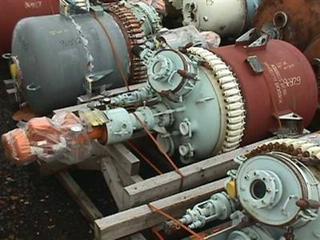

Glasslined Pfaudler (Germany) DK Batch-Type Agitated Reactor - IPP# 96935

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler (Germany)

Model: DK

Condition: Used

Material: Glasslined

Capacity (Design): 654 L (173 gallons)

Internal Pressure: 8 bar (116 psi)

Glass #61.
driven by 2 PS, 3/50/500 volt,
Reeves variable speed drive, 25-146 rpm
w/Ruba gear reducer, Type 222-G-15, SN 62-390, 120-20 rpm.
jacket 120 liter.

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 500 mm (19.7 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler (Germany)

Model: DK

Condition: Used

Material: Glasslined

Capacity (Design): 757 L (200 gallons)

Internal Pressure: 6 bar (87 psi)

W/Lonzo varispeed drive
output 22-132 rpm
w/2.4 KW, 3/50/380 volt,
Designed to German TUV standards.

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,100 mm (43.3 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler (Germany)

Model: DK

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 800 L (211 gallons)

Internal Pressure: 10 bar (145 psi)

Reglassed with glass #8000 nucerite
Designed to German TUV standard.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,150 mm (45.3 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler (Germany)

Model: DK

Condition: Used

Material: Glasslined

Capacity (Design): 800 L (211 gallons)

Internal Pressure: 10 bar (145 psi)

• Type: DK800
• Glass number: 3115
• Standards: Designed to German TUV standards

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,150 mm (45.3 in).
