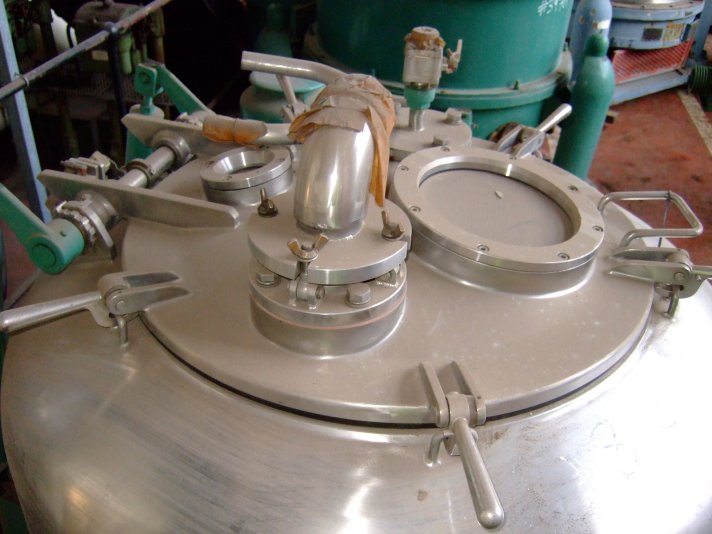

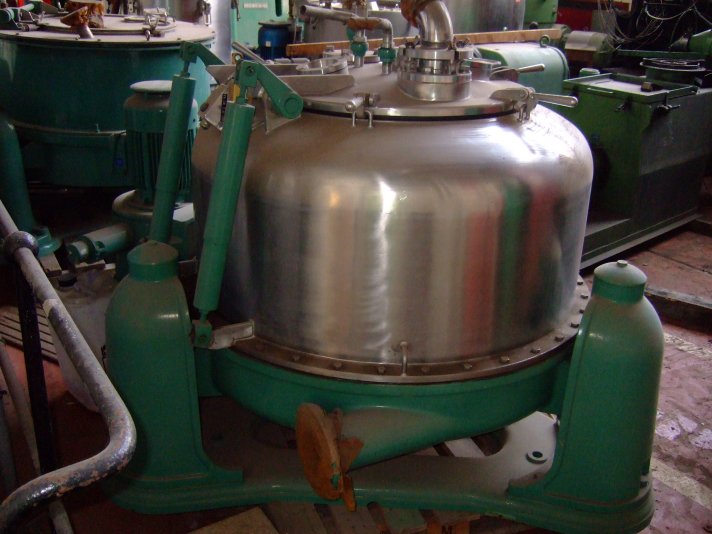

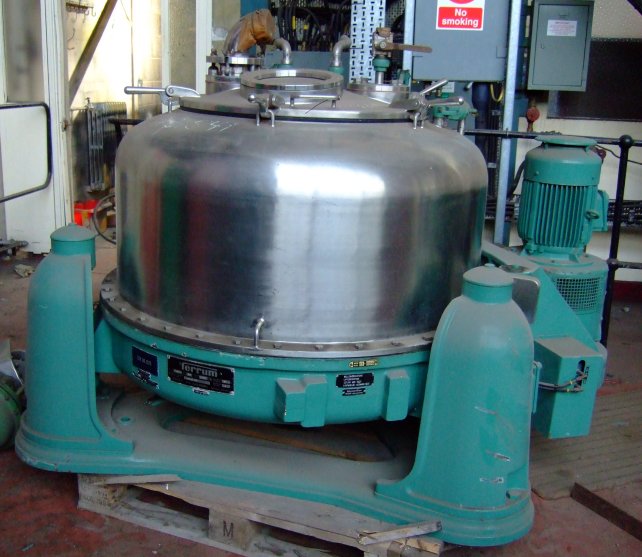

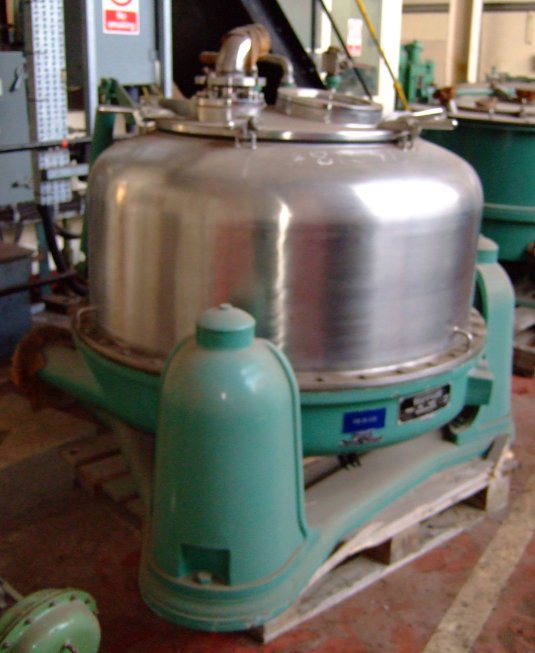

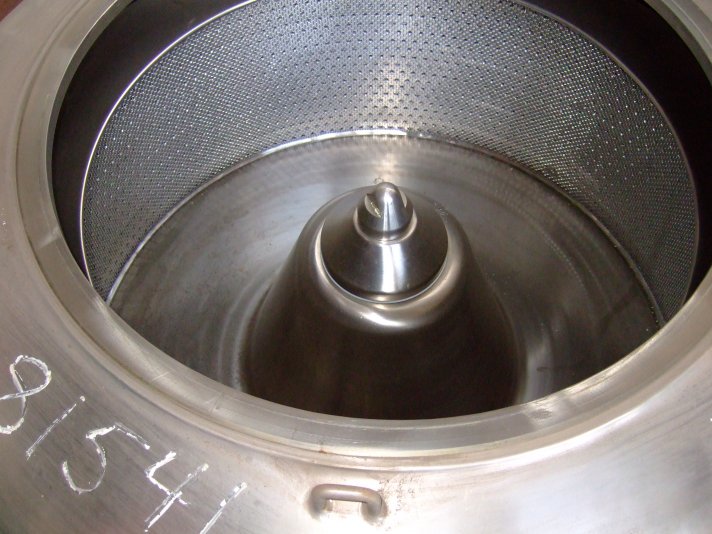

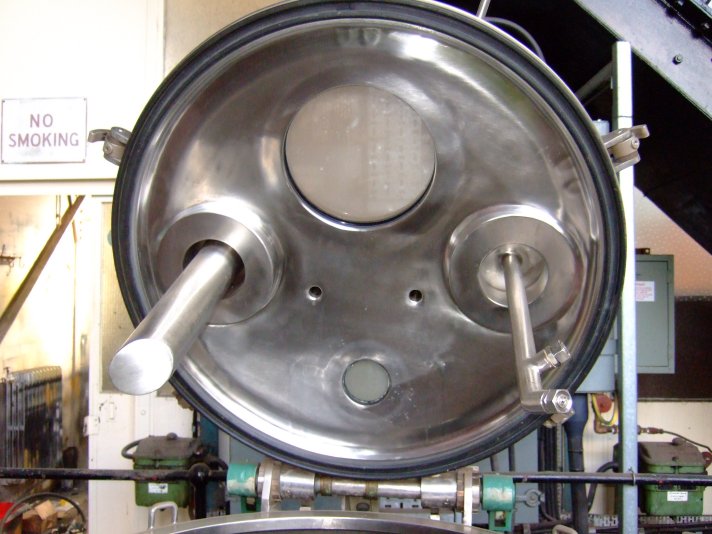

Stainless Steel 316 Ferrum POR1000BN Centrifuge-Basket - IPP# 81541

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Model: J8P-S

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Basket Diameter: 800 mm (31.5 in)

Basket Depth: 360 mm (14.2 in)

sanitary perforated basket centrifuge 140 kg wet material with handbrake openings: 2-75mm feed pipes, 1-75mm filtrate outlet, 2-75mm sightglasses

Filtration Area: 0.9 m² (9.7 ft²). Motor Power: 2.2 kW (3 HP). Speed-RPM Maximum: 960. Load Weight: 140 kg (308.6 lb).

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Model: POR-1250

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 600 mm (23.6 in)

highly polished 316L (1.4435) stainless steel basket centrifuge basket thickness 12mm, pressure 1.8 bar @ 150 degrees C half of the top cover hinges/opens, open/close assist driven by a power pack, cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards.

Filtration Area: 2.4 m² (25.3 ft²). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 480 kg (1,050 lb).

Type: Centrifuge-Basket

Subtype: Auto Discharge-Bottom

Manufacturer: Ferrum

Model: DSZ

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49 in)

Basket Depth: 610 mm (24 in)

brushed finish internal, and sanitary lid is 316 SS basket is 316 SS and cone is 316 SS. pull action filter for gentle handling of material. It allows the centrifuge to function with out a scraper knife, making it ideal for sensitive products. The pneumatic pull mechanism allows for no heel to be left over after discharge. This design works excellent in the fine chemicals, pharmaceutical, and the food industries. Manufactured to GMP standards with FDA approved parts. The basket aperture is 34.5", The Feed disk drive is driven by a Reliance Duty Master serial # 01MAP61661G001CE,3 HP, 1770 RPM, 230/460v,60 Hz Inverter ready, The cover is hinged, with hydraulic power pack for lid lifting (opening). The maximum height (for lid to open) is 121.5", the maximum width is 94.5" X maximum depth of 86.6" nitrogen purged. No CIP spray balls.

Filtration Area: 2.5 m² (26.5 ft²). Motor Power: 22 kW (29.5 HP). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 500 kg (1,100 lb). Gas Tight: Yes.

Type: Centrifuge-Basket

Subtype: Auto Discharge-Bottom

Manufacturer: Ferrum

Model: DSZ-UR/T/HA

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49 in)

Basket Depth: 610 mm (24 in)

Housing coated with Eldon, lid coated with Edlon, and basket coated with Edlon cone is C-22,
Ref. No. 10889. The model DSZ utilizes a pull action filter for gentle handling of material. It allows the centrifuge to function with out a scraper knife, making it ideal for sensitive products The pneumatic pull mechanism allows for no heel to be left over after discharge. This design works excellent in the fine chemicals, pharmaceutical, and the food industries. Manufactured to GMP standards with FDA approved parts. Reliance Duty Master serial #02MAZ24644 G002 ZZ, 5 HP, 1750 rpm, 460v., 3 ph., 60 Hz. Frame L184 TD, TEFC Enclosure 140 Lbs.. Rated for 950 rpm, maximum charge is 500 kg. The basket aperture is 34.5", The maximum height (for lid to open) is 121.5", the maximum width is 94.5 X maximum depth of 86.6". The housing is Gas tight nitrogen purged.

Filtration Area: 2.5 m² (26.5 ft²). Motor Power: 3.7 kW (5 HP). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 500 kg (1,100 lb). Gas Tight: Yes.
