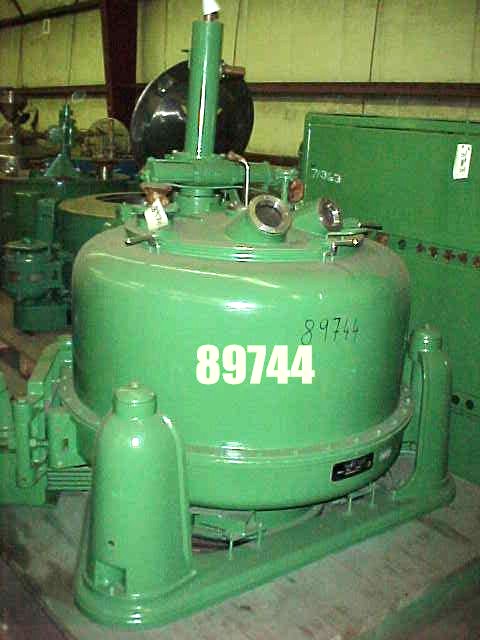

Rubberlined Ferrum PUT1200 Centrifuge-Basket - IPP# 89744

Type: Centrifuge-Basket

Manufacturer: Ferrum

Model: PO/U 1250

Condition: Used

Material: Stainless Steel 316L

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 600 mm (23.6 in)

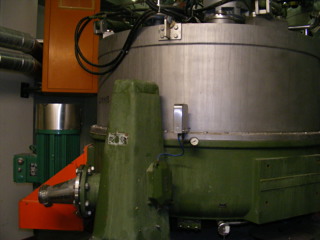

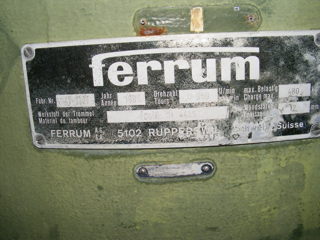

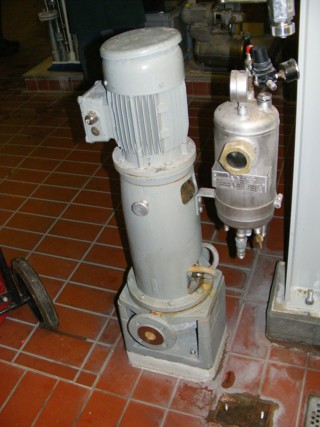

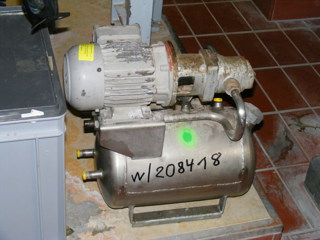

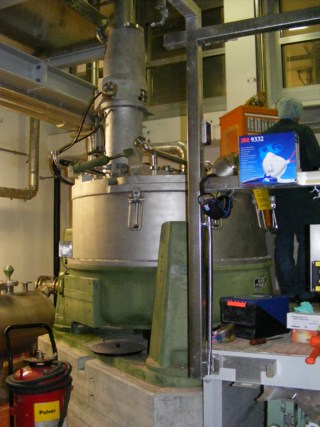

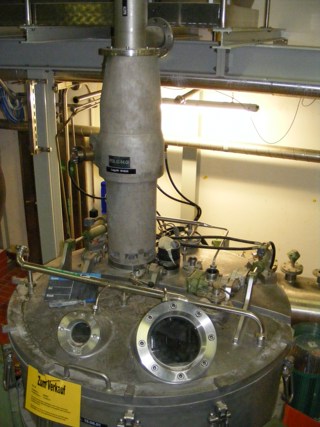

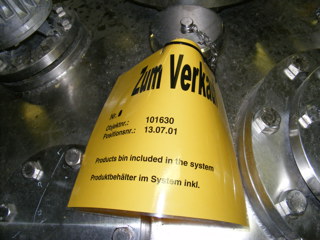

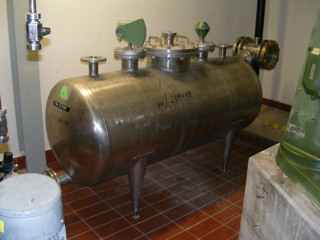

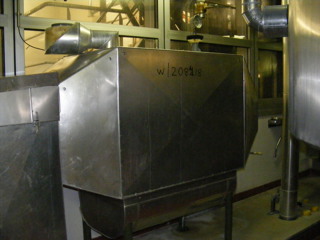

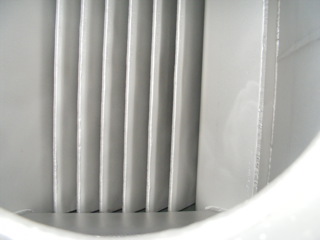

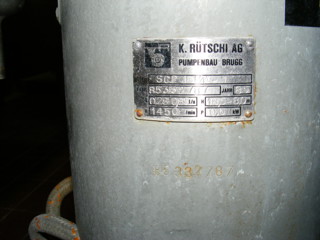

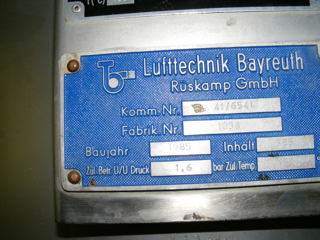

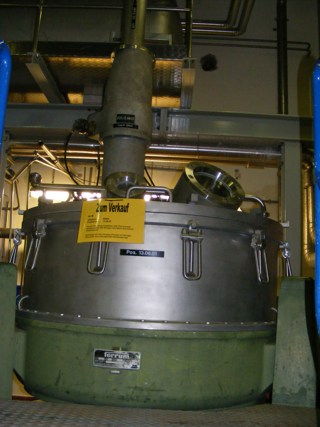

Ferrum basket centrifuge with Titus cyclone cake discharge system Complete centrifuge and discharge system is gas-tight design. deep perforated basket pressure rated 1.96 Sqm, 0 to 950 upm 480 kg, 316L s/steel housing and cover pressure rated 1.6 bar @ 120 degrees C Top cover has 100mm sightglass with light 225mm sightglass 75mm wash pipe 75mm feed pipe 45mm, 80mm, and a 1/2 hinged cover 150mm filtrate outlet Unit has top entering feed and wash pipes and has a hydraulic knife for cake removal from basket walls Cake is pneumatically removed from the centrifuge though a Krauss Maffei, Titan cyclone dryer, which pulls the cake out through the top of the centrifuge Complete system includes a 630 liter SS horizontal mother liquor tank manufactured by Edak, Serial number 965/1, rated 1.6 bar, Krauss Maffei solvent condensor manufactured by J Engelsman, Serial Number 15641/2, miscellanous centrifugal pumps,

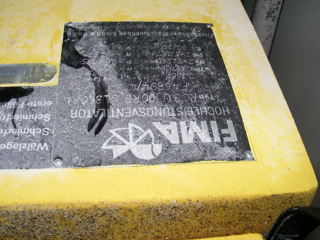

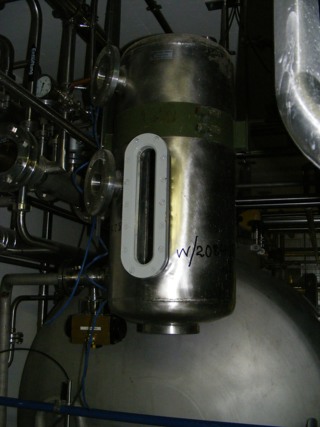

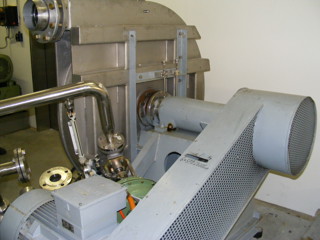

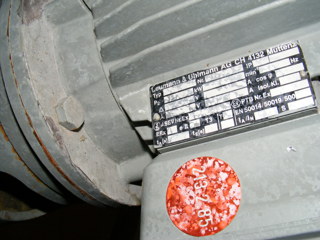

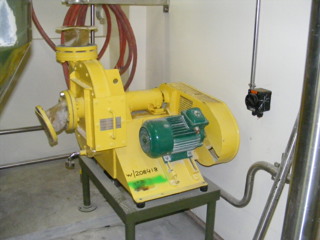

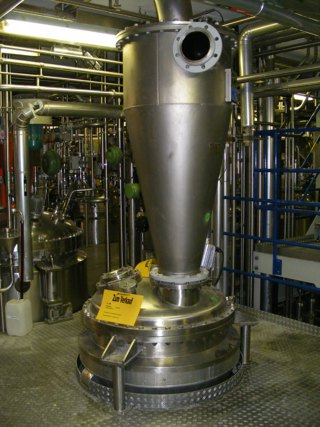

K-M Titus cylone discharge system with 2,880 CuM/Hr, SS suction fan driven by a 30 KW, 3 phase 50 cycle EExeII motor, 385 liter 1.4571 SS cake cyclone, 692 mm diameter x 450 mm ss with 1100 mm cone, discharging the cake into a 500 liter 1.4435 SS jacketed product receiver, manufactured by Hanag, rated -1/2 bar @ -30 to 200 degrees C internal; 6 bar @ -30 to 200 degrees C in the 1/2 pipe coil jacket, with bolted dished top, cone bottom, 1/2 pipe coil jacket on cone bottom, 1000mm diameter x 342 mm straight side with 682 mm deep cone bottom.
Entire system is sealed and designed for use in Solvent processes.
Previous use allowed solvent ladened product cake to be dried using ambient temperature in the cyclone air flow before being collected in the product bin

Motor Power: 11 kW (14.8 HP). Speed-RPM Maximum: 950. Load Weight: 480 kg (1,050 lb). Gas Tight: Yes.

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Model: J8P-S

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Basket Diameter: 800 mm (31.5 in)

Basket Depth: 360 mm (14.2 in)

sanitary perforated basket centrifuge 140 kg wet material with handbrake openings: 2-75mm feed pipes, 1-75mm filtrate outlet, 2-75mm sightglasses

Filtration Area: 0.9 m² (9.7 ft²). Motor Power: 2.2 kW (3 HP). Speed-RPM Maximum: 960. Load Weight: 140 kg (308.6 lb).

Type: Centrifuge-Basket

Subtype: Manual Discharge-Top

Manufacturer: Ferrum

Model: POR-1250

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 600 mm (23.6 in)

highly polished 316L (1.4435) stainless steel basket centrifuge basket thickness 12mm, pressure 1.8 bar @ 150 degrees C half of the top cover hinges/opens, open/close assist driven by a power pack, cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards.

Filtration Area: 2.4 m² (25.3 ft²). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 480 kg (1,050 lb).

Type: Centrifuge-Basket

Subtype: Auto Discharge-Bottom

Manufacturer: Ferrum

Model: DSZ

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,250 mm (49 in)

Basket Depth: 610 mm (24 in)

brushed finish internal, and sanitary lid is 316 SS basket is 316 SS and cone is 316 SS. pull action filter for gentle handling of material. It allows the centrifuge to function with out a scraper knife, making it ideal for sensitive products. The pneumatic pull mechanism allows for no heel to be left over after discharge. This design works excellent in the fine chemicals, pharmaceutical, and the food industries. Manufactured to GMP standards with FDA approved parts. The basket aperture is 34.5", The Feed disk drive is driven by a Reliance Duty Master serial # 01MAP61661G001CE,3 HP, 1770 RPM, 230/460v,60 Hz Inverter ready, The cover is hinged, with hydraulic power pack for lid lifting (opening). The maximum height (for lid to open) is 121.5", the maximum width is 94.5" X maximum depth of 86.6" nitrogen purged. No CIP spray balls.

Filtration Area: 2.5 m² (26.5 ft²). Motor Power: 22 kW (29.5 HP). Speed-RPM Maximum: 950. G Force: 630. Load Weight: 500 kg (1,100 lb). Gas Tight: Yes.
