Compressor 6,800 m3/h (4,000 CFM) For Sale - IPP# 210372

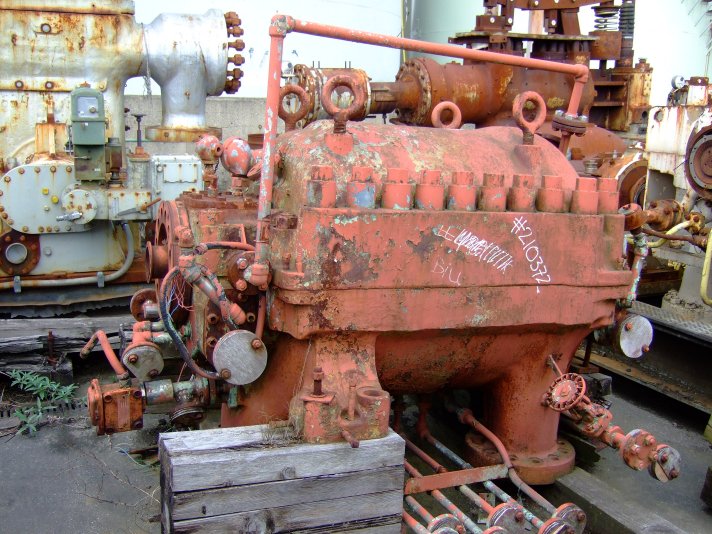

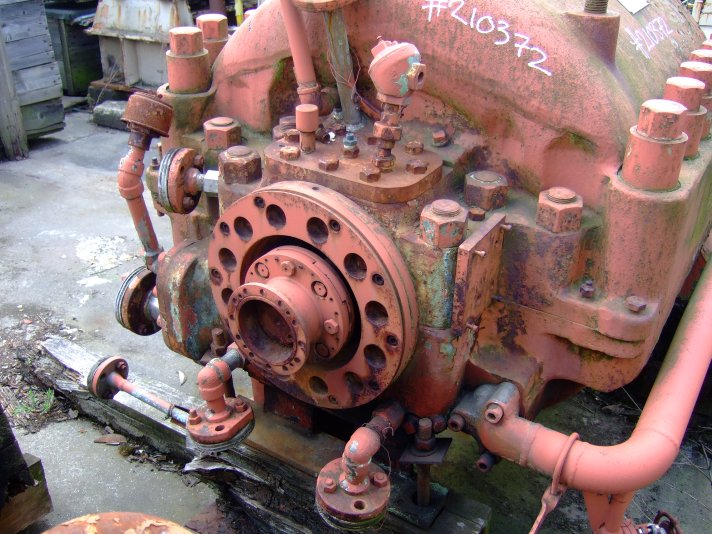

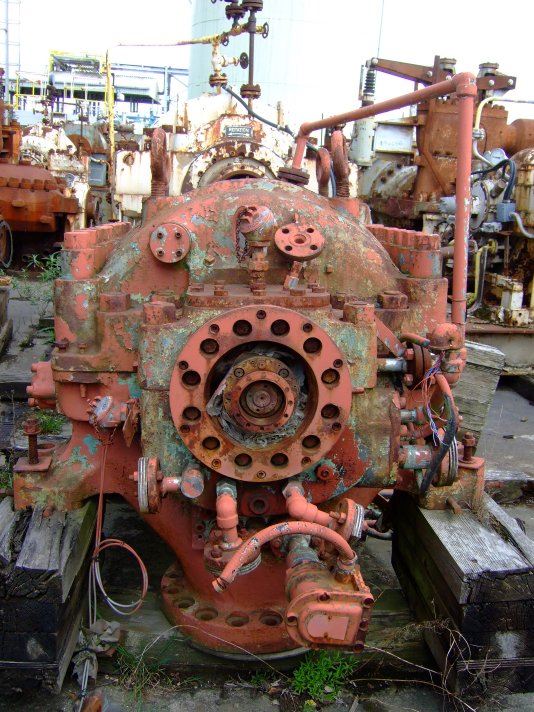

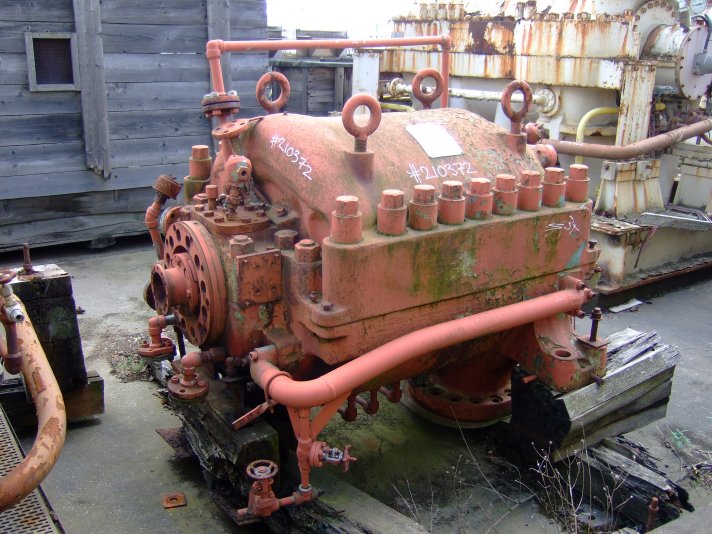

Name: 6,800 m3/h (4,000 CFM) Compressor
Brand: Ingersoll Dresser
SKU: 210372

Overview

Type:

Compressor

Manufacturer:

Ingersoll Dresser

Model:

2M7

Condition:

Used

Other Specifications

Inlet Pressure:

2.6 bar (38.3 psi)

Discharge Pressure:

19.6 bar (284.3 psi)

Speed (RPM):

8,600

Inlet Temperature:

-6.6 °C (20.1 °F)

Discharge Temperature:

143 °C (289.4 °F)

First Critical:

Yes

Capacity

Flow Rate:

6,800 m3/h (4,000 CFM)

Motor

Motor Power:

2,150 kW (2,900 HP)

Additional Information

second stage only ethylene gas refrigeration compressor inlet flow 6781 cu meter/hr (3,990 cu ft/min) inlet pressure 2.64 barg (40 psi) inlet temp -6.6 deg C Discharge pressure 19.6 barg (288 psi) discharge temp 143 deg C 8600 rpm critical speed 6510 rpm Rated 2168 KW the casing is fitted w/floating ring oil seals and are designed for operation in a refrigeration system on ethylene gas
