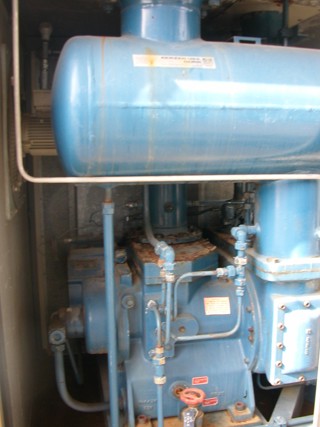

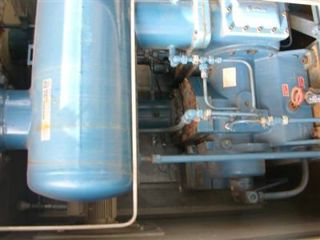

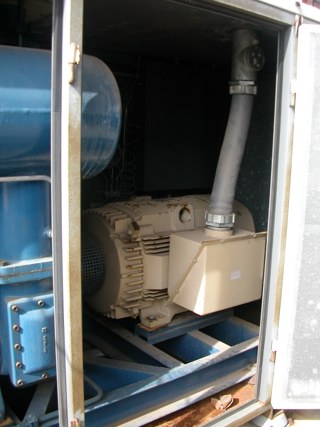

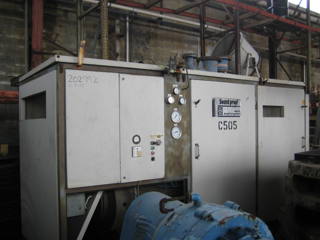

air cooled rotary screw compressor oil free This is a twin shaft screw compressor This is a twin shaft 55 psia @ 60 degrees F outlet pressure The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute General Electric Extra Severe Duty AC motor The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.
Type: Compressor
Subtype: Rotary
Manufacturer: Aerzen Corp
Model: VM 337
Condition: Used
Compressor Type: Rotary
Inlet Pressure: 1.01 bar (14.7 psi)
air cooled oil free rotary screw compressor This is a twin shaft screw compressor, positive displacement type 55 psia @ 60 degrees F outlet pressure The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute 321 amps General Electric Energy Saver AC motor The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.
Discharge Pressure: 3.8 bar (55 psi). Flow Rate: 2,744 m3/h (1,615 CFM). Inlet Diameter: 203.2 mm (8 in). Speed (RPM): 3,550. Oil Free: Yes.
