Pilot plant
system
Product contact is 10RA polished
with carbon steel jacket
Jack rated 150 psi @ 650 F
Designed for pilot use, can use either Teflon or Graphite wiper blades
with a 2 HP drive motor
with double kalrez seals
System consists of the following pieces.
PU-6F – Wipe film evaporator bottom pump, Alpha Laval Lobe Pump, rated 20 gpm @ 200 psi, 316 stainless steel, 1.5 HP @ 1750 rpm, sanitary pump.
TK-10-F –Wipe film evaporator bottom accumulator tank. 35-gallon, 316 stainless steel polished, rated FV 100 psi @ 650 F. 2’ x 1’.6 straight side with welded dish heads, carbon steel jacket rated 150 psi @ 400 F.
TK-9F- Wipe film evaporator overhead receiver. 30-gallon, 316 L stainless steel, rated 100 psi @ 400 F. 1’X 6’X 2’ straight side. CN4F, CN5F Primary secondary condensers, bolted together, 12 SQ. Ft. 2 each at 6 Sq. Ft. Shell and tube, 316 stainless steel heads, 316 stainless steel tubes, carbon steel shell, shell rated 150 psi @ 400 F.
Tubes rated 150 FV @ 600 F. 10 RA polished.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 79.4 kg/h (175 lb/h)
Total Heat Transfer Surface Area: 3.3 m² (35 ft²)
wiped film evaporator system. Jacket rated for 160 psi at 650 degrees F. Drive system by Pfaudler, 3 DTW With 158 Sq.Ft. external condenser, 316 SS tubes 316 SS tube sheet 316 SS heads CS shell NB # 43399 Shell side rated for 75 psi at 350 degrees F tube side rated for 75 psi at 350 degrees F. Serial # R384-1817. TEMA type BEU
Orientation: Vertical. Diameter: 914.4 mm (36 in). Height: 1,118 mm (44 in). Pressure: 1.03 bar (15 psi). Temperature: 343.3 °C (650 °F). Vacuum: Yes.

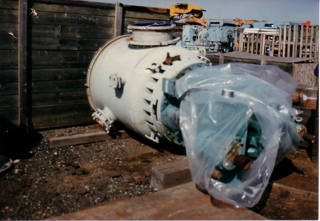

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Condition: Re-glassed
Material: Glasslined
Evaporation Rate: 242.7 kg/h (535 lb/h)
Total Heat Transfer Surface Area: 10 m² (107.6 ft²)
Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.
Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.
Orientation: Vertical. Diameter: 1,219 mm (48 in). Height: 1,067 mm (42 in). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Pfaudler VS80-U21983.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Model: 103.4-36V-274
Condition: Unused
Material: Stainless Steel 304
Evaporation Rate: 226.8 kg/h (500 lb/h)
Total Heat Transfer Surface Area: 9.5 m² (102 ft²)
Orientation: Vertical. Diameter: 889 mm (35 in). Height: 4,648 mm (183 in). Pressure: 5.9 bar (85 psi). Temperature: 300 °C (572 °F). Internal Condenser: Yes. Internal Condenser size: 2.4 m² (25.4 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: CGL.

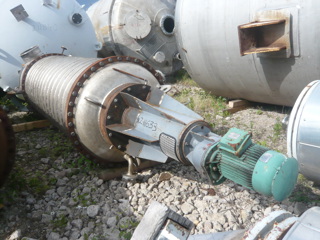

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: CARL GANZLER
Model: 900/6,0-K10
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 145.1 kg/h (320 lb/h)
Total Heat Transfer Surface Area: 6 m² (64.6 ft²)
Short Path wiped film evaporator system with internal condensor Includes 2.9m² SS cold trap Rated 2000 liter 95 liter in the jacket Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor Evaporator has a side bottom discharge for product Vessel weight empty 2600 kg; motor and rotor 800 kg.
Orientation: Vertical. Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eberhard Bauer DF 2A45HZ/309.
