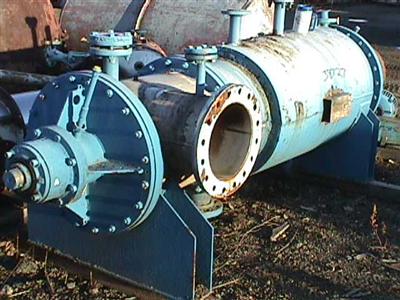

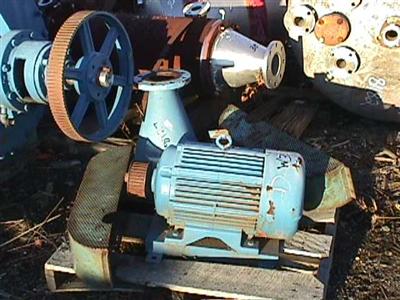

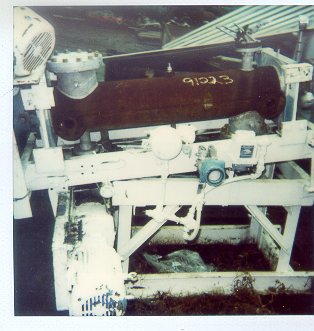

Consists of 20 sq ft Artisan horiz 316SS thin film evaporator. jkt rated 150 psi @ 400 deg F. 316SS rotor. Shell 2' dia x 5'6" long; btm head 2' dia x 2' long. Segmented. Mech seal. Belt driven by 7.5 HP, 1170 rpm, 3/60/230/460 volt motor. w/belt guard.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Artisan
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 6.8 kg/h (15 lb/h)
Total Heat Transfer Surface Area: 0.28 m² (3 ft²)

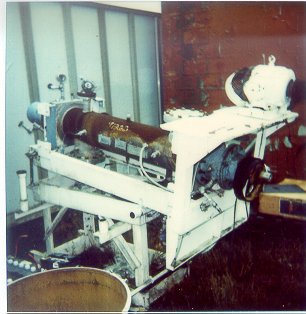

hot oil jacket rated 30 psi/full vacuum @ 450 deg F. Driven by 7.5 HP, 3/60/230/460 volt, 1750 rpm motor. With 3 HP, 3/60/230/460 volt, 1750 rpm rotary gear pump.
Pressure: 1.03 bar (15 psi). Temperature: 232.2 °C (450 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Artisan
Model: R-49-3-1H-70
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 181.4 kg/h (400 lb/h)
Total Heat Transfer Surface Area: 7.4 m² (80 ft²)

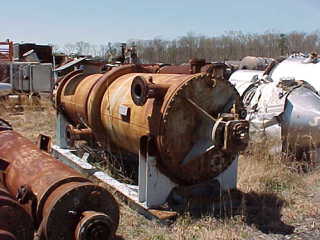

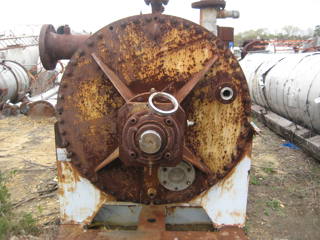

Kontro wiped film evaporator shell rated 25 psi @ 750 deg F. Jacket rated 65 psi @ 750 degree F. Has removable 18" diameter rotor. Mechanical seal. Has 1/2 CS jacket with expansion joint. Has outboard bearings. Has 12" diameter inlet, 8" diameter outlet. Belt driven by 40 HP, 3/60/208/220/440 volt, 885 rpm motor, UL label.
Orientation: Horizontal. Diameter: 1,050 mm (42 in). Height: 2,150 mm (84 in). Pressure: 1.72 bar (25 psi). Temperature: 398.9 °C (750 °F). Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buss-SMS-Canzler GmbH
Model: 450/3,5-KO
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 3.5 m² (37.7 ft²)
Orientation: Vertical
wiped thin film evaporator with external condensor and seperator tank rated 440 liter With top mounted 3.7 KW, 50 Hz gear motor, mechanical seal on rotor, (4) blade rotor with wipers With 2 SqM external 1.4435 SS spiral coil condenser, manufactured by Zurcher, Serial number 630, rated -1/2 bar @ -20 to 200 degrees C in vessel; -1/6 bar @ -20 to 200 degrees C in the coil. Vessel is 419mm diameter x 936mm tangent to tangent, with bolted dished top, dished bottom, and (2) bank of internal spiral condensing coil. Coil and tank are 1.4435 SS.
Diameter: 450 mm (17.7 in). Height: 4,250 mm (166.7 in). Pressure: 16 bar (232.1 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eberhard Bauer DF 2A43HZ/309.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buss-SMS-Canzler GmbH
Model: 900/6,5-K10
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 6.5 m² (70 ft²)
Diameter: 900 mm (35.4 in)
Short Path wiped film evaporator system with internal condensor includes SS seperator tank Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, Graphite wipers on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.
Height: 4,700 mm (185.6 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Brown Boveri eQU 112 MB4.
