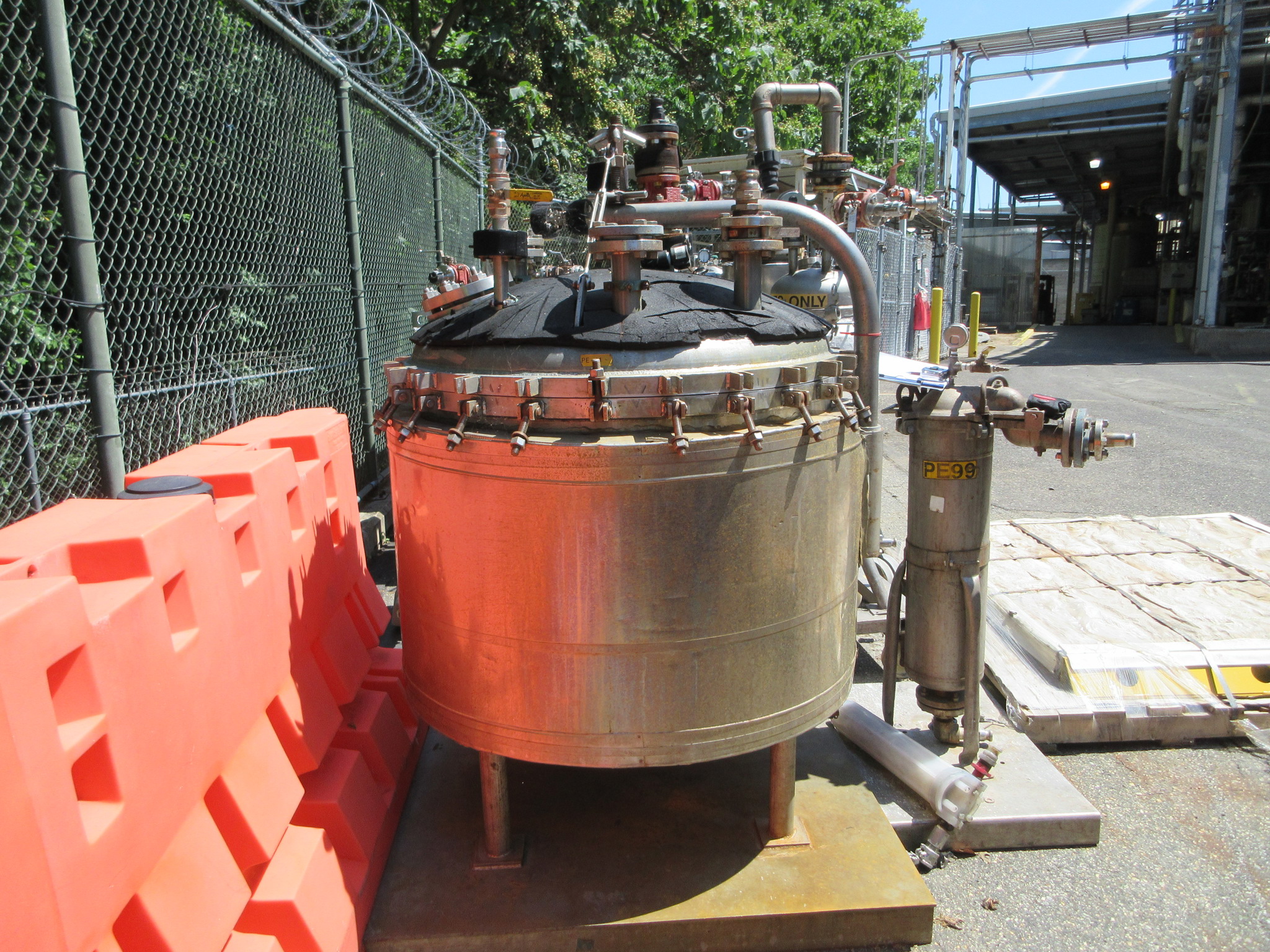

Hastelloy - C276 American Alloy Fabricators Nutsche Filter - IPP# 246623

  • Hastelloy - C276 American Alloy Fabricators Nutsche Filter - IPP# 246623 Hastelloy - C276 American Alloy Fabricators Nutsche Filter - IPP# 246623
  • Hastelloy - C276 American Alloy Fabricators Nutsche Filter - IPP# 246623
Overview
Filter
Nutsche
American Alloy Fabricators
Used
Hastelloy - C276
Capacity
1.16 m² (12.5 ft²)
0.425 m3 (15 ft3)
Dimensions
1,016 mm (40 in)
Vertical
432 mm (17 in)
432 mm (17 in)
Other Specifications
3.45 bar (50 psi)
177 °C (350 °F)
Yes
4" sight glass, Four 2" nozzles, two 1" spray nozzles
5,512 mm (217 in)
Legs
Mounted on a portable cart with wheels
ST
Jacket
Yes
6.21 bar (90 psi)
Standard
Stainless Steel 304
177 °C (350 °F)
Top Head
Dish
Hastelloy - C276
Bolted
Bottom Head
Flat
Hastelloy - C276
Welded

Similar Equipment

Nutsche Filter Cogeim agitated jacketed pressure Hastelloy - C276

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FFP 600 FF-S

Condition: Used

Material: Hastelloy - C276

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110 in)

  • design pressure internal 4 bar + full vacuum @ -29/185 degrees C (9100 liter),
  • jacket 10 bar + full vacuum @ -29/185 degrees C (165 liter),
  • fixed bed design,
  • 6.5-13 rpm shaft speed,
  • driven by 10/6.6kw 3/50/415 volt, 1500/750 rpm EExd IIB T4 motor via a reduction gearbox,
  • reversing agitator for discharging,
  • packed gland,
  • shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
  • side discharge with hydraulic valve,
  • 304L stainless steel half pipe coil jacket on straight side,
  • carbon steel half pipe coil jacket on filter base,
  • slurry outlet with a 100/80mm SCHUF valve,
  • weld dished top, weld flat bottom,
  • 2.8m diameter x 1050mm straight side,
  • internal wash ring/spray bar,
  • side inspection manway with cover and davit,
  • mounted on feet with load cells,
  • design code: ASME VIII DIV I ED 89 + ADD 90,

system includes

  • (1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes (1) 340 Nm3/hr 316L stainless steel PMZK 3817 D3x6 vacuum pump, manufactured by Sulzer Burkhardt, serial #52771, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
  • (1) 60m3/hr @ 13.6m head 316 stainless steel centrifugal pump (P1), manufactured by Girdlestone, type 12CSD2G, serial #53451, size 80-50-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, sealless type, mounted on a baseplate,
  • (1) 10m3/hr @ 26m head PFA lined centrifugal pump (P2), manufactured by Richter, type PCK/F 32-160, serial #917493/3/3, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).

Hastelloy - C276 Cogeim FPP 600 FF-S Agitated Jacketed Pressure Nutsche Filter

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FPP 600 FF-S

Condition: Used

Material: Hastelloy - C276

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110 in)

  • design pressure internal 4 bar + full vacuum @ -29/185 degrees C (9100 liter),
  • jacket 10 bar + full vacuum @ -29/185 degrees C (165 liter),
  • fixed bed design,
  • bottom discharge
  • 6.5-13 rpm shaft speed,
  • driven by 10/6.6kw 3/50/415 volt, 1440/725 rpm EExd IIB T4 motor via a reduction gearbox,
  • reversing agitator for discharging,
  • packed gland,
  • shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
  • 304L stainless steel jacket on straight side,
  • carbon steel half pipe coil jacket on filter base,
  • slurry outlet with a 100/80mm SCHUF valve,
  • internal wash ring/spray bar,
  • side inspection manway with cover and davit,
  • design code: ASME VIII DIV I ED 89 + ADD 90,

(1) 60m3/hr @13.7m head 316 stainless steel centrifugal pump, manufactured by Girdlestone, type 12GSD2G, serial #58645, size 80-50-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, mounted on a baseplate,

(1) 10m3/hr @ 26m head 316 stainless steel centrifugal pumps, manufactured by Richter, type PCK/F 32-160, serial #917493/3/1, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mounted on a baseplate,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).

Hastelloy - C276 Cogeim FFP 400 FMS Agitated Jacketed Pressure Nutsche Filter

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FFP 400 FMS

Condition: Used

Material: Hastelloy - C276

Filtration Area: 4 m² (43.1 ft²)

Diameter: 2,300 mm (90.6 in)

  • design pressure internal 4 bar + full vacuum @ -29/185 degrees C (5400 liter),
  • jacket 10 bar + full vacuum @ -29/185 degrees C (120 liter),
  • 304L stainless steel coil jacket on straight side and bottom filter base,
  • 7.3-14.6 rpm shaft speed,
  • driven by 10/6.6kw 3/50/415 volt, 1500/750 rpm EExd IIB T4 motor via a reduction gearbox,
  • reversing agitator for discharging,
  • packed gland,
  • shaft with Hydraulic raise/lower mechanism, bottom filter bed with raise/lower mechanism, both driven by a hydraulic power pack, powerpack driven by 4kw, 3/50/415 volt 1430 rpm EExd IIB T4 motor,
  • side discharge with hydraulic valve,
  • slurry outlet with a 80/80mm SCHUF valve,
  • filter bed on wheels for cleaning,
  • side inspection manway with cover and davit,
  • design code: ASME VIII DIV 1 ED. 89 + A.90,

(1) 60m3/hr @ 13.6m head 316L stainless steel centrifugal pump, manufactured by Girdlestone, type 12CSD2G, serial #53453, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate,

(1) 10m3/hr centrifugal pump, manufactured by Chemquip Fluid Engineers, type PCK/F32-160, serial #546336/8/2, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).
