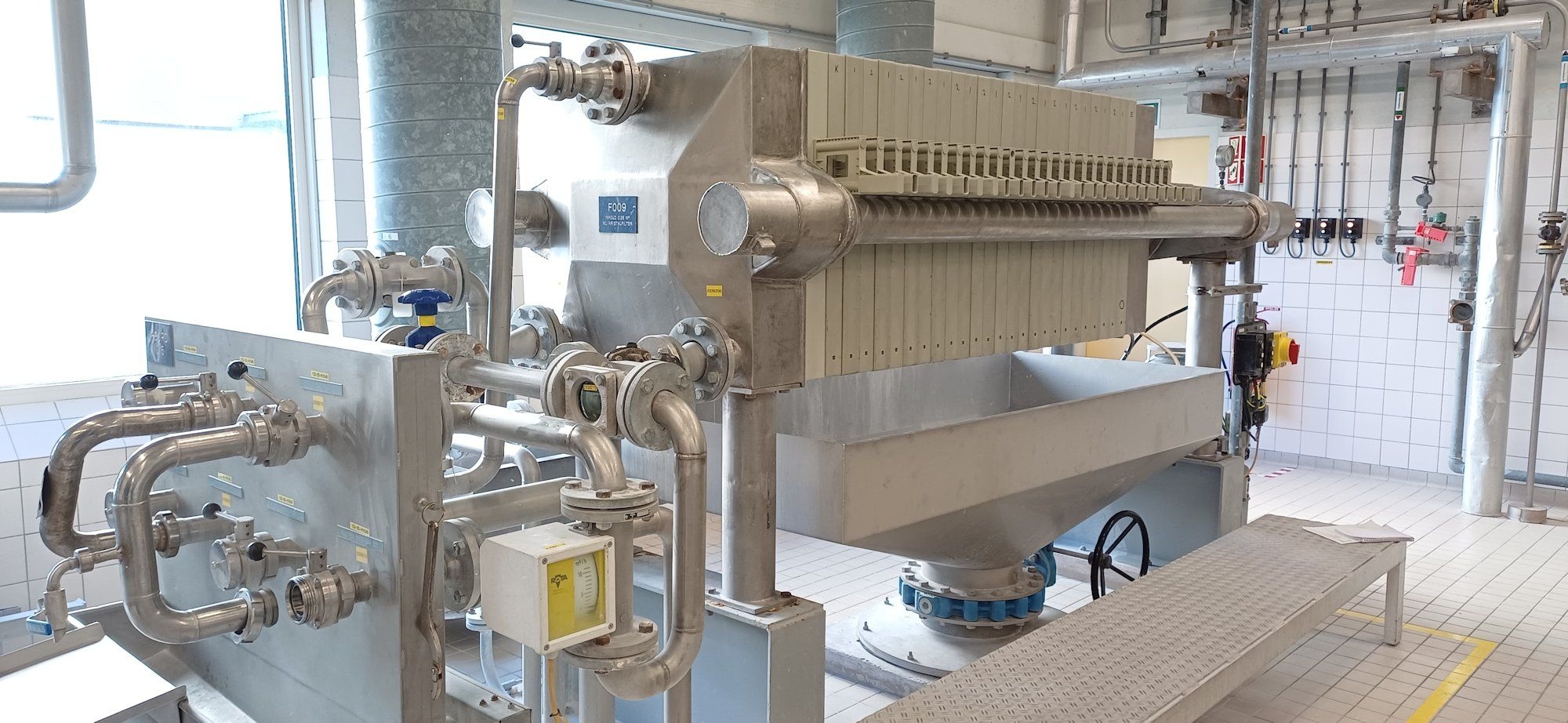

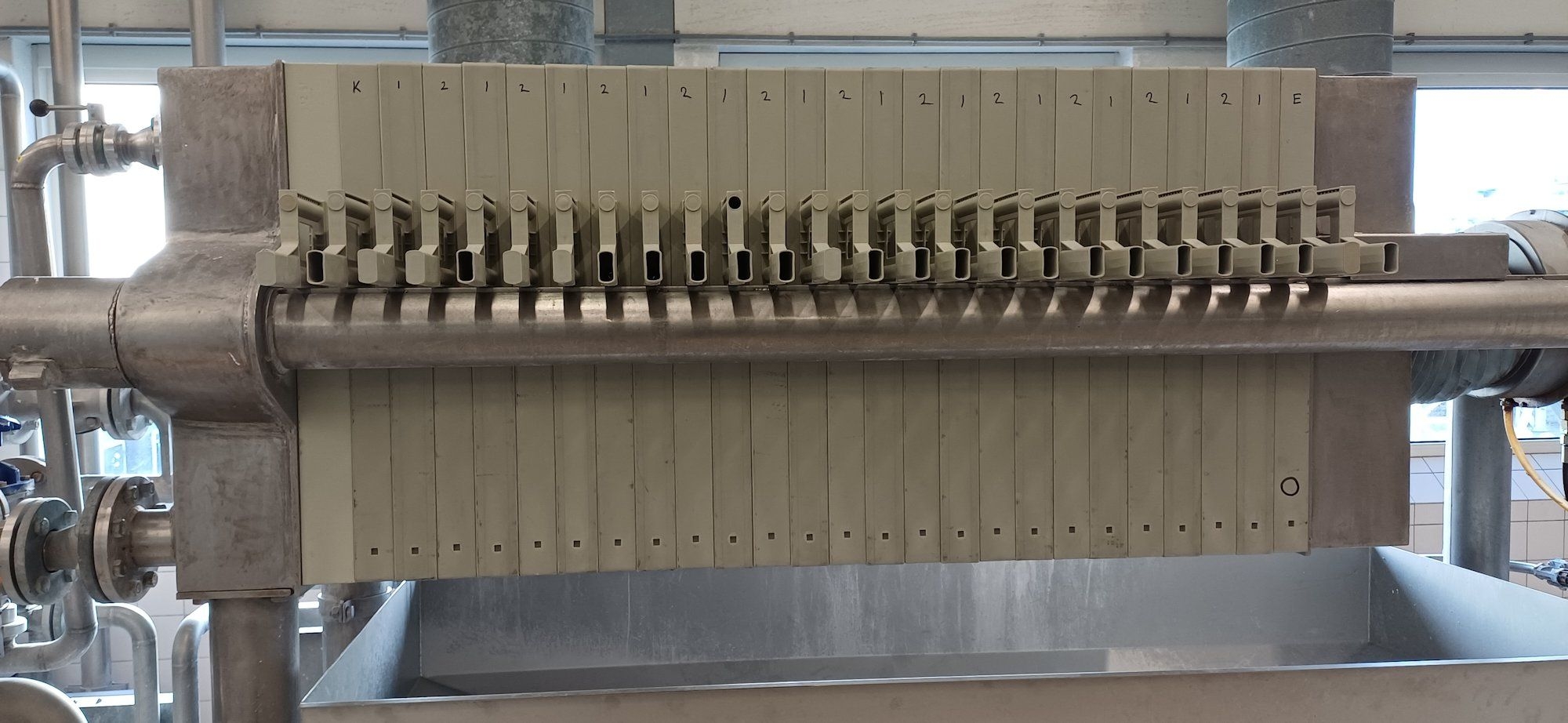

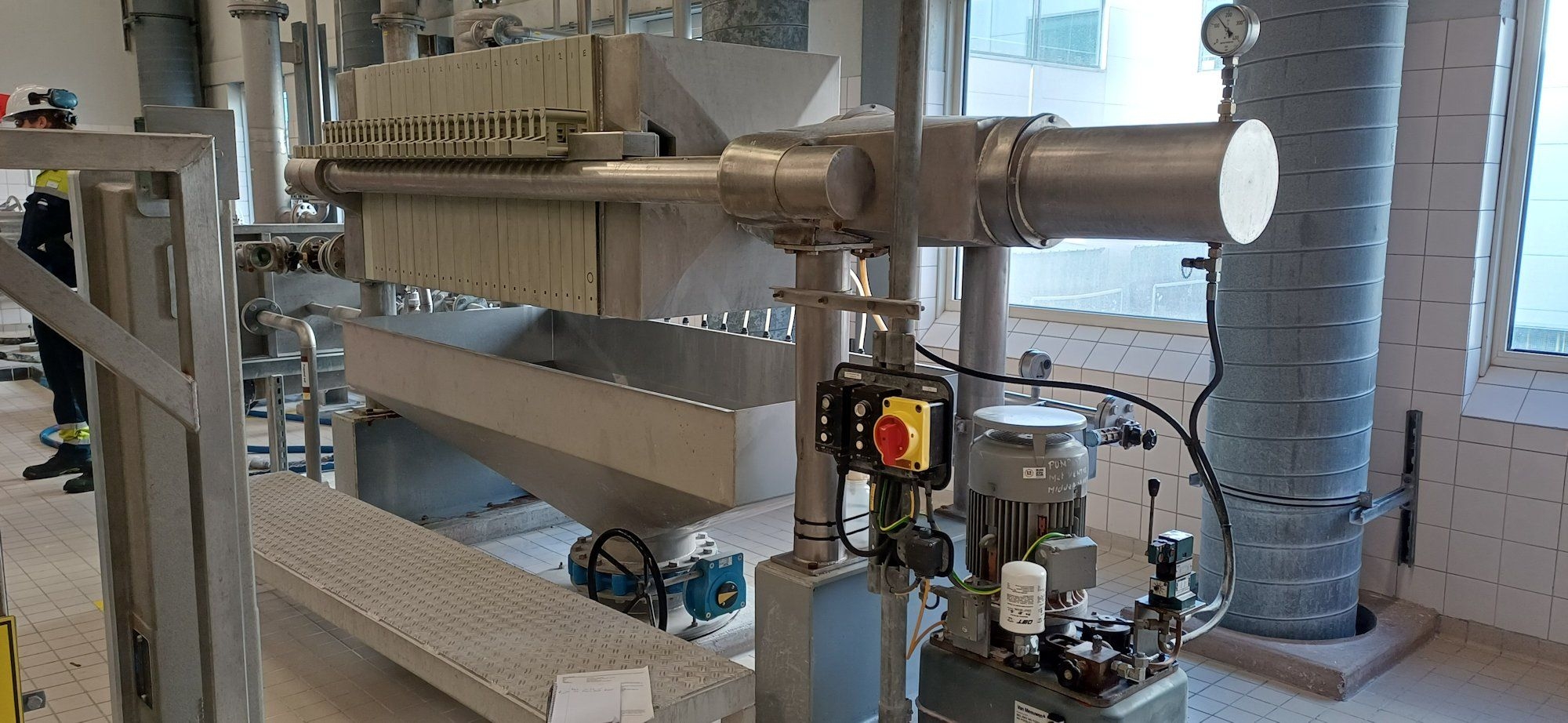

Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267

  • Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267 Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267
  • Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267 Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267
  • Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267 Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267
  • Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267
  • Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267
  • Polypropylene 800 x 800mm Membrane Filter Press - IPP# 248267
Overview
Filter
Press
Used
Polypropylene
Capacity
25.1 m² (270.4 ft²)
0.35 m3 (12.4 ft3)
Other Specifications
6 bar (87 psi)
95 °C (203 °F)
Yes
Center feed
Yes
Gasketed Membranes
Frame Mounted with Feet
Plates
Membrane Plates
24
Polypropylene
800 mm (31.5 in)
800 mm (31.5 in)
72 mm (2.8 in)
Yes
Hydraulics
Yes
MOC
316L stainless steel
Additional Information
  • (13) 800mm x 800m Lenser Polypropylene membrane plates (12) chambers and (2) end plates,
  • (12) plates with pipes for cake membrane blow off,
  • CIP temperature 95 degrees C
  • wash temperature 8-10 degrees C
  • top center feed,
  • 2 bottom corner discharge,
  • hydraulic press mechanism with powerpack,
  • 316L (1.4404) stainless steel discharge chute,
  • 316L (1.4404) stainless steel skeleton,

Similar Equipment

Polypropylene Shriver Press Filter

Type: Filter

Subtype: Press

Manufacturer: Shriver

Model: Size 12

Condition: Used

Material: Polypropylene

Filtration Area: 2.6 m² (28 ft²)

Pressure: 6.9 bar (100 psi)

  • Polypropylene filter press, Size 12 2 eye corner feed, With (13) 2 button frames 9.5"ID x 8" ID x 1" thick, and (14) plates - (8) are 1 button with nozzles, (7) are 3 button washing type.
  • Manual closure, Portable design.

Cake Volume: 0.017 m3 (0.6 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 13. Number of Plates: 14. Plate MOC: Polypropylene. Skeleton MOC: Carbon steel. Plate Diameter or Width: 304.8 mm (12 in). Plate Height: 304.8 mm (12 in). Plate Thickness: 25.4 mm (1 in). Plates Shifted By: Manual.

Polypropylene Seitz 40/60 Press Filter

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

  • Seitz Enzinger plate and frame filter press (4) eye
  • Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Polypropylene. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plates Shifted By: Manual.

Polypropylene Seitz 40/60 Press Filter

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

  • Seitz Enzinger plate and frame filter press (2) end plates;(4) eye.
  • Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 22. Number of Plates: 22. Plate MOC: Plastic. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.

Polypropylene Seitz 40/60 Press Filter

Type: Filter

Subtype: Press

Manufacturer: Seitz Enzinger

Model: 40/60

Condition: Used

Material: Polypropylene

Filtration Area: 5.2 m² (55.4 ft²)

Pressure: 6 bar (87 psi)

  • Seitz Enzinger plate and frame filter press (4) eye
  • Manual Screw closure

Cake Volume: 0.002 m3 (0.07 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 24. Number of Plates: 23. Plate MOC: Plastic. Skeleton MOC: 304 SS. Plate Diameter or Width: 400 mm (15.7 in). Plate Height: 400 mm (15.7 in). Plate Thickness: 12 mm (0.47 in). Plates Shifted By: Manual.
