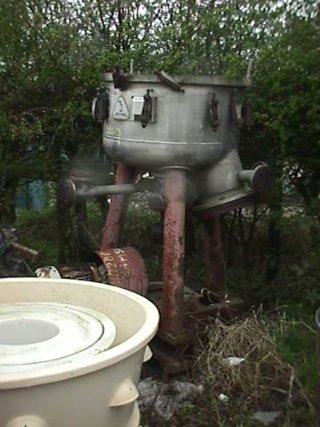

IPP# 89367 - Pressure Leaf Filter 5.7 m² (61.4 ft²) Stainless Steel 316 For Sale

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR5KL

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 813 mm (32 in)

pressure leaf filter body
Discharge type: centrifugal
Tank capacity: 350 litres
Serial number: KH839
Int rated 6 bar/full vac @ 200 deg C
Unit will take (10) leaves
Vessel is 900mm (36").
No leaves w/unit.

Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-S80

Condition: Used

Material: Stainless Steel 321

Filtration Area: 80 m² (861 ft²)

Diameter: 1,500 mm (59.1 in)

vessel volume 5250 liter
approx 1.6m diameter x 1.6mm straight side vertical chamber, approx 300mm discharge, mounted on (3) stainless steel legs,
associated equipment includes 1 x 3000 liter vertical stainless steel pressure tank,
pressure 0,5 bar to 20°C, 1.4m diameter x 1.4m straight side, weld dished top, weld coned bottom, mounted on 3 legs, 1 x approx 600 liter stainless steel tank with agitator, 2 x diaphragm pumps, 1 x Hilge centrifugal pump.

Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 20 °C (68 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-S80

Condition: Used

Material: Stainless Steel 321

Filtration Area: 80 m² (861 ft²)

Diameter: 1,500 mm (59.1 in)

Centrifugal discharge pressure leaf filter
Vessel volume: 5250 ltr
approx 1.6m diameter x 1.6mm straight side vertical chamber
associated equipment includes, 2 x diaphragm pumps, 1 x Hilge centrifugal pump,

Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 20 °C (68 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-S40

Condition: Used

Material: Stainless Steel 321

Filtration Area: 40 m² (431 ft²)

Diameter: 1,200 mm (47.2 in)

Centrifugal discharge pressure leaf filter

• Vessel number: 5062GW
• Vessel volume: 2000 ltr
  (1) end head plate, (104)
  approx 1.2m diameter x 1.5mm straight side vertical chamber
  associated equipment includes, 1 x 1800 ltr 321. stainless steel vertical pressure tank, 0.5 bar @ 20° C, weld dished top and bottom, 1 x approx. 268 ltr stainless steel vertical aggitated tank, (1) auma (system Lewa) pump system type: EHV-L, serial#328114-010.004 (3) electrical panels

Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 20 °C (68 °F).
