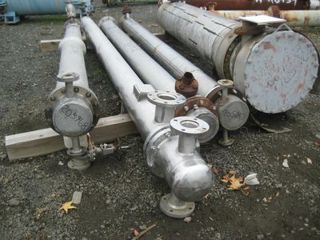

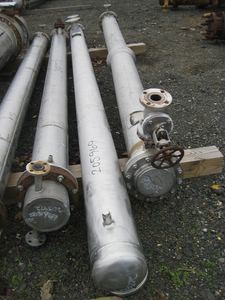

Heat Exchanger - IPP# 233890

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Doyle & Roth

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 7.9 m² (85 ft²)

Orientation: Horizontal

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 65.6 °C (150 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 65.6 °C (150 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Stainless Steel 304. Length: 4,550 mm (180 in). Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,250 mm (168 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell side inlet & outlet: 4" flange - Tube side inlet & outlet: 3" flange.
