Type: Heat Exchanger
Manufacturer: DeDietrich
Condition: Used
Material: Glasslined

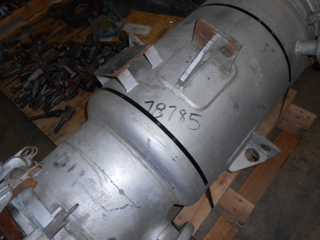

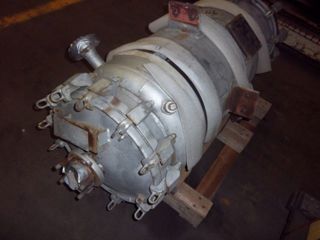

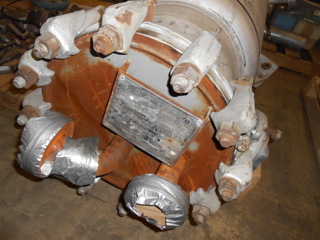

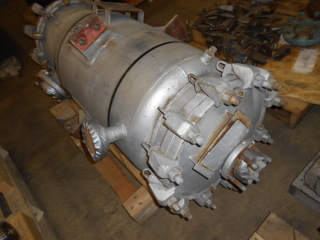

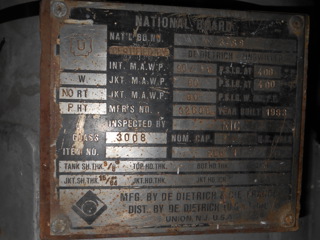

21.5 sq ft (2 sq meter) DeDietrich glass lined thimble condenser. NB # 3288 Internal rated for FV/90 psi at 400 degrees F, jacket rated for 90 psi at 400 degrees F. Manufactured by DeDietrich, MFR 32606.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: DeDietrich
Condition: Used
Material: Glasslined
Heat Transfer Surface Area: 20 m² (215.3 ft²)
Orientation: Vertical
Design pressure tube side -1/10 bar @ -10/200 degrees C, shell side -1/10 bar @ -10/200 degrees C, heat exchanger in 2 x sections, 2-reduction heads, tube material is silicon carbide (SiC)
Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Glasslined. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Hexoloy SE (Sintered Silicon Carbide). Tubesheet Material: PTFE Lined. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Head Material: Carbon Steel. Length: 4,800 mm (189 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 151. Tube Diameter: 14 mm (0.55 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Tube side: (2) DN150; shell side: (2) DN150;. Capacity: 180 L (47.6 gallons). Heat Exchanger Tube Capacity: 66 L (17.4 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: DeDietrich
Condition: Used
Material: Glasslined
Heat Transfer Surface Area: 20 m² (215.3 ft²)
Orientation: Vertical
design pressure tube side -1/10 bar @ -10/200 degrees C, shell side -1/10 bar @ -10/200 degrees C,
Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Glasslined. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Glasslined. Tubesheet Material: Glasslined. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Head Material: Glasslined. Length: 4,800 mm (189 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 121. Tube Diameter: 14 mm (0.55 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Tube side: (2) DN150; shell side: (2) DN150;. Capacity: 180 L (47.6 gallons). Heat Exchanger Tube Capacity: 66 L (17.4 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: DeDietrich
Condition: Used
Material: Glasslined
Heat Transfer Surface Area: 20 m² (215.3 ft²)
Orientation: Vertical
design pressure -1/10 bar @ -10/200 degrees C, shell side -1/10 bar @ -10/200 degrees C, tube material is silicon carbide (SiC);
Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Glasslined. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tubesheet Material: PTFE Lined. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Head Material: Glasslined. Length: 4,800 mm (189 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 151. Tube Diameter: 14 mm (0.55 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Tube side: (2) DN150; shell side: (2) DN150;. Capacity: 180 L (47.6 gallons). Heat Exchanger Tube Capacity: 66 L (17.4 gallons).
