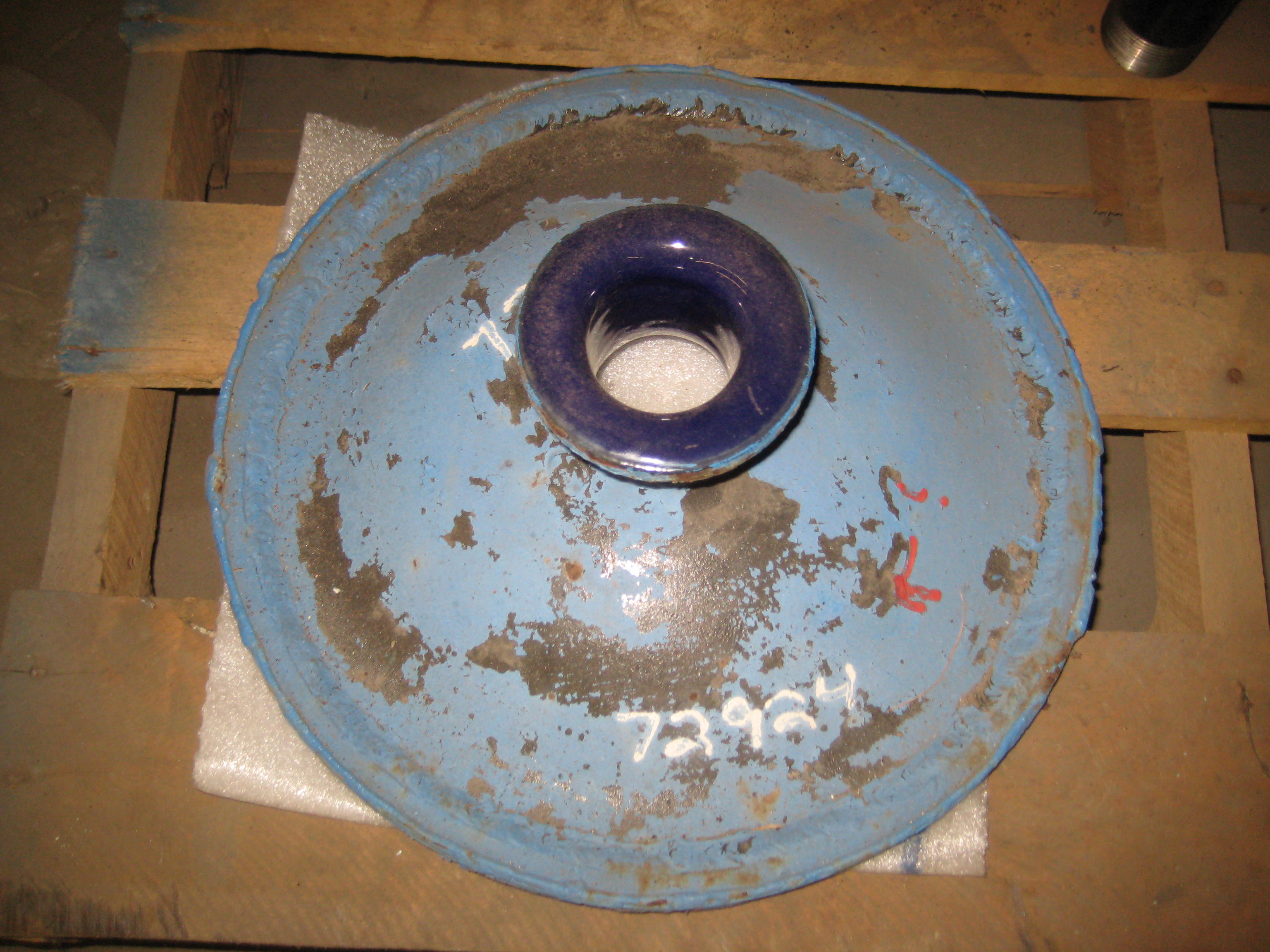

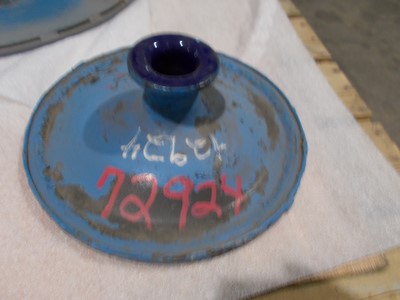

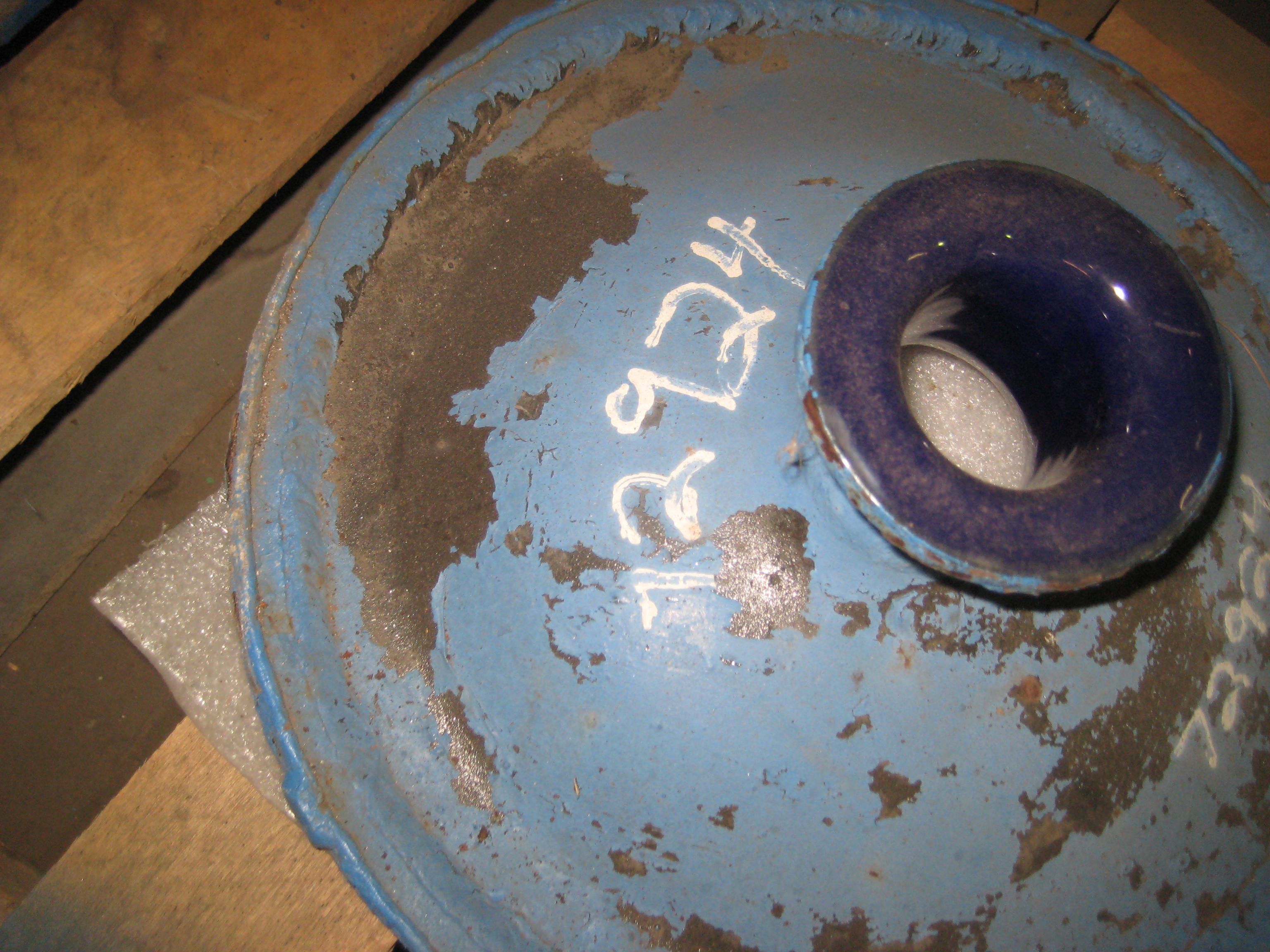

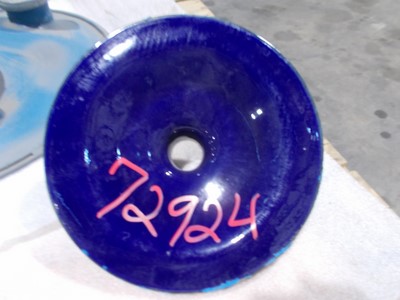

Glasslined Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Schott (Duran)

Model: R0B 80/300/S/3

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Shell Pressure: 1 bar (14.5 psi)

pressure tube side 3 bar @ 20 degrees C, total volume 22 liter; shell side -1/+1 bar @ 150 degrees C, total volume 58 liter Material HEADS s/steel 1.4301

Shell Temperature: 150 °C (302 °F). Shell Material: Glasslined. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 20 °C (68 °F). Tube Material: Glasslined. Vacuum: Yes. Shell Diameter: 20 mm (0.79 in). Head Material: Stainless Steel 304. Length: 3,300 mm (130.9 in). Tube Type: Straight Tube. Tube Diameter: 1 mm (0.04 in). Tube Length: 2,900 mm (114.2 in). Nozzle Schedule: (2) .

Glasslined Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Schott (Duran)

Model: ROB 63/300/S/3

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 6.3 m² (67.8 ft²)

Shell Pressure: 0.85 bar (12.3 psi)

pressure product side: 3 bar @ 15 degress C, total volume 22 liter service side: -1/+0,85 bar @ 150 degress C, total volume 58 liter Material HEADS s/steel 1.4301

Shell Temperature: 150 °C (302 °F). Shell Material: Glasslined. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 15 °C (59 °F). Tube Material: Glasslined. Vacuum: Yes. Head Material: Stainless Steel 304.
