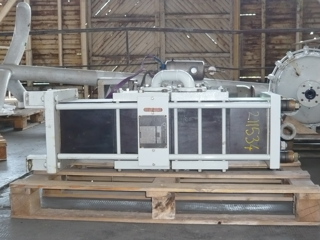

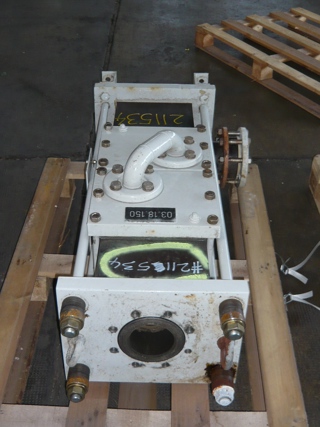

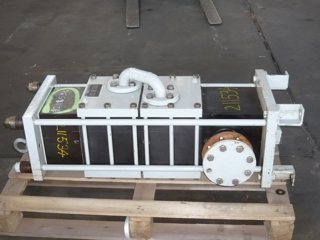

Block Heat Exchanger - IPP# 204550

Type: Heat Exchanger

Subtype: Block

Manufacturer: Carbone

Model: CL36-4PU-1-5

Condition: Used

Orientation: Vertical

Vacuum: Yes

Polybloc Graphilor Design pressure rated for 100/100 internal pressure rated for rated for FV/350 psi at 350 degrees F Test pressure rated for FV100/100psi

Type: Heat Exchanger

Subtype: Block

Manufacturer: Carbone

Model: CL36-4PU-1-5

Condition: Used

Orientation: Vertical

Vacuum: Yes

Polybloc Graphilor Design pressure rated for 100/100 internal pressure rated for rated for FV/350 psi at 350 degrees F Test pressure rated for FV100/100psi

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

• Estimated surface area to be 76 ft 2
• cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Vicarb

Model: NEC 2/10

Condition: Used

Heat Transfer Surface Area: 1.6 m² (17.2 ft²)

Shell Pressure: 7 bar (101.5 psi)

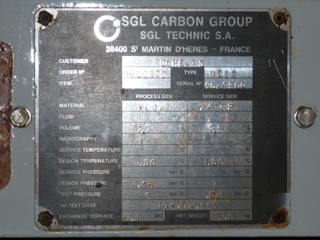

SGL Carbon cubic block heat exchanger

Vacuum: Yes. Nozzle Schedule: Openings - Service Side 3-40mm; Process side 1- 80mm, 1-100mm. Process Pressure: 6 bar (87 psi).
