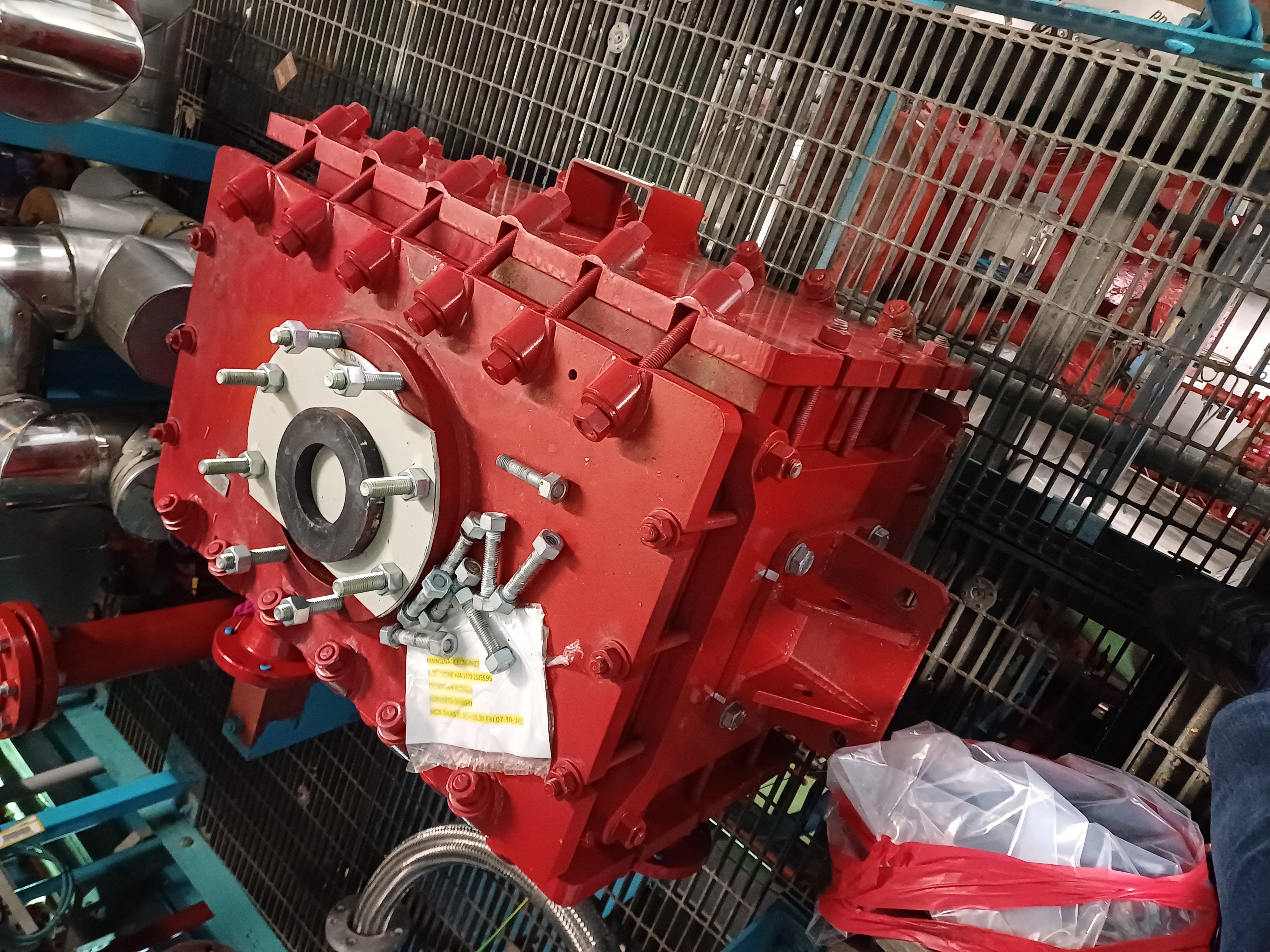

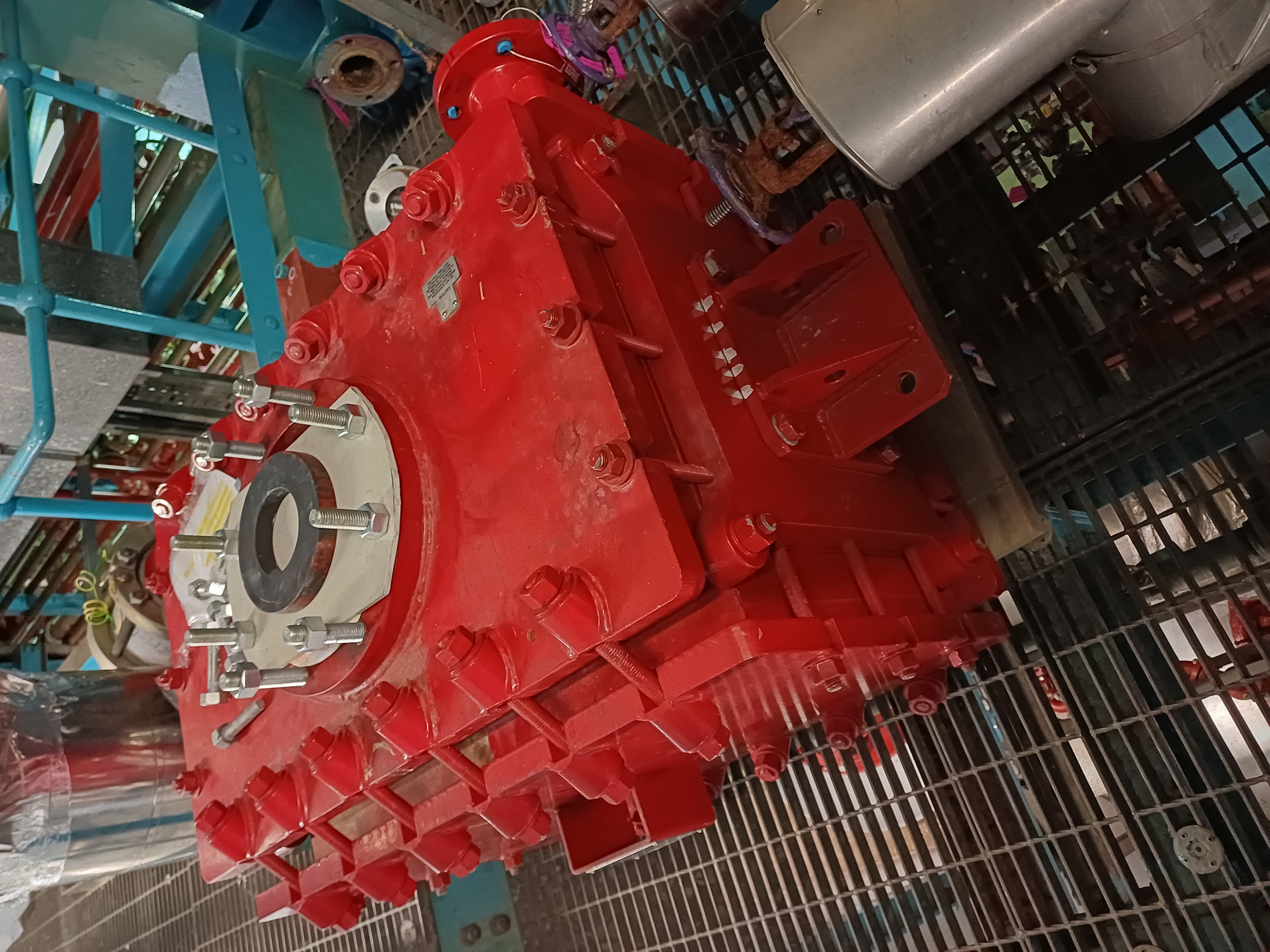

Name: Graphite Ralph Coidan CD 210 Block Heat Exchanger
Brand: Ralph Coidan LTD.
SKU: 242465

Ralph Coidan CD 210 Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: CD 210

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 19 m² (204 ft²)

Orientation: Horizontal

design pressure process side 6 bar + full vacuum @ -15/185 degrees C,
service side 8 bar @ -20/185 degrees C,
design code: ASME VIII DIV III DIV 1 PED CAT III GAS GROUP 1

Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Graphite. Vacuum: Yes. Head Material: Graphite. Nozzle Schedule: process side 1-200mm, 1-100mm, service side 2-80mm, . Process Pressure: 6 bar (87 psi). Pack Material: Graphite. Process Temperature: 185 °C (365 °F). Service Side Passes: 8. Process Side Passes: 1. Service Side Capacity: 62 L (16.4 gallons). Process Side Capacity: 47 L (12.4 gallons).

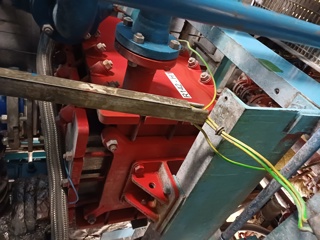

Ralph Coidan CD 210 Graphite Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: CD 210

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Horizontal

design pressure process side 6 barg + full vacuum @ -29/185 degrees C,
service side 8 barg + full vacuum @ -29/165 degrees C,
design code: ASME VII DIV I
PED CAT III Gas group 1
CE0040

Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Graphite. Vacuum: Yes. Head Material: Graphite. Nozzle Schedule: process side: 1-200mm, 100mm, service side 2-80mm, . Process Pressure: 6 bar (87 psi). Pack Material: Graphite. Process Temperature: 185 °C (365 °F). Service Side Passes: 8. Process Side Passes: 1. Service Side Capacity: 109 L (28.8 gallons). Process Side Capacity: 109 L (28.8 gallons).
