Tested to 150 psi Inlets and outlets are 2.5" flanged.

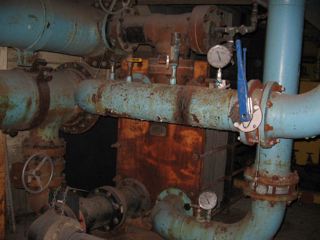

Type: Heat Exchanger
Subtype: Plate and Frame

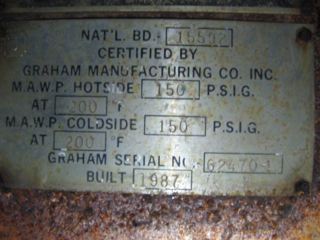

Manufacturer: Graham
Model: UF-60
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 84.5 m² (910 ft²)
Nozzle Schedule: Cold side inlet/outlet are 8", hot side inlet & outlet are 8". Six inch drain valve.
Pass Arrangement: H.S.-1, C.S.-1
Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 93.3 °C (200 °F). Housing Material: Carbon Steel. Number of Plates: 153.

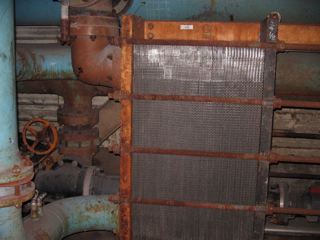

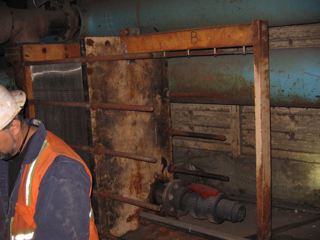

Type: Heat Exchanger
Subtype: Plate and Frame

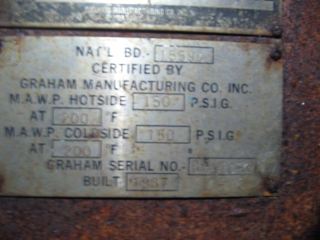

Manufacturer: Graham
Model: UF-60
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 84.5 m² (910 ft²)
Nozzle Schedule: Pass arrangement H.S.-1, C.S.-1Inlets and outlets are 8". Drain is 6".
pack with CS shell
Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 93.3 °C (200 °F). Housing Material: Carbon Steel. Number of Plates: 153.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: GEA Ahlborn GmbH Co KG/Germany
Model: N40
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 47.5 m² (512 ft²)
Cold-side Pressure: 12 bar (174 psi)
design BC-12 0.45 squaremeter heat exchange surface per plate, (plate package min 851mm, max 870mm), plate package is 868mm 321 (1.4541) stainless steel frame
Cold-side Temperature: 115 °C (239 °F). Hot-side Pressure: 12 bar (174 psi). Hot-side Temperature: 115 °C (239 °F). Housing Material: Stainless Steel 321. Number of Plates: 105.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Tranter
Model: GC-30NI*28
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 2.2 m² (23.8 ft²)
Nozzle Schedule: - Openings: 4-50mm
pressure side 1= -1/6 bar @ 170 deg C (2.9ltr) side 2= -1/6 bar @ 170 deg C (3.1ltr) test pressure both sides 10 bar c/steel frame
Housing Material: Carbon Steel. Number of Plates: 28.
