Name: New 96 m² (1,050 ft²) Stainless Steel 316 Plate and Frame Heat Exchanger
Brand: Schiller Apparatebau Gmbh
SKU: 232793

New 6.5 m² (70 ft²) Stainless Steel 316 Plate and Frame Heat Exchanger

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Schiller Apparatebau Gmbh

Condition: New

Material: Stainless Steel 316

Heat Transfer Surface Area: 6.5 m² (70 ft²)

Nozzle Schedule: Openings: Plate side - 2-200mm, shell side - 1-50mm (top head), 1-50mm (bottom head), 1-40mm (bottom head)

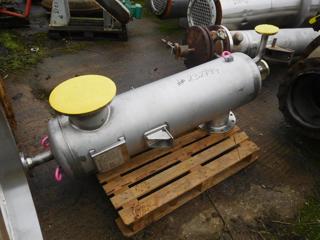

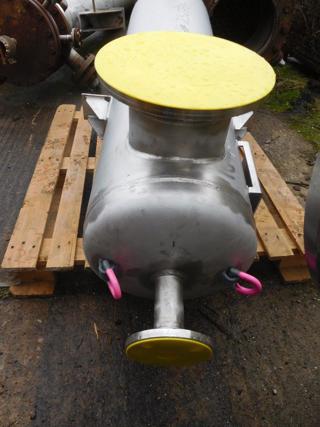

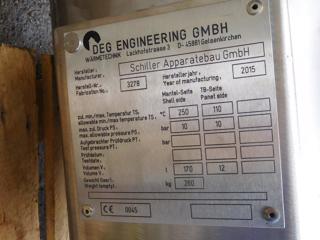

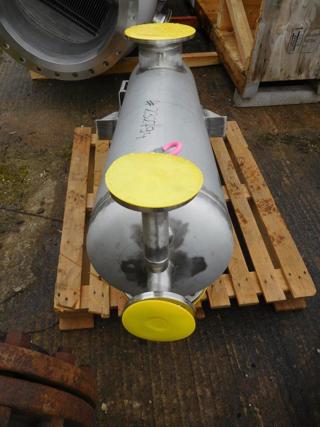

Vertical thermo panel bank condenser / heat exchanger (plate pack in a cylindrical shell) Pressure plate side: 10 bar @ 110 degrees C (12 liter) Shell side: 10 bar @ 250 degrees C (85 liter) (12) 316L (1.4404) stainless steel Thermo plates, 316L (1.4404) stainless steel shell, weld dished heads,

Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 110 °C (230 °F). Housing Material: Stainless Steel 316. Number of Plates: 12.

47.5 m² (512 ft²) Stainless Steel 316 Plate and Frame Heat Exchanger

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: GEA Ahlborn GmbH Co KG/Germany

Model: N40

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 47.5 m² (512 ft²)

Cold-side Pressure: 12 bar (174 psi)

design BC-12 0.45 squaremeter heat exchange surface per plate, (plate package min 851mm, max 870mm), plate package is 868mm 321 (1.4541) stainless steel frame

Cold-side Temperature: 115 °C (239 °F). Hot-side Pressure: 12 bar (174 psi). Hot-side Temperature: 115 °C (239 °F). Housing Material: Stainless Steel 321. Number of Plates: 105.
